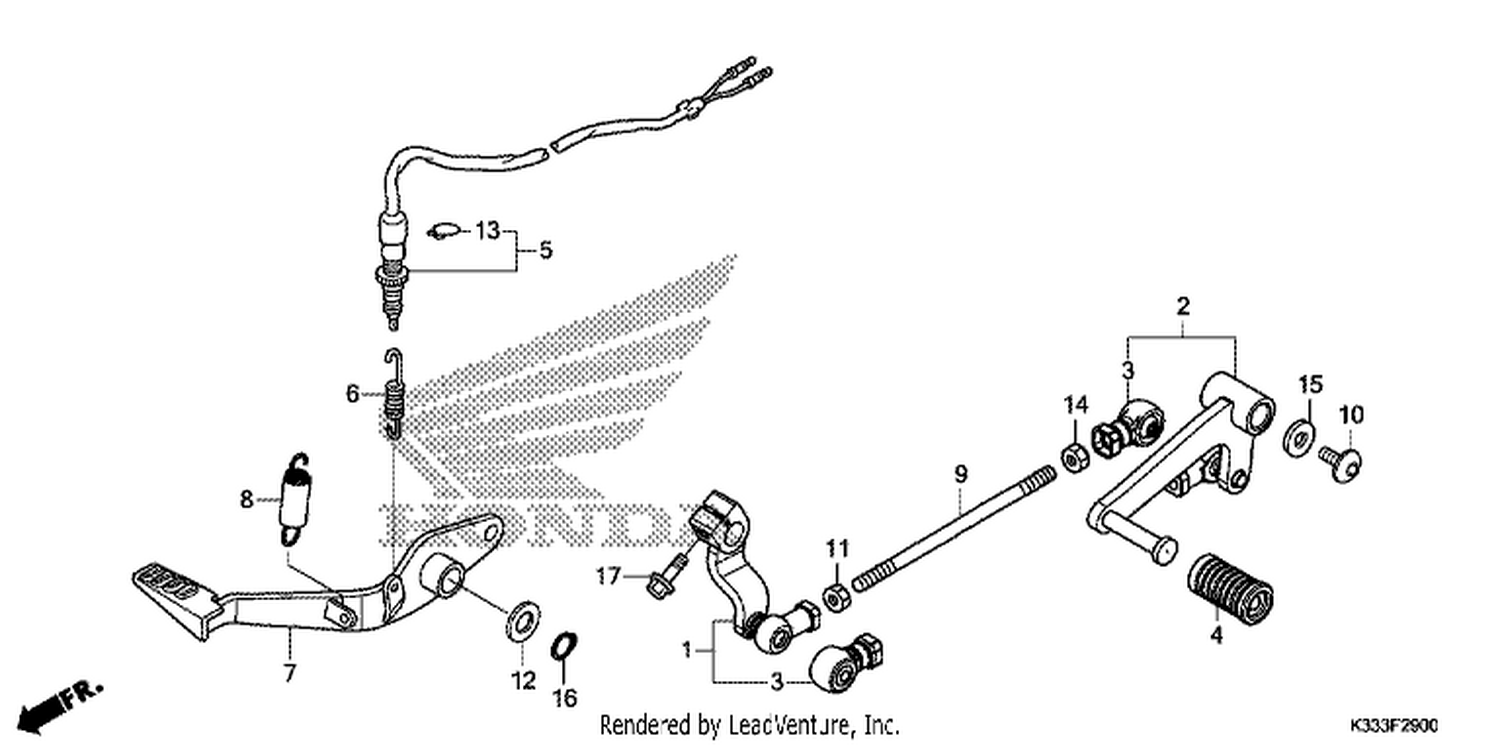

| Ref | Part Number | Description |
|---|
| 1 |
24710KYJ000 |
ARM COMP., GEAR CHANGE Price: Call Us |
| 2 |
24720KYJ000 |
PEDAL COMP., GEAR CHANGE Price: Call Us |
| 3 |
24724MBWD21 |
COVER, DUST Price: Call Us |
| 4 |
24781KR3770 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 5 |
35350KYJ901 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 6 |
35357HP0A00 |
SPRING, STOP SWITCH Price: Call Us |
| 7 |
46500KYJ900 |
PEDAL COMP., RR. BRAKE Price: Call Us |
| 8 |
46513KYJ900 |
SPRING ASSY., BRAKE PEDAL Price: Call Us |
| 9 |
90105KYJ900 |
BOLT, TIE ROD Price: Call Us |
| 10 |
90132KPPT00 |
SCREW, PAN, 6X10 Price: Call Us |
| 11 |
90301KYJ900 |
NUT, SPECIAL, 6MM (LEFT HAND THREAD) Price: Call Us |
| 12 |
90557230000 |
WASHER, 15.2X25 Price: Call Us |
| 13 |
90601KAF003 |
CLIP, SWITCH COVER Price: Call Us |
| 14 |
94001060000S |
NUT, HEX., 6MM Price: Call Us |
| 15 |
9410306700 |
WASHER, PLAIN, 6MM Price: Call Us |
| 16 |
9451115000 |
CIRCLIP, EXTERNAL, 15MM Price: Call Us |
