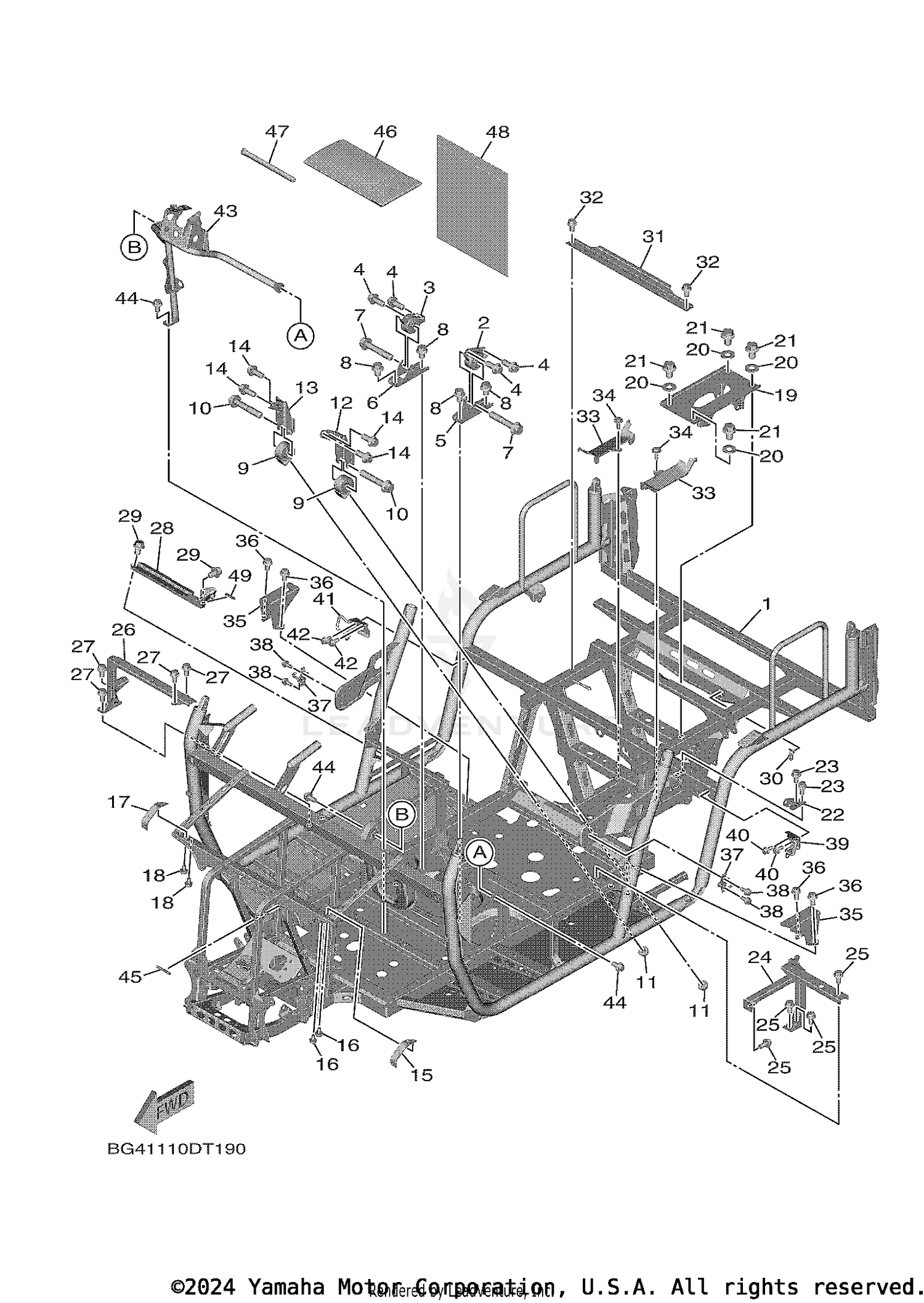

| Ref | Part Number | Description |
|---|
| 1 |
BG4-F11A0-19-00 |
FRAME SET This part replaces BG4-F1110-00-00. Price: $3,664.99 |
| 2 |
BG4-21410-00-00 |
ENGINE BRACKET COMP. Price: $80.99 |
| 3 |
BG4-21420-00-00 |
ENGINE BRACKET COMP. 2 Price: $80.99 |
| 4 |
95817-10025-00 |
BOLT, FLANGE This part replaces 95812-10025-00. Price: $9.49 |
| 5 |
BG4-F161F-00-00 |
BRACKET 5 Price: $13.49 |
| 6 |
BG4-F161A-00-00 |
BRACKET 3 Price: $8.99 |
| 7 |
95817-12065-00 |
BOLT, FLANGE This part replaces 95812-12065-00. Price: $5.49 |
| 8 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 9 |
BG4-21490-00-00 |
BRACKET, ENGINE 1 Price: $81.99 |
| 10 |
95817-12065-00 |
BOLT, FLANGE This part replaces 95812-12065-00. Price: $5.49 |
| 11 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 12 |
BG4-F1283-00-00 |
SUPPORT, ENGINE Price: $15.99 |
| 13 |
BG4-F1284-00-00 |
SUPT., ENGINE 2 Price: $15.99 |
| 14 |
95817-10025-00 |
BOLT, FLANGE This part replaces 95812-10025-00. Price: $9.49 |
| 15 |
BG4-F172K-00-00 |
BRACKET 1 Price: $4.95 |
| 16 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 17 |
BG4-F172K-00-00 |
BRACKET 1 Price: $4.95 |
| 18 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 19 |
BG4-F831T-00-00 |
STAY, SUPPORT 1 Price: $42.99 |
| 20 |
90201-12039-00 |
WASHER, PLATE Price: $3.99 |
| 21 |
95812-12020-00 |
BOLT, FLANGE Price: $9.49 |
| 22 |
BG4-F1981-00-00 |
BRKT., RR. AXLE Price: $4.50 |
| 23 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 24 |
BG4-F1143-10-00 |
LUG, SEAT RAIL LH. This part replaces BG4-F1143-01-00. Price: $41.99 |
| 25 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 26 |
BG4-F255G-01-00 |
MEMBER, SEAT SUPPORT Price: $36.99 |
| 27 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 28 |
BG4-F287M-00-00 |
BRACKET, LOCK 2 Price: $20.99 |
| 29 |
95817-10020-00 |
BOLT, FLANGE This part replaces 95812-10020-00. Price: $9.49 |
| 30 |
BG4-F1446-00-00 |
STAY, MUFFLER 2 Price: $2.15 |
| 31 |
BG4-F834V-00-00 |
PROTECTOR 1 Price: $72.99 |
| 32 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 33 |
2MB-F198J-00-00 |
COVER 3 Price: $4.90 |
| 34 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
| 35 |
BG4-F144H-00-00 |
BRACKET, FOOTREST 3 Price: $188.99 |
| 36 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 37 |
BG4-F1331-00-00 |
HOOK, SIDE COVER 1 Price: $9.49 |
| 38 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 39 |
BG4-F1333-00-00 |
HOOK, SIDE COVER 3 Price: $227.99 |
| 40 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 41 |
BG4-F1334-00-00 |
HOOK, SIDE COVER 4 Price: $188.99 |
| 42 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 43 |
BG4-F1986-01-00 |
REINFORCEMENT, FRAME 1 Price: $704.99 |
| 44 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 45 |
31A-24188-01-00 |
MOLD, FUEL TANK Price: $13.99 |
| 46 |
BG4-F8100-00-00 |
TOOL KIT Price: $24.99 |
| 47 |
1XD-F811A-00-00 |
GAUGE, AIR Price: $7.49 |
| 48 |
1P0-F8186-01-00 |
POUCH Price: $2.90 |
