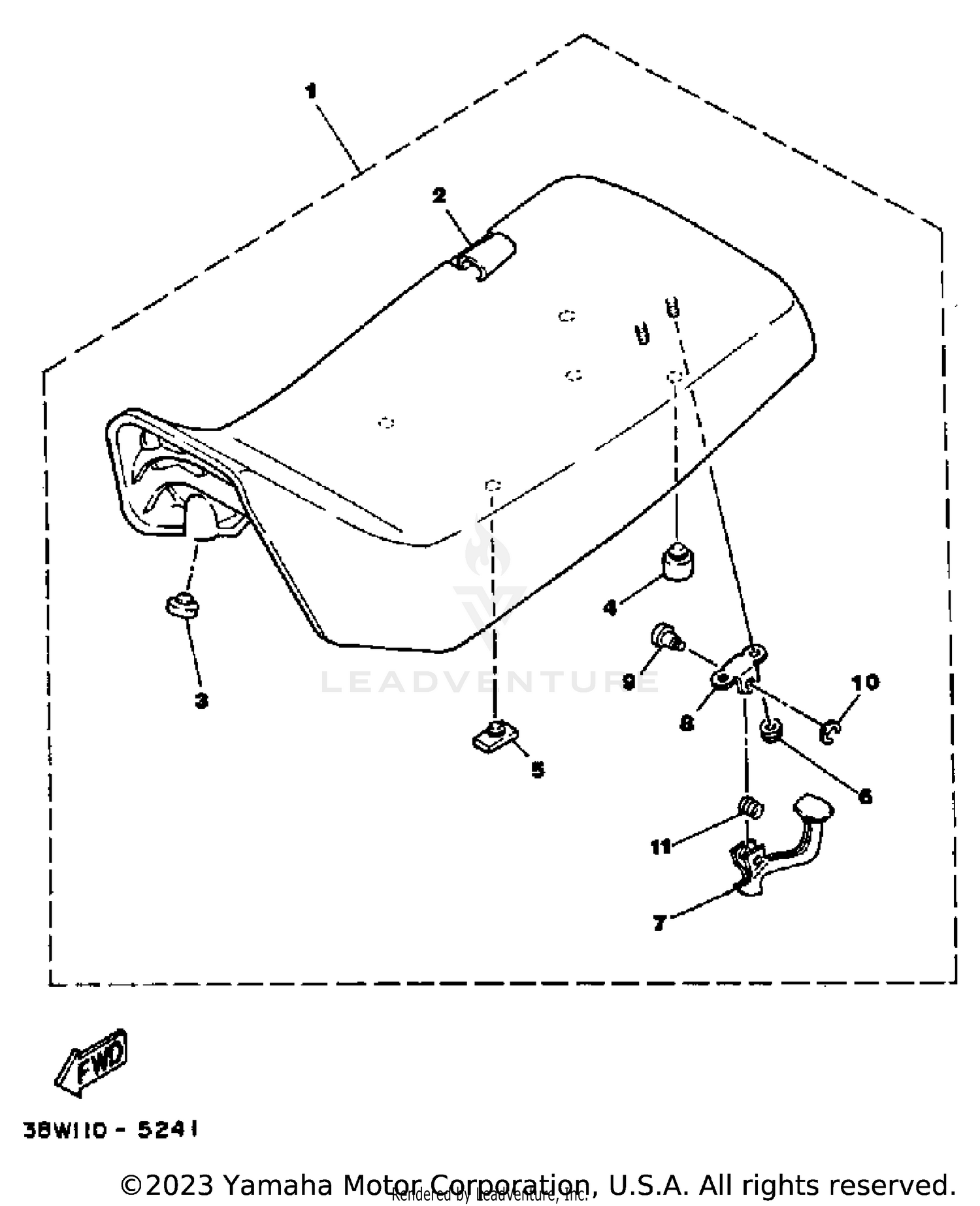

SEAT
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 22W-24741-00-00 | PAD, SEAT Price: $9.49 |
| 4 | 371-27114-00-00 | STOPPER, MAIN STAND Price: $8.49 |
| 5 | 509-24724-00-00 | DAMPER, SEAT Price: $11.99 |
| 6 | 95780-06500-00 | NUT, FLANGE This part replaces 95701-06500-00. Price: $2.95 |
| 7 | 3GD-24776-00-00 | LEVER, SEAT Price: $46.99 |
| 8 | 4K0-24775-00-00 | BRACKET, SEAT LEVER Price: $7.49 |
| 9 | 4K0-24774-01-00 | PIN Price: $17.99 |
| 10 | 99080-04600-00 | CLIP This part replaces 93430-04002-00. Price: $1.99 |
