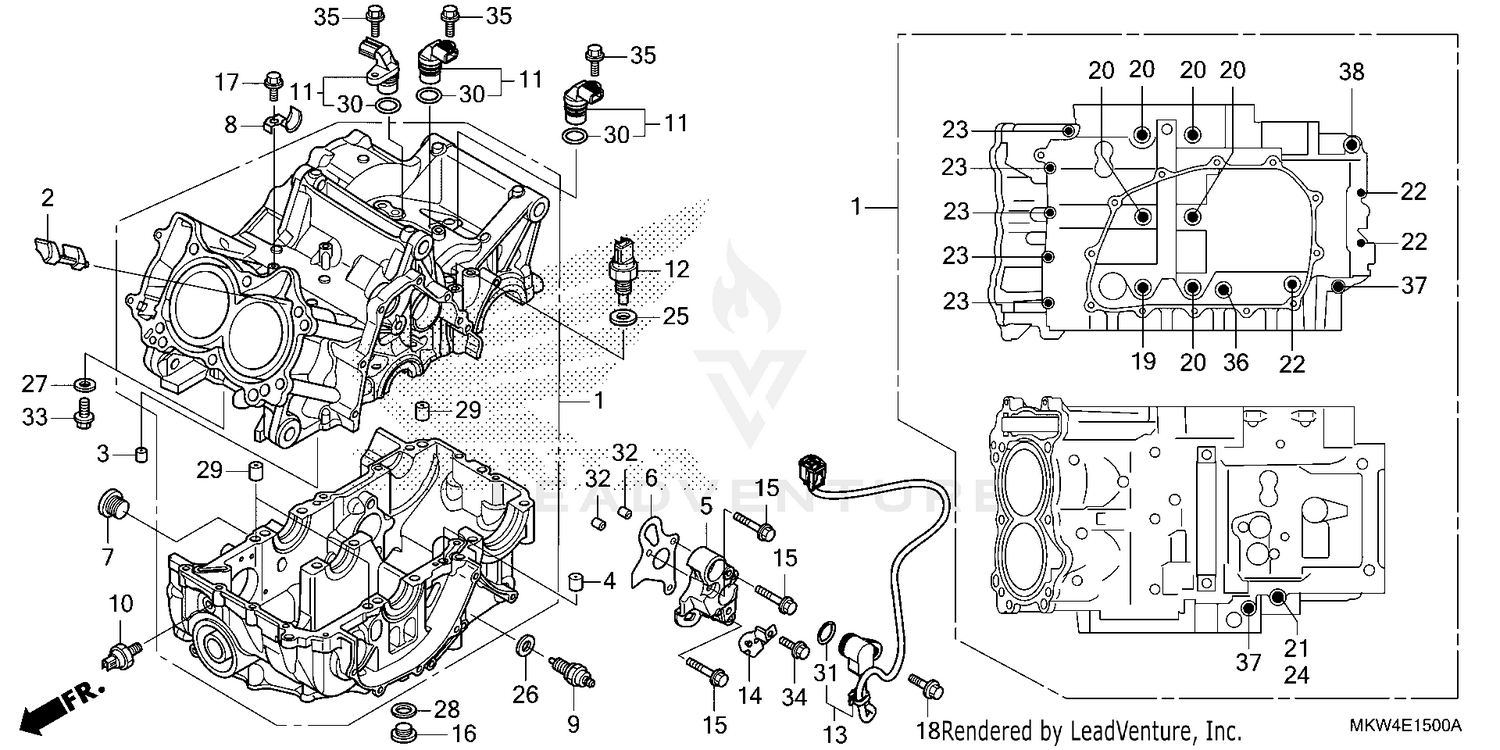

| Ref | Part Number | Description |
|---|
| 1 |
11000-MKW-D00 |
CRANKCASE SET Price: $2,426.77 |
| 2 |
11103-MGS-D31 |
PLATE, PARTITION Price: $6.53 |
| 3 |
11207-MFL-000 |
ORIFICE (1.1MM) Price: $4.29 |
| 4 |
11207-MGS-D30 |
ORIFICE (1.5MM) Price: $4.73 |
| 5 |
11521-MJL-D30 |
HOLDER, ANGLE SENSOR Price: $49.56 |
| 6 |
11522-MJL-D31 |
GASKET, CHANGE SWITCH Price: $8.15 |
| 7 |
12208-PR3-000 |
BOLT, SEALING (20MM) Price: $9.55 |
| 8 |
17640-MGS-D30 |
STAY, FUEL HOSE Price: $5.18 |
| 9 |
35600-MFJ-D01 |
SWITCH ASSY., NEUTRAL Price: $25.64 |
| 10 |
37241-RNA-A01 |
SWITCH ASSY., OIL PRESSURE Price: $91.12 |
| 13 |
38800-MKW-D01 |
SENSOR ASSY., ANGLE (350DEGREE) Price: $209.85 |
| 14 |
38815-MJL-D10 |
STAY, ANGLE SENSOR WIRE Price: $3.75 |
| 15 |
90001-MGS-D20 |
BOLT, FLANGE (6X28) Price: $2.24 |
| 16 |
90002-RGA-000 |
BOLT, SEALING (12X8) Price: $6.67 |
| 17 |
90004-MGS-D30 |
BOLT, FLANGE (6X16) Price: $1.15 |
| 18 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 19 |
90015-MGS-D31 |
BOLT, FLANGE (9X150) Price: $15.09 |
| 20 |
90016-MFA-D01 |
BOLT, FLANGE (9X125) Price: $5.49 |
| 21 |
90021-MGS-D30 |
BOLT, FLANGE (8X100) Price: $3.82 |
| 22 |
90021-MJL-D30 |
BOLT, SPECIAL (6X45) Price: $3.73 |
| 23 |
90022-MJL-D30 |
BOLT, SPECIAL (6X32) Price: $3.15 |
| 24 |
90442-028-000 |
WASHER, SEALING (8MM) Price: $2.02 |
| 26 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 27 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 28 |
90545-KF0-000 |
WASHER (12MM) Price: $4.09 |
| 29 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 31 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 32 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 33 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 34 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 36 |
95701-08045-00 |
BOLT, FLANGE (8X45) Price: $1.67 |
| 37 |
95701-08070-00 |
BOLT, FLANGE (8X70) Price: $3.02 |
