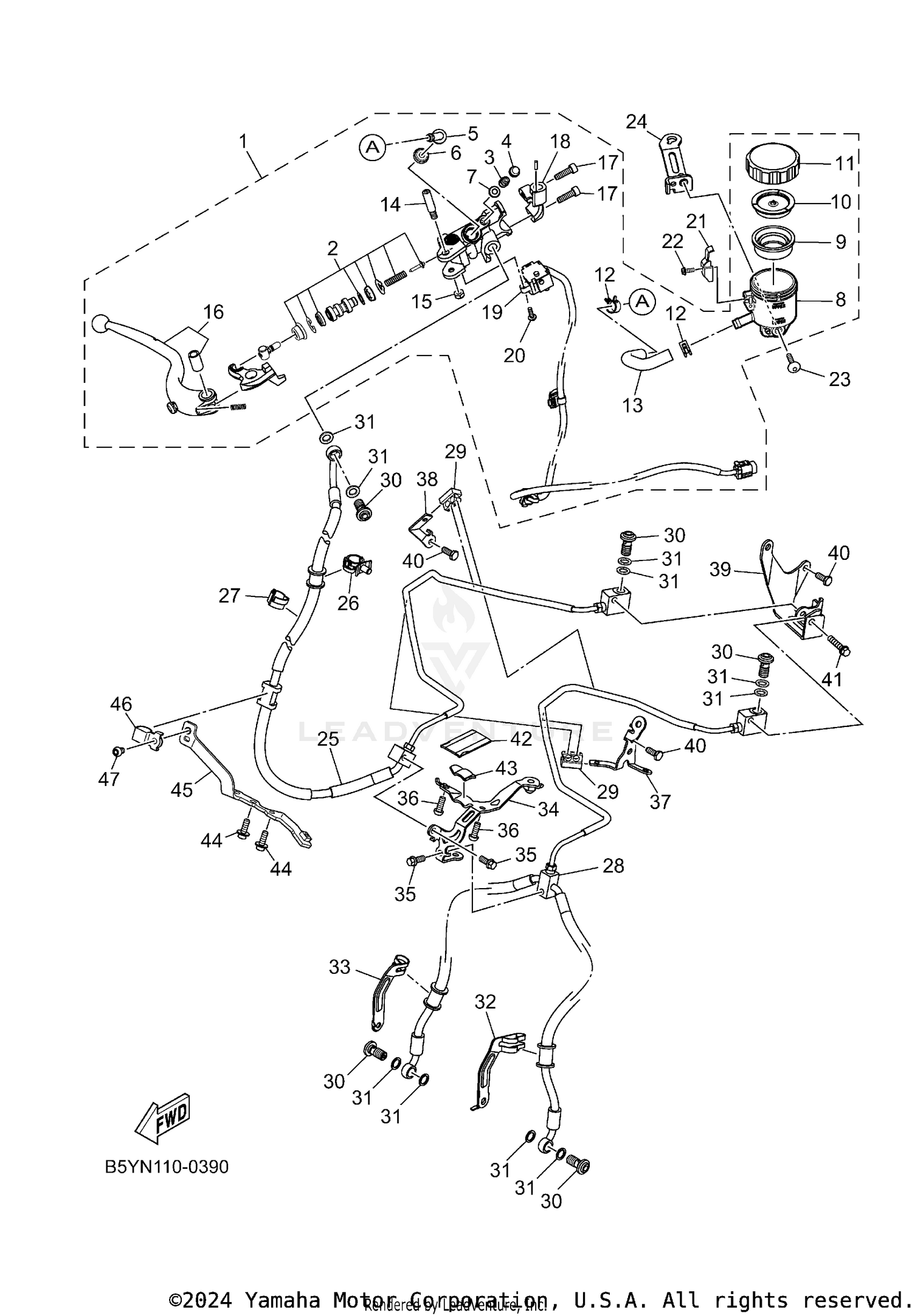

| Ref | Part Number | Description |
|---|
| 1 |
B5Y-2583T-01-00 |
MASTER CYLINDER ASSY Price: $657.99 |
| 3 |
3YK-25824-00-00 |
SCREW, BLEED Price: $9.49 |
| 4 |
3YK-25825-00-00 |
CAP Price: $12.99 |
| 6 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 7 |
5VY-25975-00-00 |
SEAL 1 Price: $2.50 |
| 8 |
BAM-25894-00-00 |
TANK, RESERVOIR Price: $69.99 |
| 9 |
5VY-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $35.99 |
| 10 |
5VY-25855-00-00 |
BUSH, DIAPHRAGM Price: $5.99 |
| 11 |
5VY-25852-00-00 |
CAP, RESERVOIR Price: $19.99 |
| 12 |
90467-120A3-00 |
CLIP Price: $8.49 |
| 15 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 16 |
BEB-W2616-00-00 |
LEVER SET Price: $60.99 |
| 17 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 20 |
97602-04214-00 |
SCREW, PAN HEAD WITH WASHER Price: $6.49 |
| 21 |
5VY-2589G-00-00 |
HOLDER Price: $9.49 |
| 22 |
5VY-2589H-00-00 |
SCREW Price: $8.49 |
| 23 |
90111-05010-00 |
BOLT Price: $1.95 |
| 24 |
B5Y-2629K-00-00 |
STAY Price: $41.99 |
| 25 |
B5Y-2584A-00-00 |
BRAKE HOSE ASSY Price: $203.99 |
| 26 |
90464-14013-00 |
CLAMP Price: $3.85 |
| 27 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 28 |
B5Y-2584B-00-00 |
HOSE, BRAKE Price: $260.99 |
| 29 |
90464-07014-00 |
CLAMP Price: $4.00 |
| 30 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 31 |
90430-10005-00 |
GASKET Price: $9.49 |
| 32 |
2CR-25875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $14.49 |
| 33 |
2CR-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $12.99 |
| 34 |
B5Y-2612E-00-00 |
BRACKET Price: $36.99 |
| 35 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 36 |
95E37-06014-00 |
BOLT, FLANGE DEEP Price: $0.40 |
| 37 |
B5Y-2612K-00-00 |
BRKT 2 Price: $12.49 |
| 38 |
2CR-2612L-00-00 |
BRACKET 3 Price: $5.99 |
| 39 |
B5Y-2612M-00-00 |
BRACKET 4 Price: $36.99 |
| 40 |
90101-06064-00 |
BOLT Price: $1.35 |
| 41 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 42 |
5H0-8235Y-M0-00 |
DAMPER This part replaces 3YL-12232-00-00. Price: $7.49 |
| 43 |
2CR-2622F-00-00 |
DAMPER, LOCATING 1 Price: $1.60 |
| 44 |
90110-06107-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06108-00. Price: $3.25 |
| 45 |
B5Y-23377-00-00 |
BRACKET, HORN Price: $30.99 |
| 46 |
90461-10008-00 |
CLAMP Price: $9.49 |
