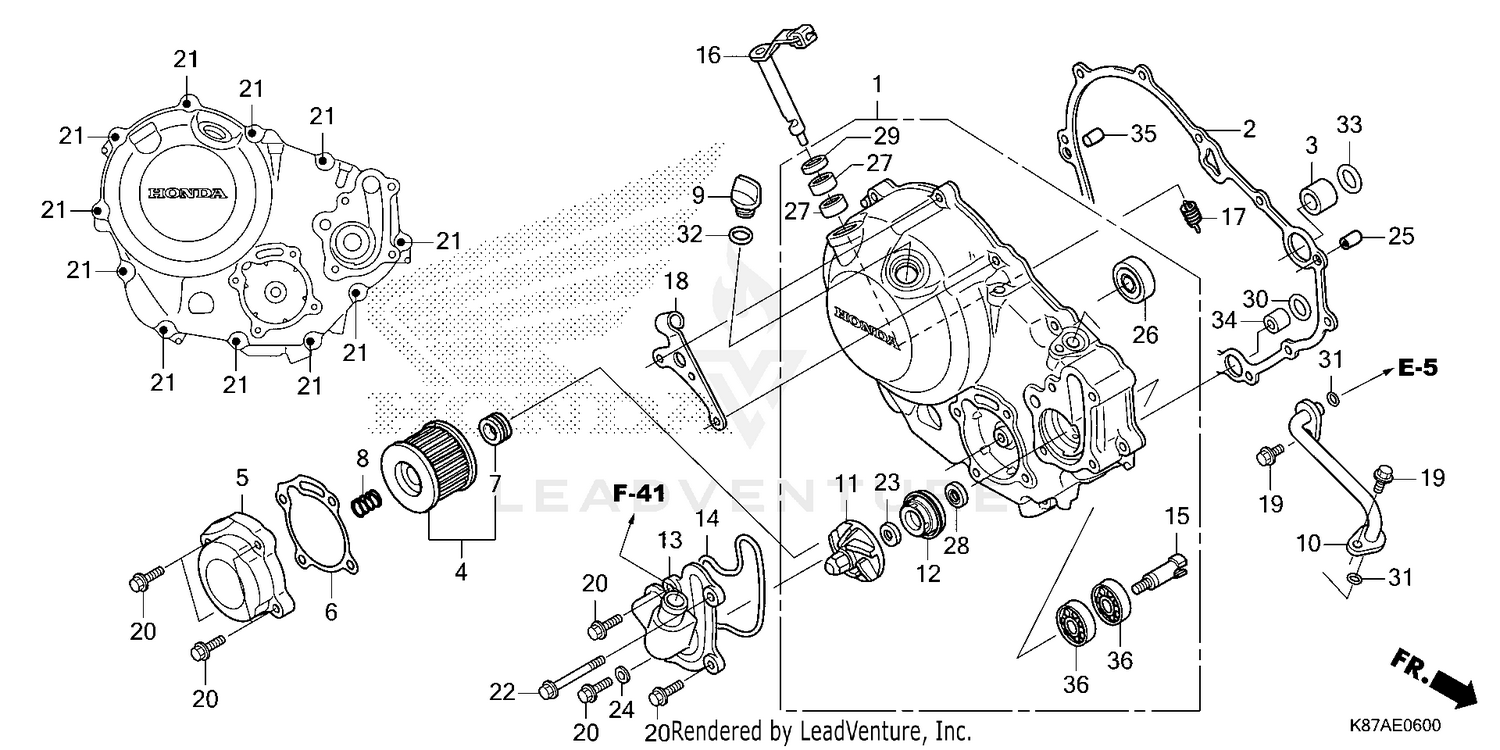

| Ref | Part Number | Description |
|---|
| 1 |
11300-K0A-EB0 |
COVER, R. CRANKCASE Price: $110.11 |
| 2 |
11394-K87-A30 |
GASKET, R. CRANKCASE COVER Price: $12.00 |
| 3 |
15326-KT7-000 |
COLLAR, OIL PASSAGE (18MM) Price: $3.73 |
| 4 |
15410-K0A-DB1 |
ELEMENT, OIL FILTER Price: $3.48 |
| 5 |
15411-K0A-EB0 |
COVER, OIL FILTER Price: $6.09 |
| 6 |
15412-KYJ-901 |
GASKET, OIL FILTER COVER Price: $6.89 |
| 7 |
15413-MC8-000 |
RUBBER, FILTER Price: $4.20 |
| 8 |
15414-KF0-000 |
SPRING, OIL FILTER ELEMENT SETTING Price: $5.33 |
| 9 |
15611-KA4-710 |
CAP, OIL FILLER Price: $17.45 |
| 10 |
19120-K0A-DB0 |
PIPE, WATER Price: $3.47 |
| 11 |
19215-KGH-900 |
IMPELLER, WATER PUMP Price: $6.33 |
| 12 |
19217-P72-013 |
SEAL, MECHANICAL Price: $49.25 |
| 13 |
19220-K0A-EB0 |
COVER, WATER PUMP Price: $7.00 |
| 14 |
19226-KYJ-710 |
GASKET Price: $0.38 |
| 15 |
19241-KZZ-D20 |
SHAFT, WATER PUMP Price: $14.60 |
| 16 |
22810-KYJ-900 |
LEVER, CLUTCH Price: $70.05 |
| 17 |
22815-KM7-700 |
SPRING, CLUTCH LEVER Price: $5.24 |
| 18 |
22821-K2Y-A00 |
RECEIVER Price: $2.11 |
| 19 |
90010-KYJ-900 |
BOLT, FLANGE (6X16) (NSHF) Price: $0.55 |
| 20 |
90012-KYJ-900 |
BOLT, FLANGE (6X25) (NSHF) Price: $0.55 |
| 21 |
90012-K64-N00 |
BOLT, FLANGE (6X35) Price: $0.36 |
| 22 |
90015-KYJ-900 |
BOLT, FLANGE (6X65) (NSHF) Price: $0.98 |
| 23 |
90423-KJ9-000 |
WASHER (7.2X13X1.2) Price: $2.67 |
| 24 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 25 |
90702-KFM-900 |
PIN, DOWEL (8X12) Price: $0.76 |
| 26 |
91009-KYJ-711 |
BRG,BALL RADIAL 6 Price: $28.02 |
| 27 |
91101-PZ9-000 |
BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005. Price: $10.51 |
| 28 |
91202-KTW-901 |
OIL SEAL (12X26X5) Price: $12.67 |
| 29 |
91204-KK0-003 |
OIL SEAL (12X18X5) (ARAI) Price: $6.35 |
| 30 |
91301-KYJ-710 |
O-RING (11.8X1.9) Price: $0.15 |
| 31 |
91302-KYJ-710 |
O-RING (9.8X2.4) Price: $0.11 |
| 32 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 33 |
91322-K0A-DB0 |
O-RING (17.8X1.9) Price: $0.76 |
| 34 |
94301-12160 |
PIN A, DOWEL (12X16) Price: $2.58 |
| 35 |
94302-08140 |
PIN B, DOWEL (8X14) Price: $2.35 |
