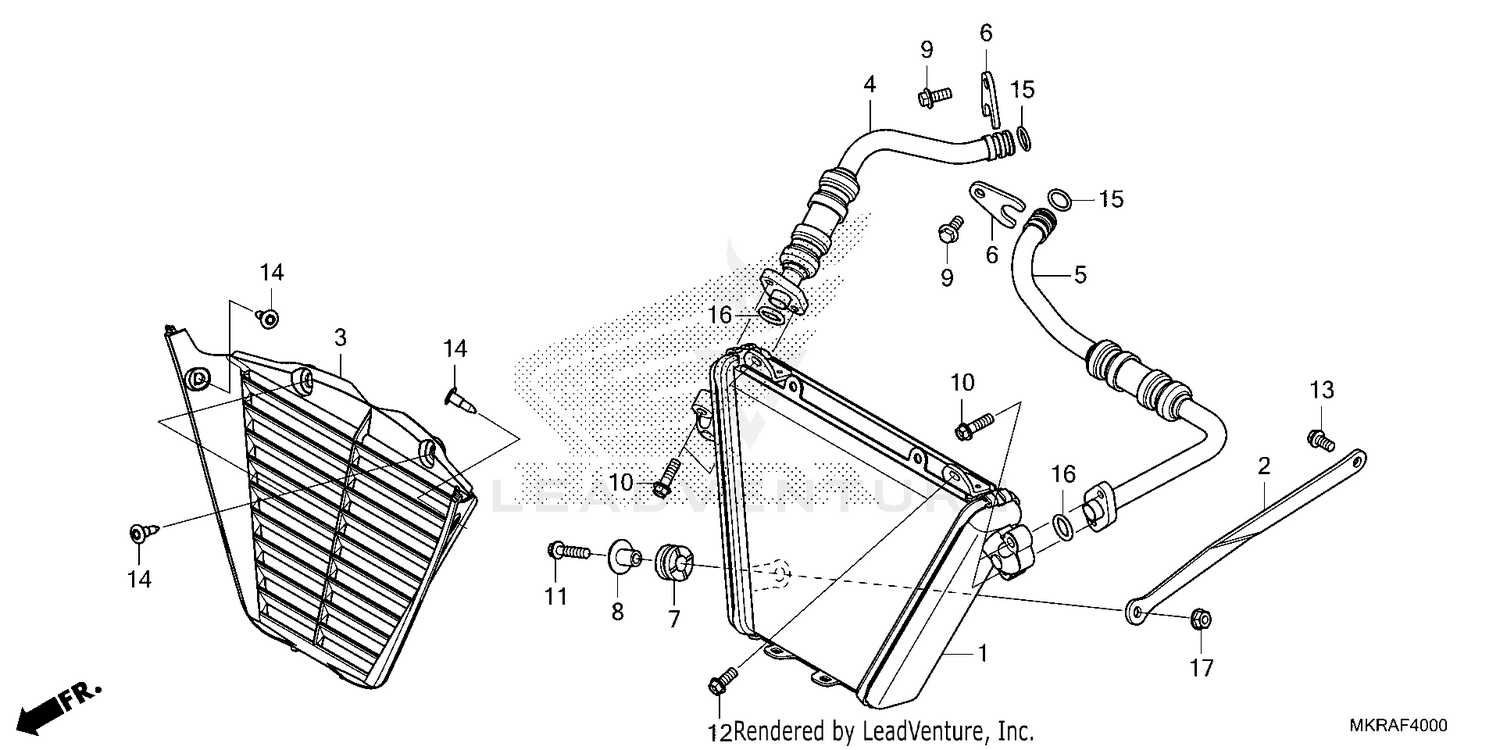

| Ref | Part Number | Description |
|---|
| 1 |
15600-MKR-D11 |
COOLER, OIL Price: $426.60 |
| 2 |
15611-MKR-D10 |
STAY, OIL COOLER Price: $24.87 |
| 3 |
15640-MKR-D10 |
GRILLE, OIL COOLER Price: $23.20 |
| 4 |
15650-MKR-D10 |
PIPE, OIL COOLER IN. Price: $69.20 |
| 5 |
15660-MKR-D10 |
PIPE, OIL COOLER OUTLET Price: $88.91 |
| 6 |
15702-MKR-D10 |
PLATE, OIL PIPE Price: $18.05 |
| 7 |
19051-KA3-830 |
RUBBER, RADIATOR MOUNTING Price: $4.16 |
| 8 |
19052-MAC-680 |
COLLAR, RADIATOR MOUNTING Price: $6.45 |
| 9 |
90004-GHB-620 |
BOLT, FLANGE (6X14) (NSHF) Price: $4.29 |
| 10 |
90020-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.65 |
| 11 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 12 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 13 |
90030-GHB-640 |
BOLT, FLANGE (6X16) Price: $2.65 |
| 14 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 15 |
91305-MGC-003 |
O-RING (11.9X2.2) Price: $3.29 |
| 16 |
91314-MCF-000 |
O-RING (12X3) (Honda Code 6431670) Price: $3.49 |
