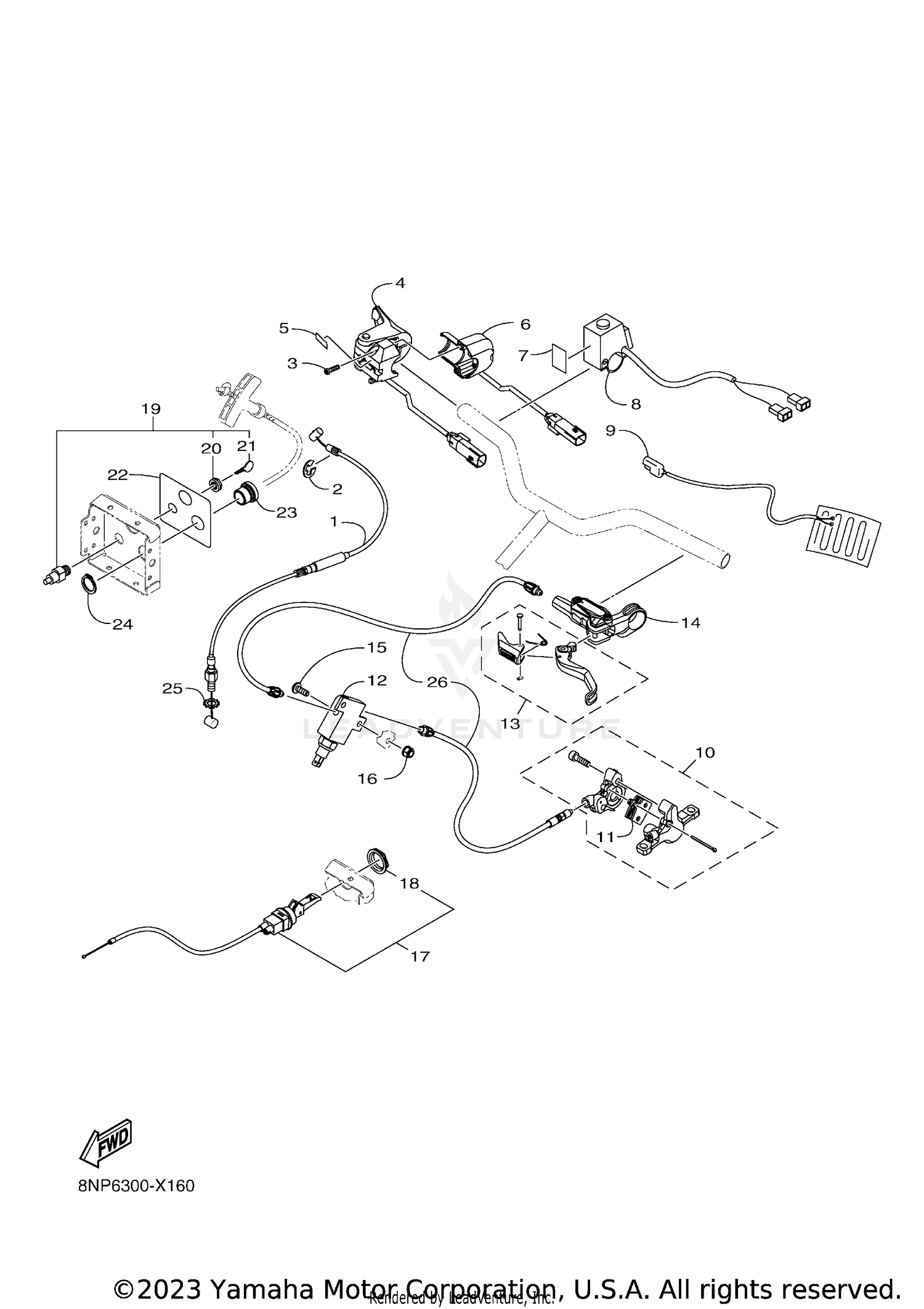

| Ref | Part Number | Description |
|---|
| 1 |
8NP-F6311-00-00 |
WIRE, THROTTLE 1 Price: $133.99 |
| 2 |
8JM-RAH02-00-00 |
CIRCLIP, 3 Price: $2.15 |
| 3 |
8ML-RA286-00-00 |
SCREW, 8-18X0.875 Price: $4.20 |
| 4 |
8NP-H2720-00-00 |
LEVER HOLDER ASSY (RIGHT) Price: $95.99 |
| 5 |
8NV-H252U-00-00 |
COVER Price: $3.65 |
| 6 |
8NP-H2710-00-00 |
LEVER HOLDER ASSY (LEFT) Price: $122.99 |
| 7 |
8JM-H2108-00-00 |
LABEL Price: $5.49 |
| 8 |
8JM-H2575-00-00 |
ENGINE STOP SWITCH ASSY Price: $62.99 |
| 9 |
8MV-F626A-00-00 |
GRIP, WARMER Price: $56.99 |
| 10 |
8ML-F580U-00-00 |
CALIPER ASSY (RIGHT) Price: $163.99 |
| 11 |
8ML-F5811-00-00 |
PAD, CALIPER 2 Price: $93.99 |
| 12 |
8ML-H2530-00-00 |
STOP SWITCH ASSY Price: $154.99 |
| 13 |
8ML-F610A-00-00 |
BRAKE LEVER SET Price: $82.99 |
| 14 |
8ML-F583T-00-00 |
MASTER CYLINDER ASSY Price: $192.99 |
| 15 |
8JP-RA256-00-00 |
SCREW, M6X1.0X16 Price: $0.60 |
| 16 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 17 |
8NP-H8147-00-00 |
CABLE 2 Price: $35.99 |
| 18 |
8JM-RA310-00-00 |
NUT, PLASTIC M24-1.5 Price: $2.80 |
| 19 |
8NC-H2510-00-00 |
MAIN SWITCH ASSY Price: $41.99 |
| 20 |
8JM-RA317-00-00 |
NUT, PLASTIC 5/8-32 Price: $3.10 |
| 21 |
8JM-H2511-00-00 |
KEY, MAIN SWITCH Price: $15.49 |
| 22 |
8NP-H2377-00-00 |
LABEL Price: $34.99 |
| 23 |
8ML-F2184-00-00 |
BUSH Price: $20.99 |
| 24 |
8ML-RAH00-00-00 |
CIRCLIP, 1 Price: $2.65 |
| 25 |
8ND-RA407-00-00 |
WASHER, TOOTHED LO Price: $1.90 |
