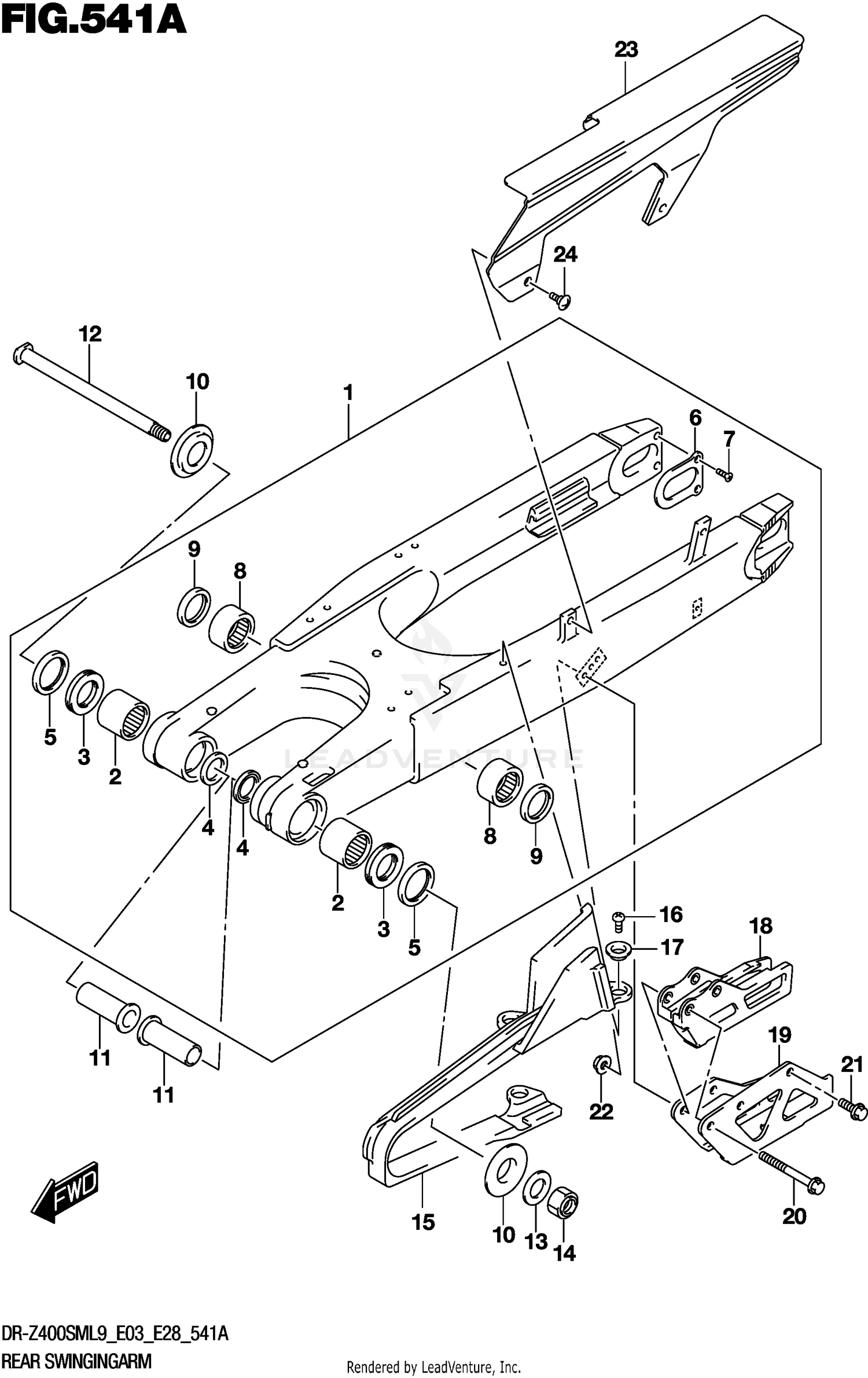

REAR SWINGINGARM
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61000-29F71 | SWINGINGARM ASSY RR This part replaces 61000-29F70. Price: $2,092.99 |
| 2 | 09263-22017 | BEARING (22X29X30) Price: $27.50 |
| 3 | 09263-22064 | BEARING (22X35X2) Price: $29.11 |
| 5 | 61262-36E00 | SEAL,RR SWGARM PIVOT OUTER (2 Price: $8.80 |
| 7 | 09120-05003 | SCREW (5X10) Price: $1.99 |
| 10 | 61250-44E00 | SPACER,SWINGINGARM PIVOT OUTE Price: $21.14 |
| 11 | 61252-36E00 | SPACER SWGARM PIVOT INNER Price: $58.24 |
| 12 | 61211-29F00 | SHAFT RR SWINGINGARM PIVOT Price: $88.59 |
| 13 | 08322-0116B | WASHER Price: $2.85 |
| 14 | 09159-16007 | NUT Price: $15.35 |
| 15 | 61273-29F20 | BUFFER CHAIN TOUCH DEFENSE Price: $81.70 |
| 16 | 02112-0508A | SCREW Price: $1.73 |
| 17 | 09169-05022 | WASHER Price: $4.33 |
| 18 | 61341-35G00 | GUIDE,CHAIN Price: $59.36 |
| 19 | 61342-37F00 | PLATE,CHAIN GUIDE Price: $69.62 |
| 20 | 01547-0650A | BOLT Price: $2.83 |
| 21 | 01547-0612A | BOLT Price: $2.45 |
| 22 | 08319-3106A | NUT Price: $2.45 |
| 23 | 61310-34E00 | CASE,CHAIN Price: $102.31 |
