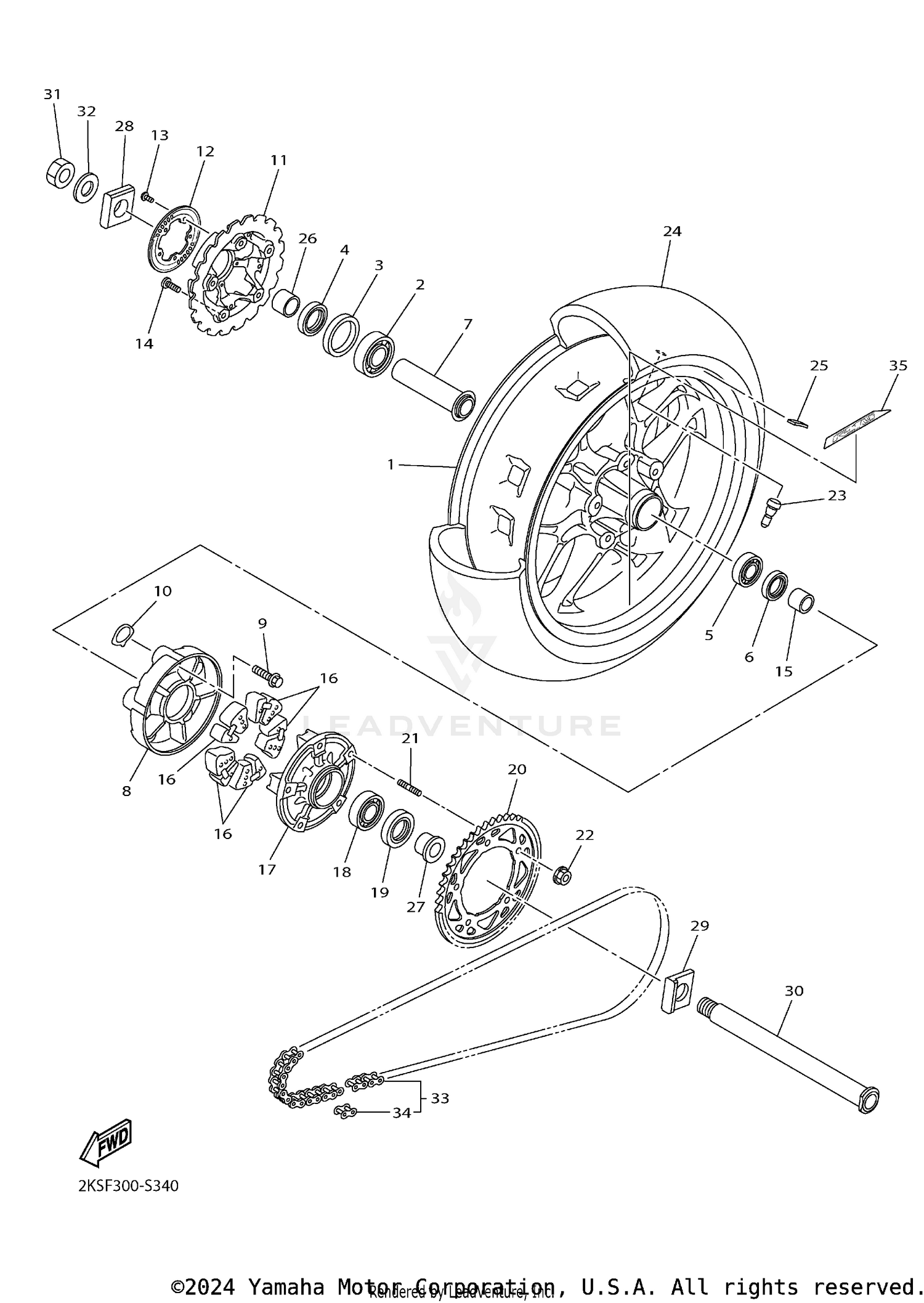

| Ref | Part Number | Description |
|---|
| 2 |
93306-27802-00 |
BEARING Price: $77.99 |
| 3 |
2CR-2538E-00-00 |
NUT, ADJUSTING Price: $63.99 |
| 4 |
93106-40001-00 |
OIL SEAL Price: $13.49 |
| 5 |
93306-07806-00 |
BEARING Price: $69.99 |
| 6 |
93106-35042-00 |
OIL SEAL Price: $17.49 |
| 7 |
2CR-253W0-00-00 |
SPACER ASSY Price: $47.99 |
| 8 |
2CR-2531F-00-00 |
HUB 2 Price: $237.99 |
| 9 |
90105-10450-00 |
BOLT, FLANGE Price: $4.05 |
| 10 |
2CR-25319-00-00 |
SEAL, HUB DUST Price: $4.30 |
| 11 |
2CR-2581A-00-00 |
PLATE, DISK Price: $217.99 |
| 12 |
1SD-2517G-00-00 |
ROTOR, SENSOR Price: $150.99 |
| 13 |
90149-05030-00 |
SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 14 |
90109-085G6-00 |
BOLT This part replaces 90111-08085-00. Price: $3.50 |
| 15 |
90387-28022-00 |
COLLAR Price: $25.99 |
| 16 |
2CR-25364-00-00 |
DAMPER Price: $15.49 |
| 17 |
2CR-25366-00-00 |
CLUTCH, HUB Price: $193.99 |
| 18 |
93306-20531-00 |
BEARING Price: $55.99 |
| 19 |
93106-40013-00 |
OIL SEAL Price: $16.49 |
| 20 |
2CR-25441-00-00 |
SPROCKET, DRIVEN (41T) Price: $97.99 |
| 21 |
90116-10048-00 |
BOLT, STUD Price: $29.99 |
| 22 |
90185-10011-00 |
NUT, SELF-LOCKING Price: $4.95 |
| 26 |
90387-28023-00 |
COLLAR Price: $28.99 |
| 27 |
90387-28024-00 |
COLLAR Price: $32.99 |
| 28 |
5VY-25388-00-00 |
PULLER, CHAIN 1 Price: $62.99 |
| 29 |
5VY-25389-01-00 |
PULLER, CHAIN 2 Price: $44.99 |
| 30 |
2CR-25381-00-00 |
AXLE, WHEEL Price: $78.99 |
| 31 |
90185-24007-00 |
NUT, SELF-LOCKING Price: $44.99 |
| 32 |
90201-25020-00 |
WASHER, PLATE Price: $9.49 |
| 33 |
94A40-15114-00 |
SET, CHAIN This part replaces 94582-40114-00. Price: $191.99 |
| 34 |
94682-5502R-00 |
JOINT, CHAIN This part replaces 94682-40031-00. Price: $11.49 |
