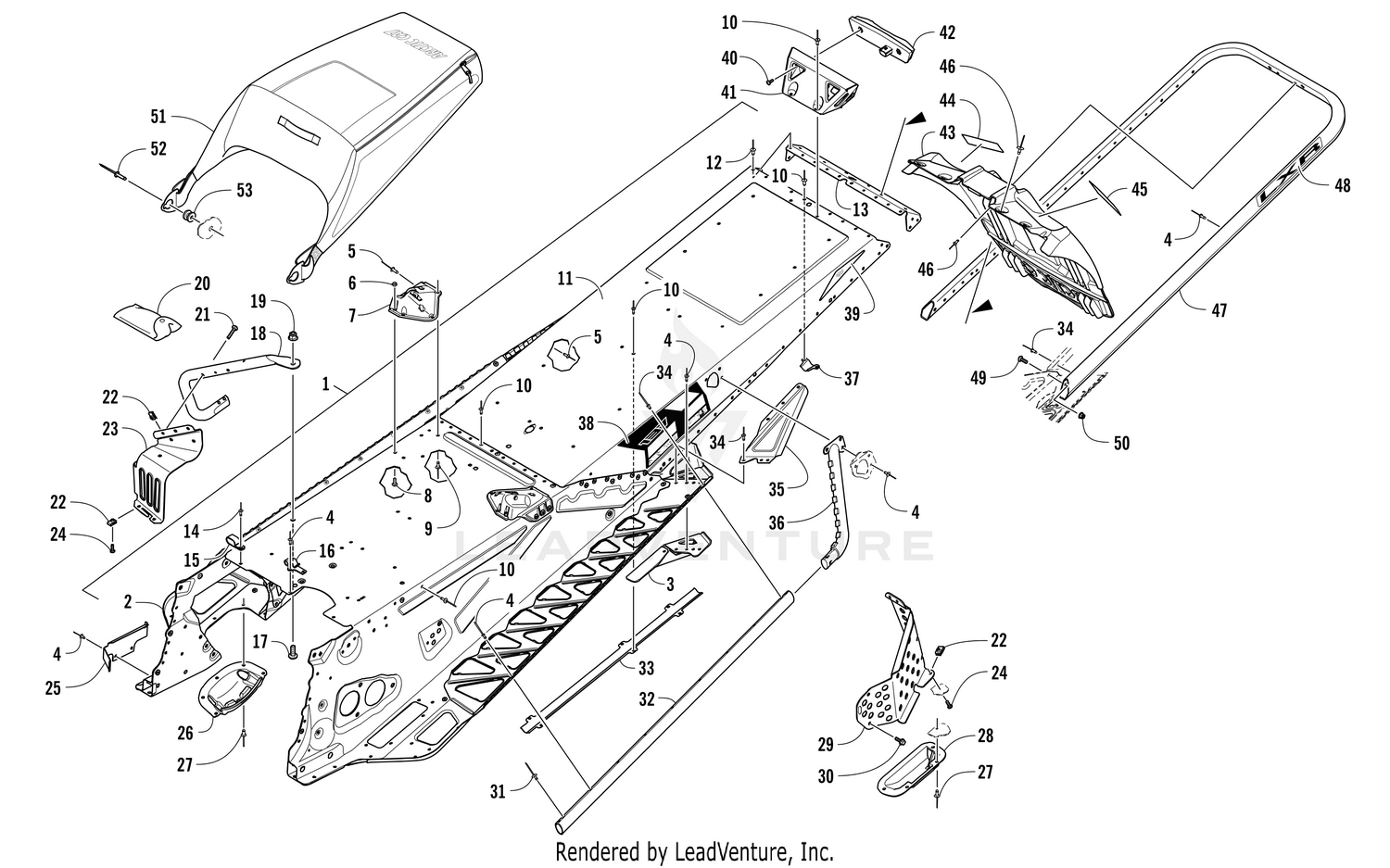

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104226]

TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104226]

Parts (52)

RefPart NumberDescription
3 1607-332 Bracket, Mounting - Suspension - Right Price: $20.56
3 1607-333 Bracket, Mounting - Suspension - Left Price: $20.56
4 8060-686 Rivet - Zinc Price: $0.46
5 1623-206 Rivet Price: $2.30
6 8422-502 Nut, Lock Price: $0.48
7 1707-644 Bracket, Mounting - Rear Spar - Right Price: $33.95
7 1707-645 Bracket, Mounting - Rear Spar - Left Price: $33.95
8 8476-512 Screw, Machine Price: $1.45
9 1623-257 Rivet Price: $2.30
10 8060-682 Rivet Price: $0.24
11 1607-251 Tunnel, Rear Price: $400.95
12 8060-484 Rivet Price: $0.46
13 1607-104 End Cap, Tunnel Price: $41.95
14 8061-686 Rivet Price: $1.08
15 1623-762 Clamp, Routing Price: $8.43
16 0645-709 Clip, Routing Price: $13.28
17 8476-820 Screw, Machine Price: $1.08
19 8427-802 Nut, Lock Price: $0.58
20 0744-087 Kit, Tool Price: $90.14
21 8468-535 Screw, Machine Price: $1.07
22 1623-637 Clip, U-Nut Price: $2.61
23 0607-996 Footrest - Right Price: $28.95
23 0607-997 Footrest - Left Price: $28.95
24 8470-516 Screw, Machine Price: $0.35
25 0608-705 Bracket, Routing - Oil Line Price: $14.49
26 1607-109 Protector, Chain Case Price: $5.90
27 8061-708 Rivet Price: $1.08
28 0607-351 Protector, Brake Disc Price: $13.28
29 1607-371 Shield, Brake Disc Price: $111.95
30 8408-613 Screw, Cap Price: $1.66
31 1623-130 Rivet Price: $1.80
32 1607-092 Roll, Tunnel - Right Price: $64.95
33 0630-309 Protector, Taillight Harness Price: $18.13
34 1623-241 Rivet Price: $2.05
35 1607-162 Gusset, Running Board - Right Price: $19.35
35 1607-163 Gusset, Running Board - Left Price: $19.35
36 1607-040 Gusset, Tunnel Roll - Right Price: $22.99
36 1607-041 Gusset, Tunnel Roll - Left Price: $22.99
37 0630-292 Protector, Taillight Harness Price: $16.92
38 3621-248 Decal, Tunnel - "137" - Right Price: $26.95
38 3621-249 Decal, Tunnel - "137" - Left Price: $26.95
40 8470-510 Screw, Machine Price: $0.71
41 0630-328 Bracket, Mounting - Taillight Price: $30.95
42 0609-898 Taillight, LED Price: $70.95
43 6606-394 Snowflap Price: $109.95
46 8061-706 Rivet Price: $1.07
47 2707-585 Bumper, Rear - White Price: $121.95
48 3621-245 Decal, Rear Bumper - "LXR" Price: $12.07
49 8476-620 Screw, Machine Price: $0.48
50 8427-602 Nut, Hex Price: $0.23
51 6606-600 Saddlebag Price: $242.95
52 8060-630 Rivet Price: $1.32
