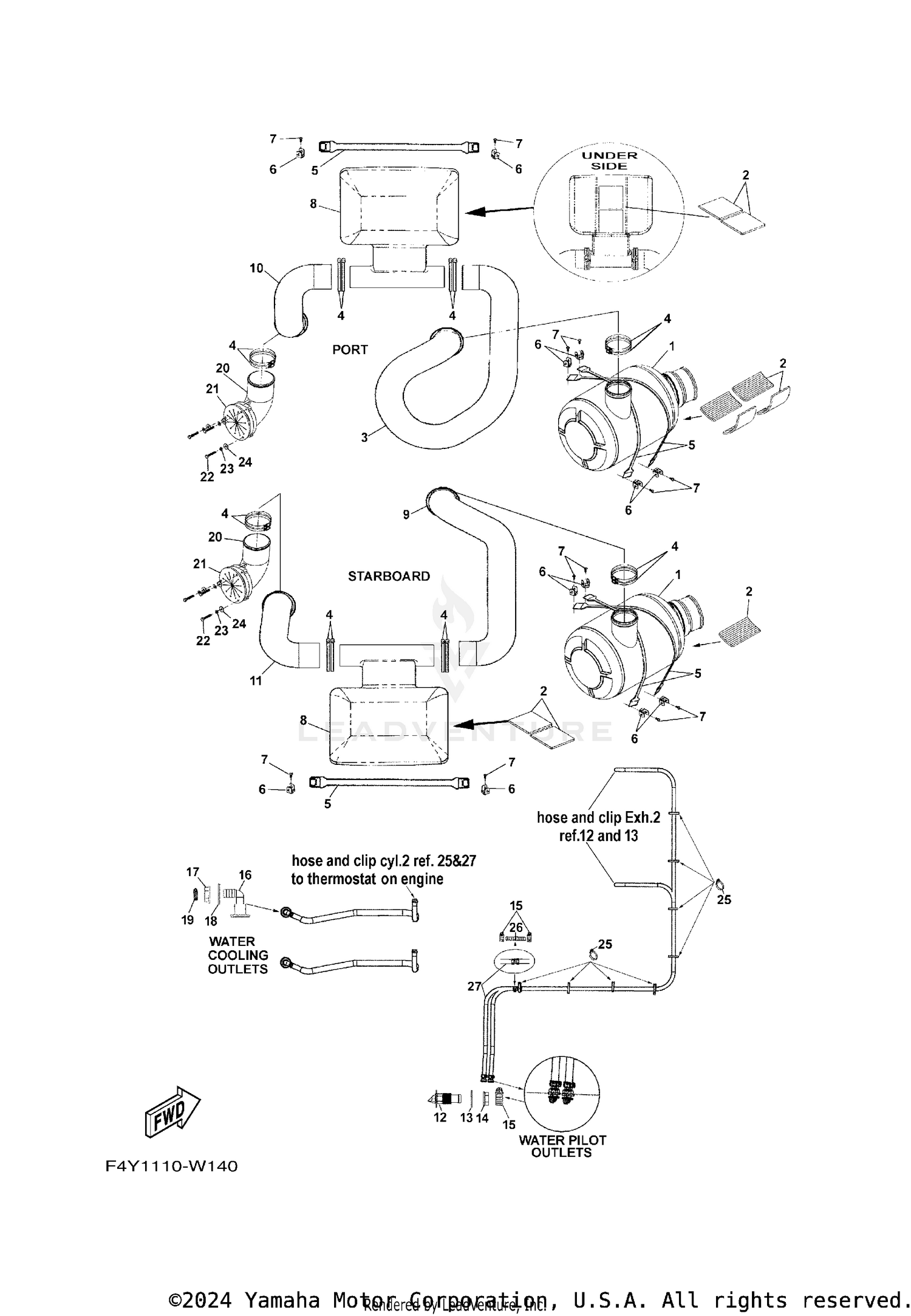

| Ref | Part Number | Description |
|---|
| 1 |
F3F-U7550-00-00 |
WATER LOCK COMP. Price: $380.99 |
| 2 |
GJ3-U755J-00-00 |
MAT,WATER LOCK Price: $112.99 |
| 3 |
F3F-U758B-10-00 |
HOSE,EXHAUST 1 Price: $305.99 |
| 4 |
90601-195UM-00 |
BAND HOSE 95 Price: $8.99 |
| 5 |
GP1-67742-00-00 |
BAND Price: $58.49 |
| 6 |
EU0-65772-30-00 |
HOOK "A" Price: $10.49 |
| 7 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 8 |
F3F-U753C-01-00 |
RESONATOR 1 Price: $97.99 |
| 9 |
F3F-U758C-10-00 |
HOSE,EXHAUST2 Price: $323.99 |
| 10 |
F3F-U758D-00-00 |
HOSE,EXHAUST 3 Price: $253.99 |
| 11 |
F3F-U758E-00-00 |
HOSE,EXHAUST4 Price: $127.99 |
| 12 |
F4V-U753B-00-00 |
PILOT, WATER Price: $7.99 |
| 13 |
F2C-U7564-02-00 |
GASKET This part replaces F2C-U7564-00-00. Price: $6.99 |
| 14 |
F2C-U2733-00-00 |
NUT Price: $5.99 |
| 15 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 16 |
F1W-U224E-00-00 |
BODY, DRAIN 3 Price: $10.99 |
| 17 |
F1B-62241-00-00 |
DRAIN, COCKPIT Price: $13.99 |
| 18 |
F1S-U7525-01-00 |
PACKING Price: $125.99 |
| 19 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 20 |
F3F-U7565-00-00 |
THRU-HULL,EXHAUST Price: $121.99 |
| 21 |
F1C-U751G-00-00 |
VALVE, EXHAUST Price: $22.99 |
| 22 |
90101-06SA2-00 |
BOLT Price: $5.99 |
| 23 |
92995-06100-00 |
WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 24 |
90201-06809-00 |
WASHER, PLATE Price: $6.99 |
| 25 |
90464-99805-00 |
CLAMP Price: $0.50 |
| 26 |
F4A-U771E-10-00 |
PIPE, JOINT Price: $3.50 |
