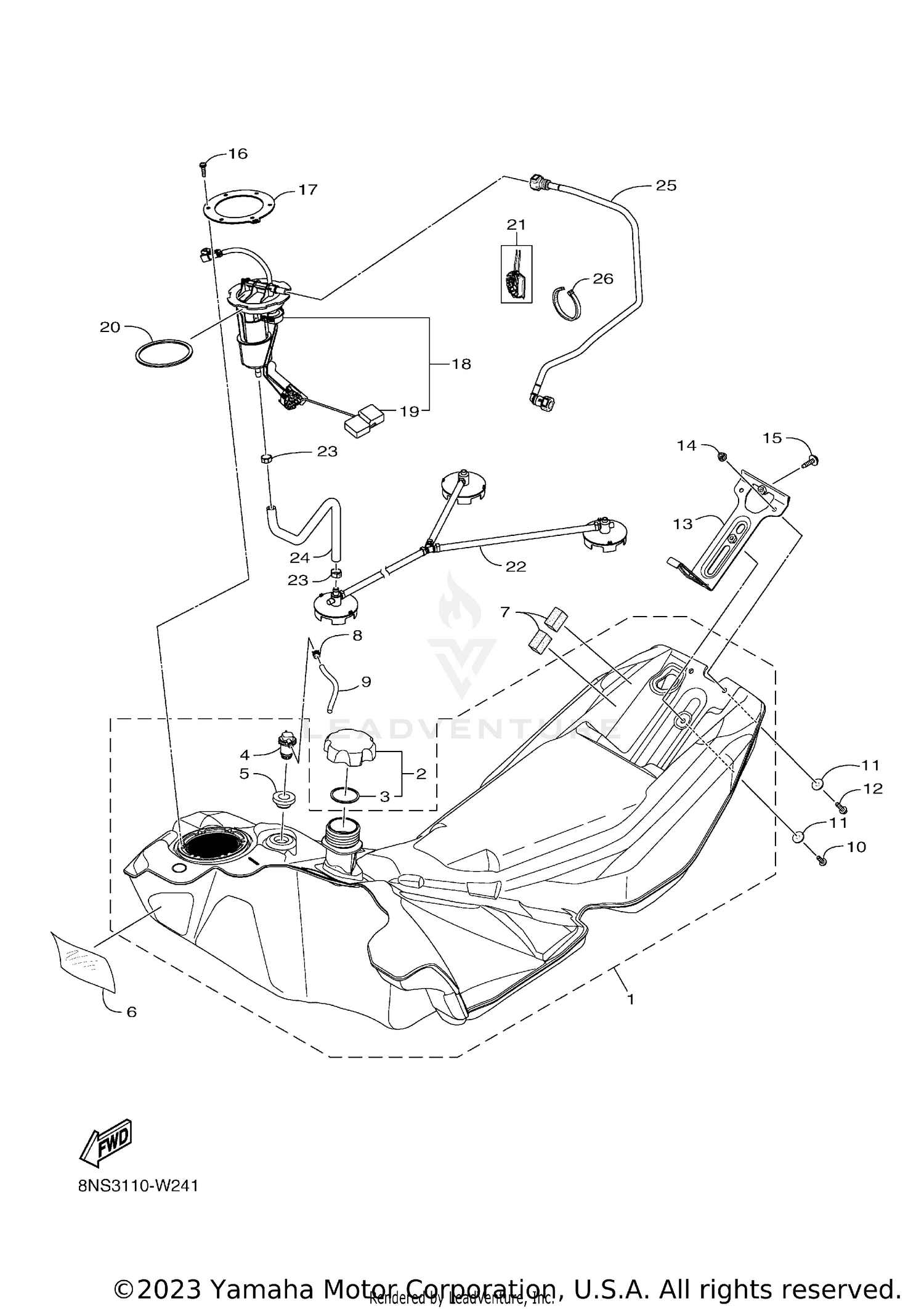

| Ref | Part Number | Description |
|---|
| 1 |
8NS-F4100-00-00 |
FUEL TANK ASSY Price: $449.99 |
| 2 |
8ND-F4610-00-00 |
CAP ASSY Price: $28.99 |
| 3 |
8JM-F4641-00-00 |
GASKET, CAP 1 Price: $4.45 |
| 4 |
8JP-F4362-10-00 |
VALVE, CHECK 1 Price: $26.99 |
| 5 |
8JP-E5366-10-00 |
GROMMET Price: $6.99 |
| 7 |
8NS-F4141-00-00 |
PROTECTOR, FUEL TA Price: $3.85 |
| 8 |
8JP-RAB12-00-00 |
CLAMP, 10 Price: $0.90 |
| 10 |
8MF-RA100-00-00 |
BOLT, FLANGE Price: $1.90 |
| 11 |
8KC-K7525-00-00 |
WASHER 1 Price: $0.60 |
| 12 |
8MF-RA204-00-00 |
SCREW Price: $1.35 |
| 13 |
8NS-F134U-00-00 |
BRACKT, TANK FITTI Price: $65.99 |
| 14 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 15 |
8NS-RA257-00-00 |
SCREW Price: $11.49 |
| 16 |
8JP-RA242-00-00 |
SCREW, M5X0.8X20 Price: $1.10 |
| 17 |
8NS-F4491-00-00 |
BRACKET, FUEL PUMP Price: $48.99 |
| 18 |
8ND-E3907-00-00 |
FUEL PUMP COMP. Price: $739.99 |
| 19 |
8JP-H369N-00-00 |
FLOAT Price: $29.99 |
| 20 |
8JP-F4486-00-00 |
O-RING Price: $3.15 |
| 21 |
8LN-H5701-00-00 |
SENDER ASSY Price: $115.99 |
| 22 |
8ND-F4502-00-00 |
FILTER, FUEL Price: $225.99 |
| 23 |
8JP-RAB08-00-00 |
CLAMP, 6 Price: $2.65 |
| 24 |
8ND-F451B-00-00 |
HOSE, FUEL INLET Price: $106.99 |
| 25 |
8NV-F4310-00-00 |
FUEL PIPE ASSY Price: $91.99 |
