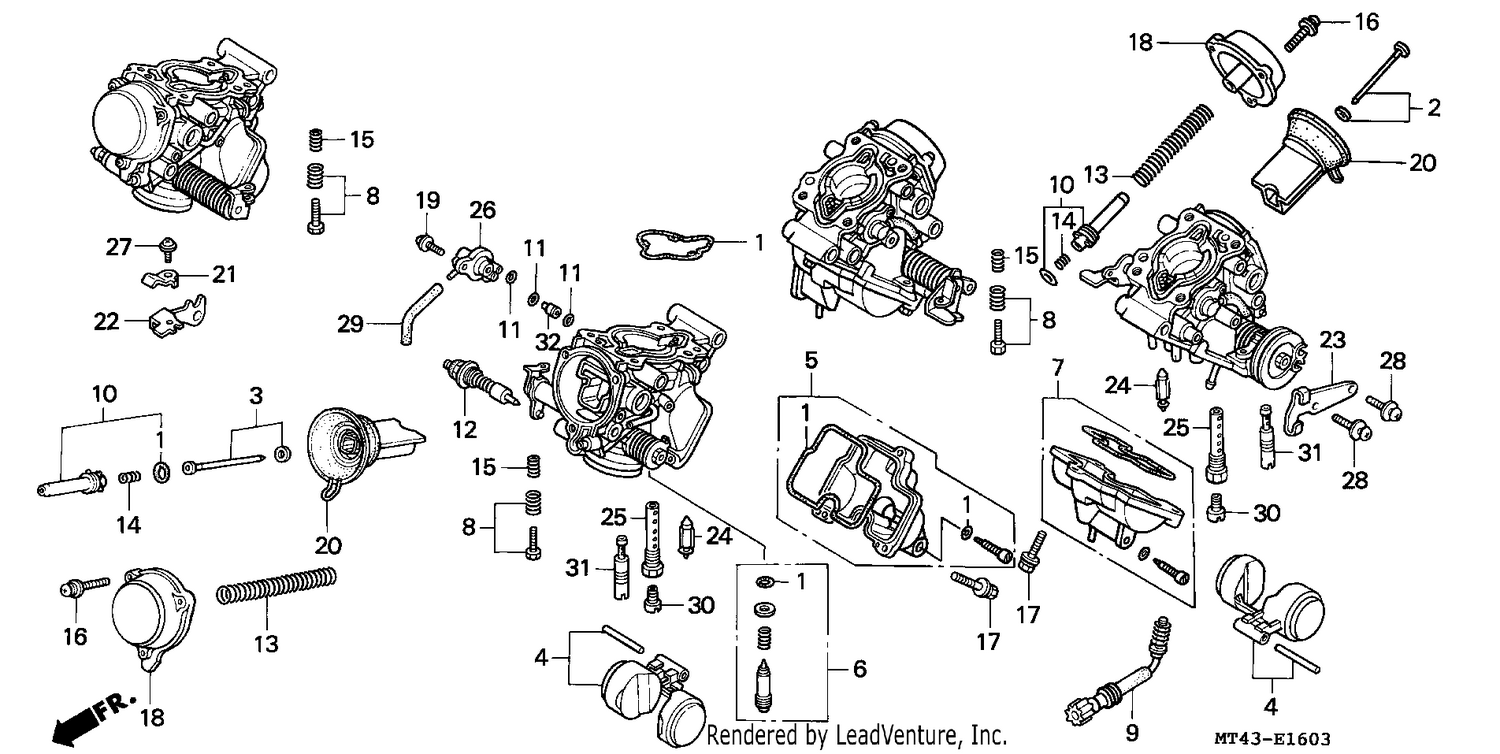

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (31)

RefPart NumberDescription
1 16010MZ5600 GASKET SET A Price: Call Us
2 16012MZ5670 NEEDLE SET, JET Price: Call Us
3 16012MZ7640 NEEDLE SET, JET Price: Call Us
4 16013MY1000 FLOAT SET Price: Call Us
5 16015MW0600 CHAMBER SET, FLOAT Price: Call Us
6 16016KBH000 SCREW SET Price: Call Us
7 16023MY5600 CHAMBER SET, FLOAT Price: Call Us
8 16028MZ5600 SCREW SET Price: Call Us
9 16029MZ7640 SCREW SET Price: Call Us
10 16037MV4000 PLATE SET, VALVE Price: Call Us
11 16041MZ5600 GASKET SET C Price: Call Us
12 16046MZ7640 VALVE SET, STARTER Price: Call Us
13 16050MZ1000 SPRING, COMPRESSION COIL Price: Call Us
14 16051MV4000 SPRING, COMPRESSION COIL Price: Call Us
15 16052MV4000 SPRING, COMPRESSION COIL Price: Call Us
16 16080MV4000 SCREW-WASHER Price: Call Us
17 16082PH9005 BOLT-WASHER, 5X16 Price: Call Us
18 16107MZ5671 TOP Price: Call Us
19 16108MW0750 SCREW Price: Call Us
20 16111MZ1000 PISTON COMP., VACUUM Price: Call Us
21 16119MZ2600 PLATE, STAY Price: Call Us
22 16119MZ5600 PLATE, STAY Price: Call Us
23 16119MZ5670 STAY, WIRE Price: Call Us
24 16155413751 VALVE COMP., FLOAT Price: Call Us
25 16165MV4000 HOLDER, NEEDLE JET Price: Call Us
26 16510MZ2650 VALVE ASSY., AIR CUT Price: Call Us
27 938920401010 SCREW-WASHER, 4X10 Price: Call Us
28 938920501010 SCREW-WASHER, 5X10 Price: Call Us
29 950053506020 TUBE, 3.5X60 (95005-35001-20M) Price: Call Us
30 991013931250 JET, MAIN, #125 Price: Call Us
31 99103MT20400 JET, SLOW, #40 Price: Call Us
