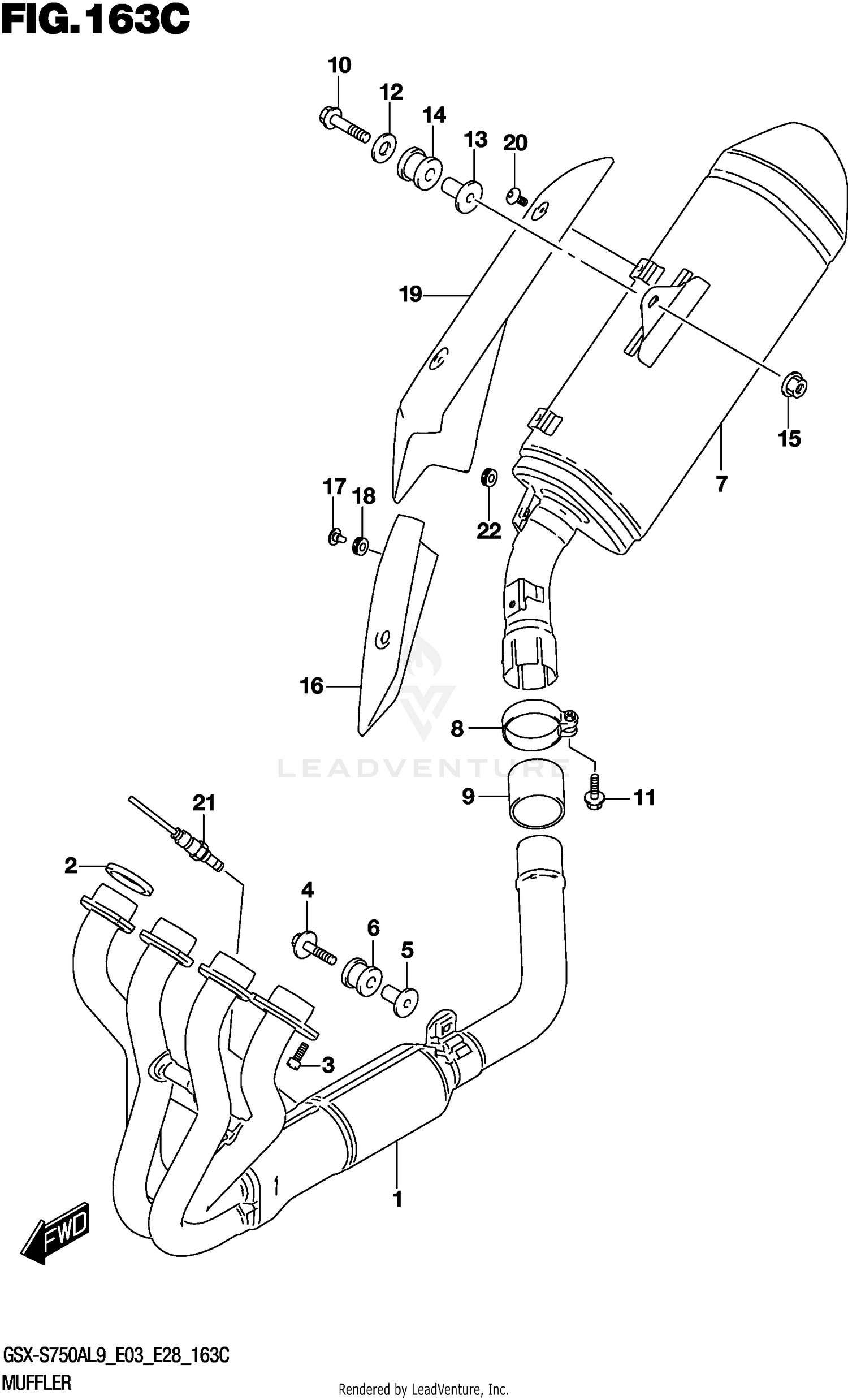

MUFFLER (GSX-S750AL9 E28)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 14100-13K01 | EXHAUST COMP This part replaces 14100-13K00. Price: $1,003.23 |
| 3 | 09106-08178 | BOLT (8X25) Price: $4.01 |
| 4 | 09118-08152-A05 | BOLT (8X45) Price: $6.38 |
| 5 | 09180-08152 | SPACER (8.6X12X24.2) Price: $7.10 |
| 6 | 09320-12077 | CUSHION (12X30X24) Price: $14.55 |
| 7 | 14310-13K01-H01 | BODY, MUFFLER Price: $546.42 |
| 8 | 14459-08J00 | CLAMP,MUF CONN Price: $26.58 |
| 9 | 14771-42F31 | CONNECTOR,MUFFLER Price: $29.54 |
| 10 | 09106-08164 | BOLT (8X45) Price: $6.72 |
| 11 | 09106-08162 | BOLT (8X40) Price: $5.01 |
| 12 | 09160-08142 | WASHER (8.5X28X1.5) Price: $3.25 |
| 13 | 09180-08152 | SPACER (8.6X12X24.2) Price: $7.10 |
| 14 | 09320-12048 | CUSHION (12X30X24) Price: $6.23 |
| 15 | 08361-2508A | NUT Price: $2.37 |
| 16 | 14770-13K00 | COVER, MUFFLER FRONT Price: $69.66 |
| 17 | 09139-06124 | SCREW (6X12) Price: $4.76 |
| 18 | 09320-08066 | CUSHION (8.4X18X6) Price: $10.04 |
| 19 | 14781-13K00 | COVER, MUFFLER CENTER Price: $132.63 |
| 20 | 09139-06078 | SCREW (6X10) Price: $3.36 |
| 21 | 18213-18K00 | SENSOR,OXYGEN Price: $337.77 |
