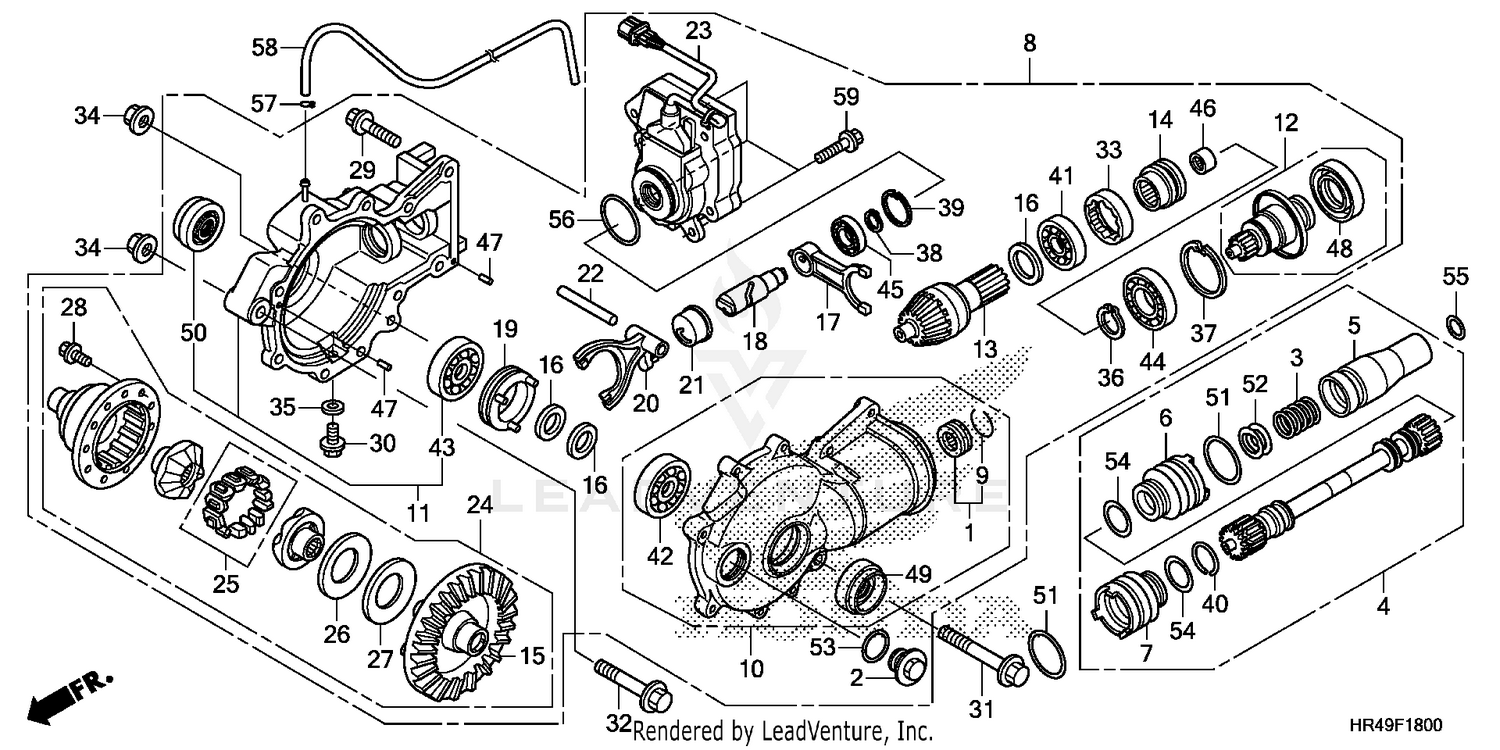

| Ref | Part Number | Description |
|---|
| 1 |
06910-HR4-A21 |
BEARING SET, NEEDLE Price: $33.40 |
| 2 |
12361-300-000 |
CAP, VALVE ADJ. This part replaces 12361-035-000. Price: $12.40 |
| 3 |
40215-HM7-000 |
SPRING, SHAFT Price: $2.35 |
| 4 |
40400-HR4-A20 |
SHAFT ASSY., FR. PROPELLER Price: $106.60 |
| 5 |
40402-HR3-A20 |
JOINT, FR. PROPELLER SHAFT Price: $59.47 |
| 6 |
40420-HM7-A00 |
BOOT B, PROPELLER Price: $16.20 |
| 7 |
40420-HP5-600 |
BOOT, PROPELLER SHAFT COVER Price: $8.85 |
| 8 |
41400-HR4-CT1 |
GEAR, FR. FINAL This part replaces 41400-HR4-A21. Price: $1,188.80 |
| 9 |
41405-HA7-670 |
RING, STOPPER Price: $3.73 |
| 10 |
41411-HR4-A21 |
CASE SUB-ASSY., FR. FINAL GEAR Price: $138.29 |
| 11 |
41412-HR4-A21 |
COVER SUB-ASSY., FR. FINAL GEAR Price: $277.40 |
| 12 |
41500-HR4-A21 |
JOINT SUB-ASSY., FR. FINAL CLUTCH Price: $133.76 |
| 13 |
41521-HR4-A21 |
GEAR, FR. PINION (13T) Price: $120.44 |
| 14 |
41527-HR4-A21 |
SLEEVE, FR. FINAL CLUTCH Price: $24.49 |
| 15 |
41531-HR4-A21 |
GEAR, FR. RING (42T) Price: $145.78 |
| 16 |
41540-HR4-A21 |
SHIM A, DIFFERENTIAL CASE (0.60) Price: $2.71 |
| 16 |
41541-HR4-A21 |
SHIM B, DIFFERENTIAL CASE (0.65) Price: $3.04 |
| 16 |
41542-HR4-A21 |
SHIM C, DIFFERENTIAL CASE (0.70) Price: $3.20 |
| 16 |
41543-HR4-A21 |
SHIM D, DIFFERENTIAL CASE (0.75) Price: $3.04 |
| 16 |
41544-HR4-A21 |
SHIM E, DIFFERENTIAL CASE (0.80) Price: $3.04 |
| 16 |
41545-HR4-A21 |
SHIM F, DIFFERENTIAL CASE (0.85) Price: $2.71 |
| 16 |
41546-HR4-A21 |
SHIM G, DIFFERENTIAL CASE (0.90) Price: $2.60 |
| 16 |
41547-HR4-A21 |
SHIM H, DIFFERENTIAL CASE (0.95) Price: $3.24 |
| 16 |
41548-HR4-A21 |
SHIM I, DIFFERENTIAL CASE (1.00) Price: $3.07 |
| 16 |
41549-HR4-A21 |
SHIM J, DIFFERENTIAL CASE (1.05) Price: $2.75 |
| 16 |
41550-HR4-A21 |
SHIM K, DIFFERENTIAL CASE (1.10) Price: $2.76 |
| 16 |
41551-HR4-A21 |
SHIM L, DIFFERENTIAL CASE (1.15) Price: $3.16 |
| 16 |
41552-HR4-A21 |
SHIM M, DIFFERENTIAL CASE (1.20) Price: $3.31 |
| 16 |
41553-HR4-A21 |
SHIM N, DIFFERENTIAL CASE (1.25) Price: $2.62 |
| 16 |
41554-HR4-A21 |
SHIM O, DIFFERENTIAL CASE (1.30) Price: $2.84 |
| 16 |
41555-HR4-A21 |
SHIM P, DIFFERENTIAL CASE (1.35) Price: $3.24 |
| 16 |
41556-HR4-A21 |
SHIM Q, DIFFERENTIAL CASE (1.40) Price: $3.40 |
| 16 |
41557-HR4-A21 |
SHIM R, DIFFERENTIAL CASE (1.45) Price: $2.84 |
| 17 |
41560-HR4-A21 |
FORK, FR. FINAL CLUTCH Price: $45.55 |
| 18 |
41565-HR4-A21 |
SHAFT, SCREW Price: $23.89 |
| 19 |
41627-HR4-A21 |
SLEEVE, DIFFERENTIAL LOCK Price: $43.31 |
| 20 |
41661-HR4-A21 |
FORK, DIFFERENTIAL LOCK Price: $88.33 |
| 21 |
41665-HR4-A21 |
CAM, DIFFERENTIAL LOCK Price: $39.76 |
| 22 |
41666-HR4-A21 |
SHAFT, DIFFERENTIAL LOCK FORK Price: $4.60 |
| 23 |
41700-HR4-A21 |
ACTUATOR ASSY. Price: $473.24 |
| 24 |
42400-HR4-A21 |
DIFFERENTIAL ASSY. (42T) Price: $777.11 |
| 25 |
42440-HN5-671 |
FOLLOWER SET, CAM Price: $65.55 |
| 26 |
42451-HN7-003 |
SHIM A (1.3) Price: $2.36 |
| 26 |
42452-HN7-003 |
SHIM B (1.4) Price: $2.36 |
| 26 |
42453-HN7-003 |
SHIM C (1.5) Price: $2.36 |
| 26 |
42454-HN7-003 |
SHIM D (1.6) Price: $2.36 |
| 26 |
42455-HN7-003 |
SHIM E (1.7) Price: $2.36 |
| 26 |
42456-HN7-003 |
SHIM F (1.8) Price: $2.36 |
| 26 |
42457-HN7-003 |
SHIM G (1.9) Price: $2.36 |
| 27 |
42461-HN5-671 |
SPRING, DIFFERENTIAL SIDE CONED Price: $19.29 |
| 28 |
90101-HN8-000 |
BOLT (8X17) Price: $1.73 |
| 29 |
90102-HR4-A21 |
BOLT, FLANGE (8X25) Price: $1.27 |
| 30 |
90109-371-000 |
BOLT, SEALING (8MM) Price: $3.09 |
| 31 |
90102-HR6-B00 |
BOLT, FLANGE (10X96) Price: $1.71 |
| 32 |
90182-MB2-003 |
BOLT, FLANGE (10X66) Price: $11.16 |
| 33 |
90244-HA0-000 |
NUT, LOCK (60MM) Price: $43.25 |
| 34 |
90305-HC0-770 |
NUT, SELF-LOCK (10MM) Price: $3.76 |
| 35 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 36 |
90651-HR4-A21 |
CIRCLIP (OUTER) (45MM) Price: $1.24 |
| 37 |
90652-HR4-A21 |
CIRCLIP (INNER) (68MM) Price: $2.56 |
| 38 |
90653-HR4-A21 |
CIRCLIP (OUTER) (17MM) Price: $0.22 |
| 39 |
90654-HR4-A21 |
CIRCLIP (INNER) (35MM) Price: $0.75 |
| 40 |
91012-KF0-000 |
CLIP, NEEDLE THRUST BEARING (12MM) Price: $3.73 |
| 41 |
91051-HR4-A21 |
BEARING, RADIAL BALL (32X58X13) Price: $13.75 |
| 42 |
91052-HR4-A21 |
BEARING, RADIAL BALL (32X28X13) Price: $13.75 |
| 43 |
91052-HR4-A21 |
BEARING, RADIAL BALL (32X28X13) Price: $13.75 |
| 44 |
91053-HR4-A21 |
BEARING, RADIAL BALL (45X68X12) Price: $24.69 |
| 45 |
91054-HR4-A21 |
BEARING, RADIAL BALL (17X35X10) Price: $6.40 |
| 46 |
91055-HR4-A21 |
BEARING, NEEDLE (12X18X12) Price: $4.09 |
| 47 |
91151-HR4-A21 |
PIN, DOWEL (5MM) Price: $0.36 |
| 48 |
91251-HR4-A21 |
DUST SEAL (51.5X72X9) Price: $8.15 |
| 49 |
91252-HC5-003 |
OIL SEAL (22X48X7) (ARAI) Price: $11.36 |
| 50 |
91252-HC5-003 |
OIL SEAL (22X48X7) (ARAI) Price: $11.36 |
| 51 |
91302-HM7-A00 |
BAND, BOOT (D27) Price: $9.96 |
| 52 |
91302-HN5-671 |
SEAL, PROPELLER Price: $4.69 |
| 53 |
91302-001-020 |
O-RING (30.8MM) (Honda Code 0001065) Price: $4.70 |
| 54 |
91303-HM7-A00 |
BAND, BOOT (D20) Price: $9.96 |
| 55 |
91311-MB0-003 |
O-RING (18.5X2.4) (ARAI) Price: $2.44 |
| 56 |
91351-HR4-A21 |
O-RING (38MM) Price: $8.04 |
| 57 |
95002-35000 |
CLIP, TUBE (C6.5) Price: $0.78 |
| 58 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
