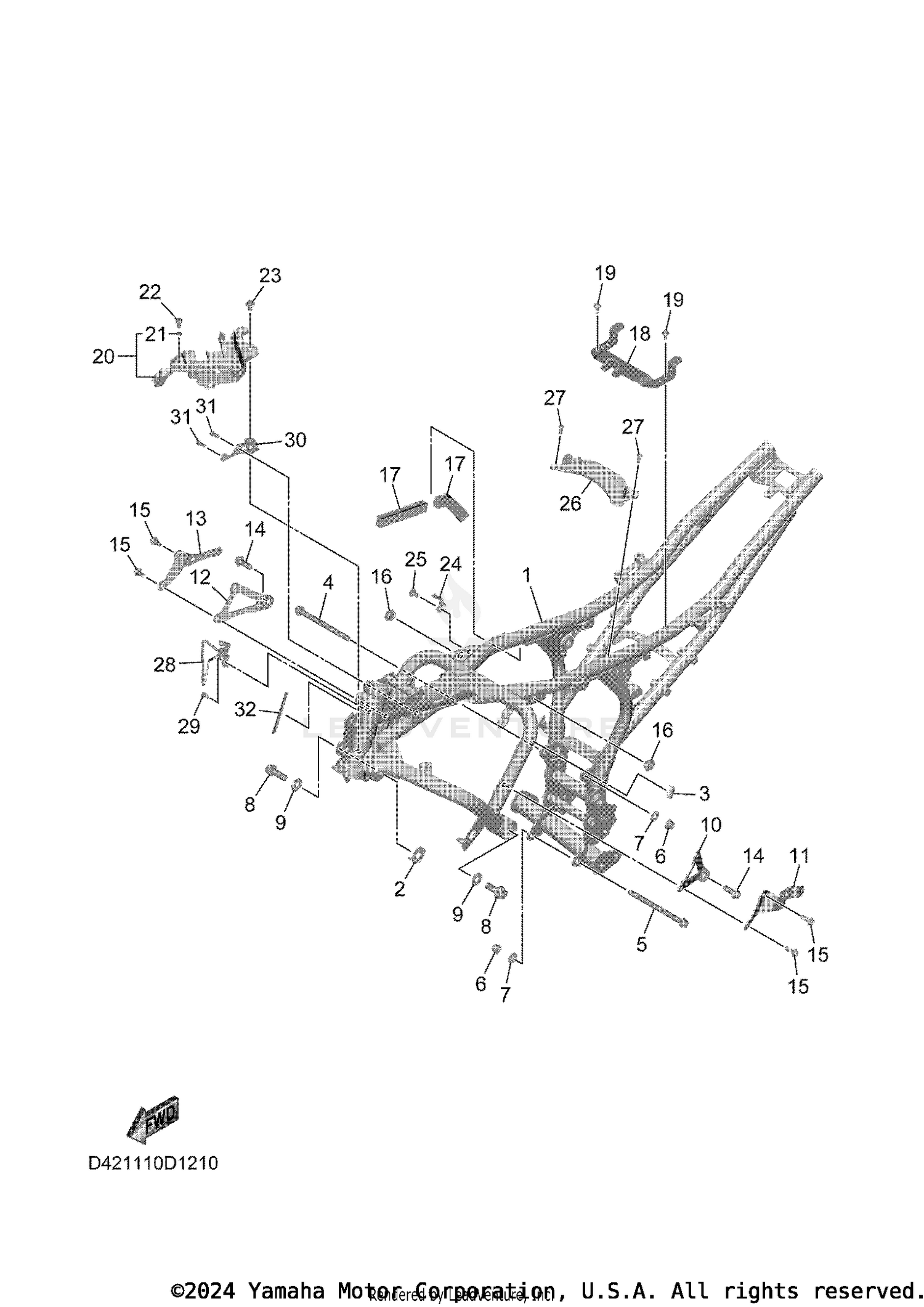

| Ref | Part Number | Description |
|---|
| 1 |
D42-21110-10-00 |
FRAME COMP. Price: $1,415.99 |
| 2 |
1WS-2191B-00-00 |
PLATE 1 Price: $18.99 |
| 3 |
3MA-27491-00-00 |
PROTECTOR Price: $9.49 |
| 4 |
90105-10219-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
90105-10349-00 |
BOLT, FLANGE Price: $16.49 |
| 6 |
90179-10024-00 |
NUT Price: $11.49 |
| 7 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 8 |
90105-12092-00 |
BOLT, FLANGE Price: $15.49 |
| 9 |
90201-13020-00 |
WASHER, PLATE Price: $3.95 |
| 10 |
D42-21315-00-00 |
STAY, ENGINE 1 Price: Call Us |
| 11 |
D42-2138K-00-00 |
BRACKET, 1 Price: $48.99 |
| 12 |
D42-21316-00-00 |
STAY, ENGINE 2 Price: Call Us |
| 13 |
D42-2138L-00-00 |
BRACKET 2 Price: $44.99 |
| 14 |
90110-10026-00 |
BOLT, HEXAGON SOCKET Price: $12.49 |
| 15 |
90110-08111-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.85 |
| 16 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 17 |
90520-20003-00 |
DAMPER, PLATE Price: $9.49 |
| 18 |
D42-21946-00-00 |
BRACKET, SEAT FITTING Price: $36.99 |
| 19 |
90110-06219-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 20 |
D42-22400-00-00 |
HOLDER ASSY Price: $20.99 |
| 22 |
95817-06014-00 |
BOLT, FLANGE This part replaces 95827-06014-00. Price: $2.80 |
| 23 |
90109-06220-00 |
BOLT Price: $11.49 |
| 24 |
BLW-2175U-00-00 |
BRACKET 2 Price: $8.49 |
| 25 |
90269-07077-00 |
RIVET Price: $9.49 |
| 26 |
D42-2115L-00-00 |
BRACKET, MEMBER 1 Price: $56.99 |
| 27 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 28 |
D42-21288-00-00 |
GUIDE, CABLE Price: $36.99 |
| 29 |
95027-06010-00 |
BOLT, FLANGE Price: $3.55 |
| 30 |
D42-2141G-00-00 |
BRKT., 4 Price: $11.99 |
| 31 |
92012-06016-00 |
BOLT, BUTTON HEAD Price: $9.49 |
