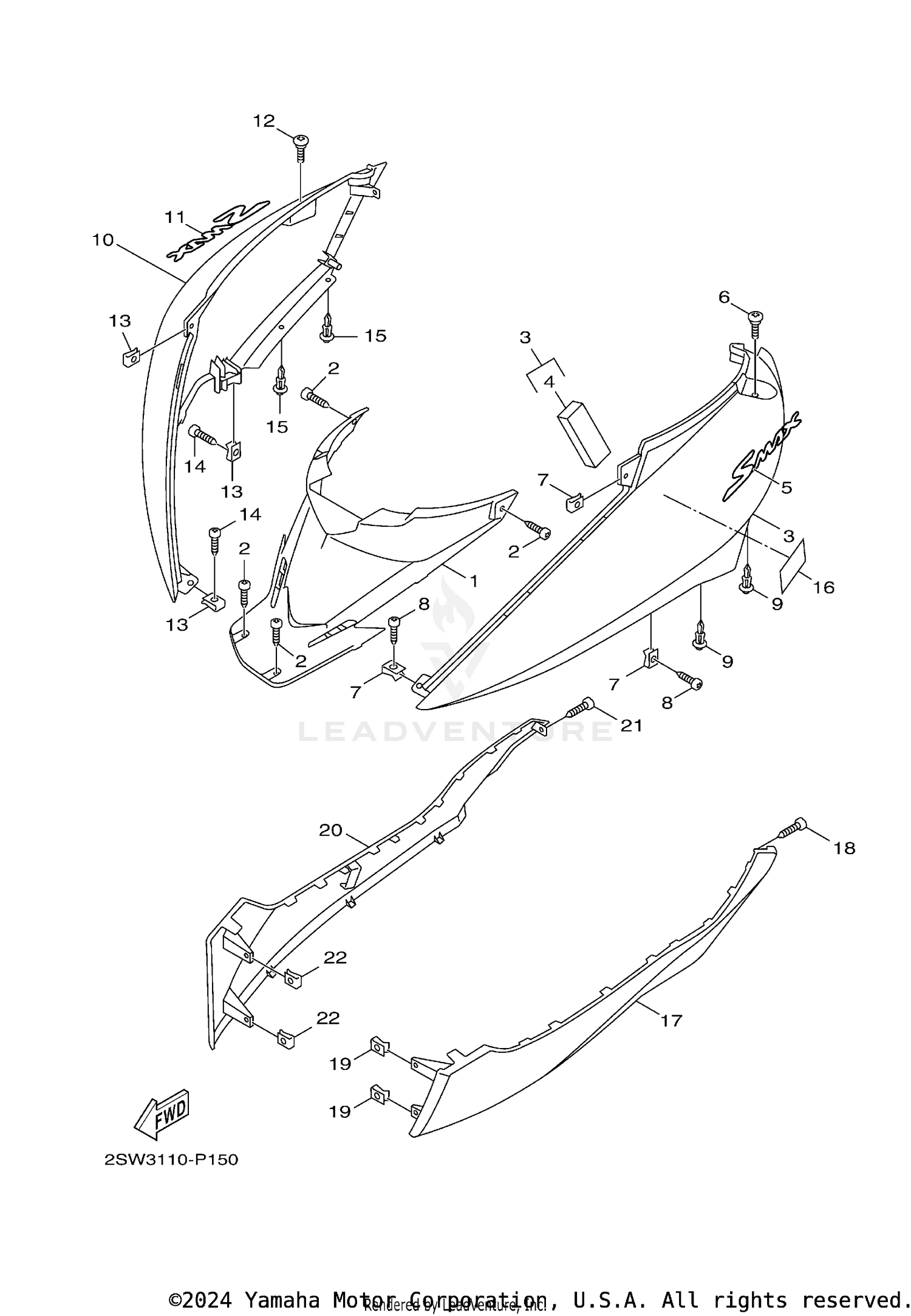

SIDE COVER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1DK-F1711-01-00 | COVER, SIDE 1 Price: $11.49 |
| 2 | 97707-50012-00 | SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 4 | 1B6-F1717-00-00 | DAMPER Price: $0.80 |
| 5 | 1DK-F173B-00-00 | EMBLEM 3D Price: $20.99 |
| 6 | 90149-05804-00 | SCREW Price: $1.60 |
| 7 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 8 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 9 | 90269-06803-00 | RIVET Price: $0.60 |
| 11 | 1DK-F174B-00-00 | EMBLEM 3D Price: $20.99 |
| 12 | 90149-05804-00 | SCREW Price: $1.60 |
| 13 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 14 | 97707-50016-00 | SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 15 | 90269-06803-00 | RIVET Price: $0.60 |
| 16 | 5PJ-F118K-00-00 | LABEL, CAUTION Price: $2.20 |
| 18 | 90169-05001-00 | TAPPING SCREW Price: $1.05 |
| 19 | 90183-05827-00 | NUT, SPRING This part replaces 90183-05816-00. Price: $1.65 |
| 21 | 90169-05001-00 | TAPPING SCREW Price: $1.05 |
