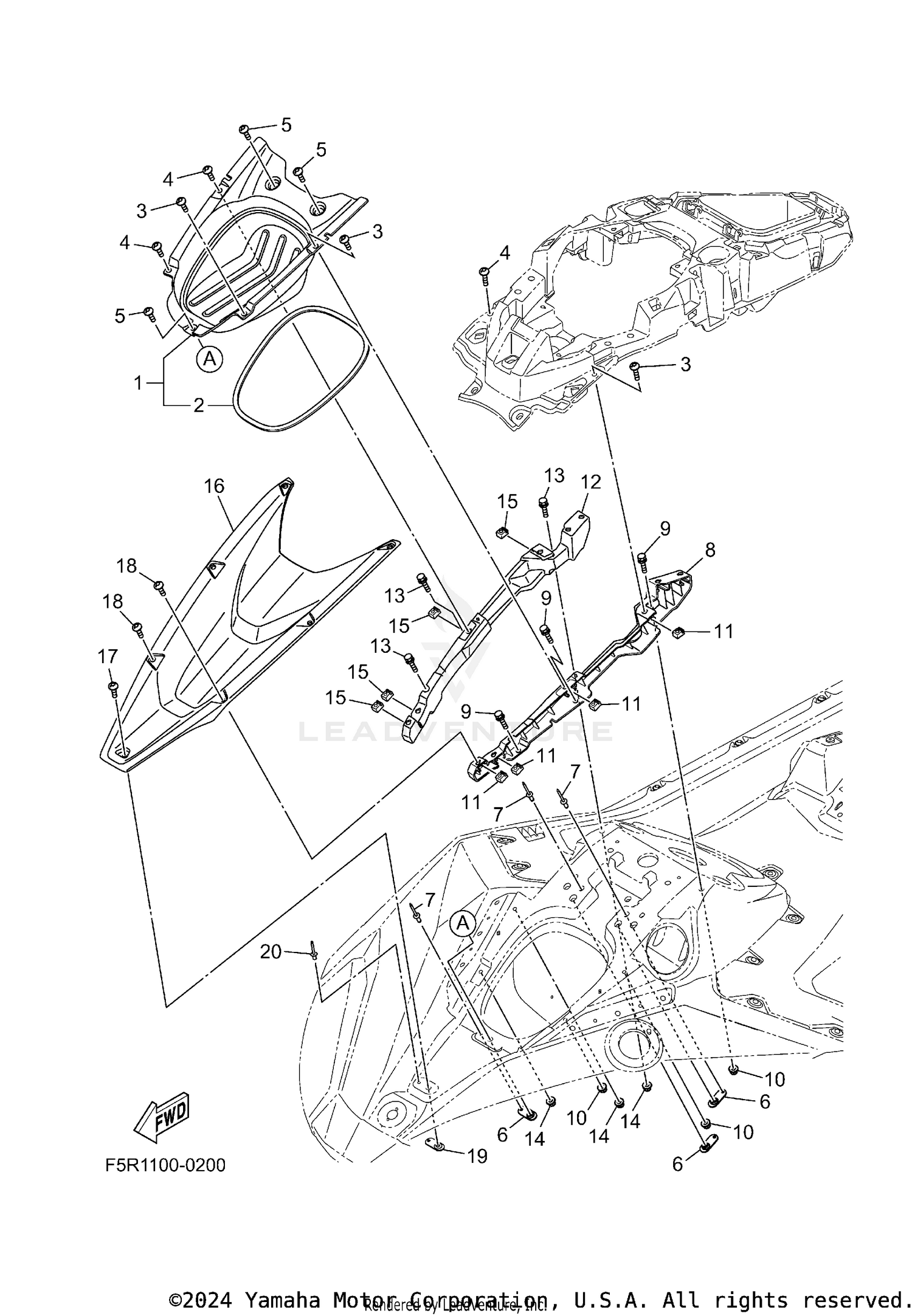

ENGINE HATCH 1
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F5P-U475A-00-00 | BOWLOCKER ASSY Price: $24.99 |
| 2 | F3Y-U2663-00-00 | PACKING 1 Price: $11.99 |
| 3 | F5G-U7823-09-00 | SCREW Price: $1.99 |
| 4 | F5G-U7823-09-00 | SCREW Price: $1.99 |
| 5 | F5G-U7823-00-00 | SCREW Price: $7.99 |
| 6 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
| 7 | F4P-U516R-01-00 | RIVET 1 Price: $10.99 |
| 8 | F5P-U377M-00-00 | BRKT.,COVER SIDE 1 Price: $9.99 |
| 9 | 90119-06892-00 | BOLT, WITH WASHER Price: $10.99 |
| 10 | F2N-U142L-00-00 | NUT, LOCK Price: $5.99 |
| 11 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 12 | F5P-U377N-00-00 | BRKT.,COVER SIDE 2 Price: $9.99 |
| 13 | 90119-06892-00 | BOLT, WITH WASHER Price: $10.99 |
| 14 | F2N-U142L-00-00 | NUT, LOCK Price: $5.99 |
| 15 | F3X-U517E-00-00 | NUT Price: $5.99 |
| 16 | F5P-U519G-00-00 | INNER, ENGINE HATC Price: $30.99 |
| 17 | F5G-U7823-00-00 | SCREW Price: $7.99 |
| 18 | F5G-U7823-09-00 | SCREW Price: $1.99 |
| 19 | F2X-U5175-00-00 | PLATE, FIX Price: $5.99 |
