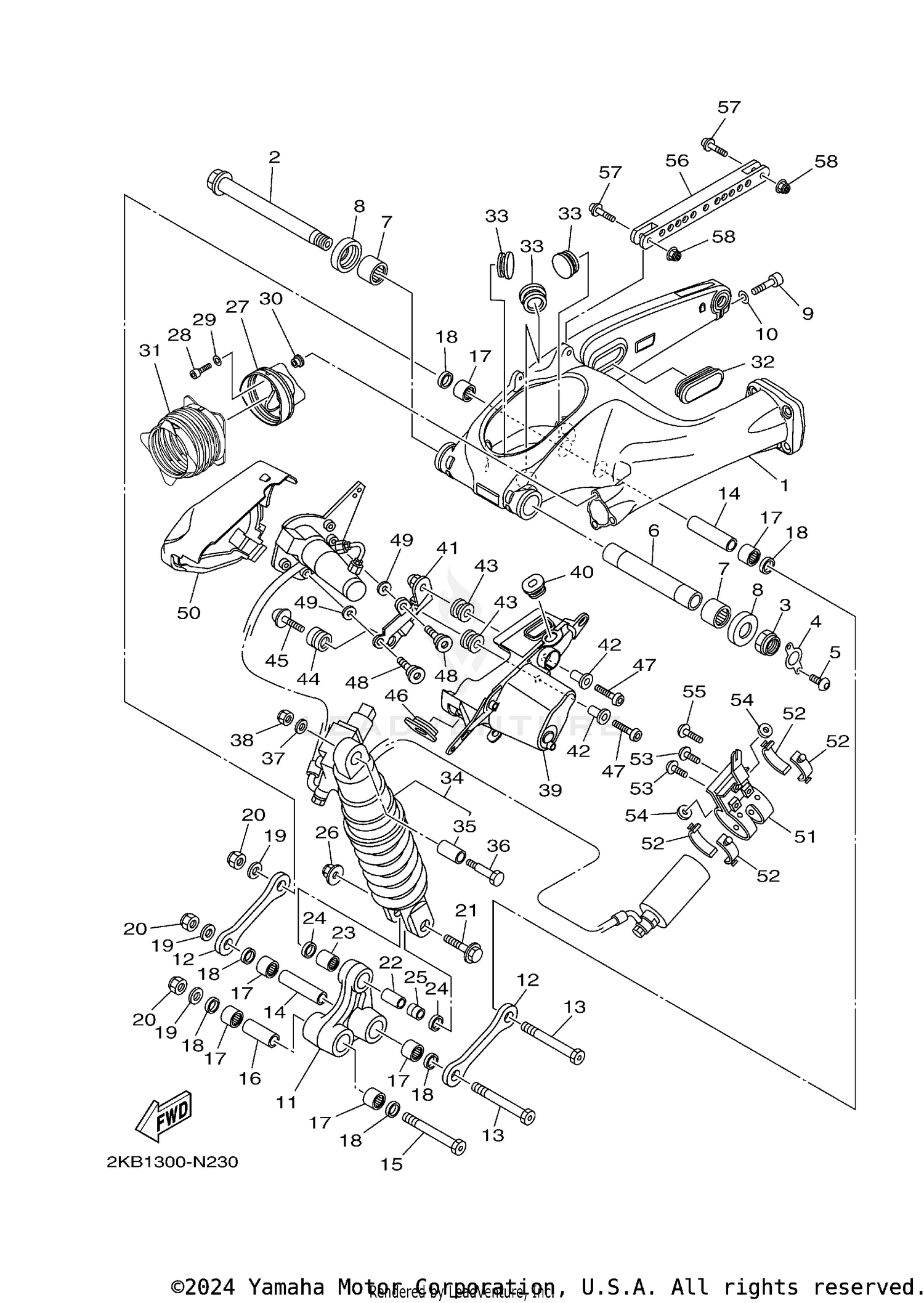

| Ref | Part Number | Description |
|---|
| 2 |
23P-22141-00-00 |
SHAFT, PIVOT Price: $83.99 |
| 3 |
90185-22009-00 |
NUT, SELF-LOCKING Price: $21.99 |
| 4 |
23P-22163-00-00 |
BRACKET Price: $4.35 |
| 5 |
92012-05008-00 |
BOLT, BUTTON HEAD Price: $3.05 |
| 6 |
23P-22184-00-00 |
BUSH Price: $66.99 |
| 7 |
93317-330A0-00 |
BEARING Price: $38.99 |
| 8 |
23P-22128-00-00 |
COVER, THRUST 1 Price: $26.99 |
| 9 |
91312-10040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.55 |
| 10 |
92990-10600-00 |
WASHER, PLATE This part replaces 92902-10600-00. Price: $3.00 |
| 11 |
2KB-2217A-00-00 |
ARM, RELAY Price: $259.99 |
| 12 |
2KB-2217M-00-00 |
ARM 1 Price: $43.99 |
| 13 |
90109-14008-00 |
BOLT Price: $27.99 |
| 14 |
90387-14014-00 |
COLLAR Price: $21.99 |
| 15 |
90109-14009-00 |
BOLT Price: $37.60 |
| 16 |
90387-14015-00 |
COLLAR Price: $16.49 |
| 17 |
93315-32057-00 |
BEARING Price: $35.99 |
| 18 |
93109-20076-00 |
OIL SEAL Price: $17.49 |
| 19 |
90201-14027-00 |
WASHER, PLATE Price: $6.49 |
| 20 |
90185-14010-00 |
NUT, SELF-LOCKING Price: $16.49 |
| 21 |
90105-10378-00 |
BOLT, FLANGE Price: $13.99 |
| 22 |
90387-10104-00 |
COLLAR Price: $44.99 |
| 23 |
93315-31759-00 |
BEARING Price: $42.99 |
| 24 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 25 |
90387-10105-00 |
COLLAR Price: $36.99 |
| 26 |
95607-10200-00 |
NUT, U FLANGE Price: $4.15 |
| 27 |
23P-2217H-00-00 |
COVER, DUST Price: $9.49 |
| 28 |
91312-05014-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05031-00. Price: $3.20 |
| 29 |
92990-05200-00 |
WASHER, PLAIN This part replaces 92902-05200-00. Price: $5.00 |
| 30 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 31 |
23P-22189-00-00 |
BOOT, RUBBER Price: $25.99 |
| 32 |
5JW-2219X-00-00 |
COVER Price: $15.49 |
| 33 |
90338-30267-00 |
PLUG Price: $4.90 |
| 34 |
2KB-22210-50-00 |
SHOCK ABSORBER ASSY, REAR Price: $2,447.99 |
| 35 |
5RM-22216-00-00 |
BUSH, REAR SHOCK ABSORBER Price: $16.49 |
| 36 |
90109-10028-00 |
BOLT Price: $5.49 |
| 37 |
90201-10036-00 |
WASHER, PLATE Price: $8.49 |
| 38 |
95617-10100-00 |
NUT, U This part replaces 95612-10100-00. Price: $9.49 |
| 39 |
2KB-22325-00-00 |
COVER, DUST Price: $85.99 |
| 40 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 41 |
2KB-22324-00-00 |
STAY, DUST COVER Price: $51.99 |
| 42 |
90387-067K8-00 |
COLLAR Price: $8.49 |
| 43 |
4WM-84366-00-00 |
DAMPER, HEADLIGHT 1 Price: $14.49 |
| 44 |
5J0-83513-00-00 |
DAMPER Price: $16.49 |
| 45 |
90164-05001-00 |
SCREW, TAPPING Price: $9.49 |
| 46 |
90480-13027-00 |
GROMMET Price: $3.65 |
| 47 |
92012-06020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 48 |
90109-06182-00 |
BOLT Price: $13.49 |
| 49 |
90201-07081-00 |
WASHER, PLATE Price: $11.49 |
| 50 |
2KB-2171L-00-00 |
MOLE, SIDE COVER 1 Price: $60.99 |
| 51 |
2KB-22262-00-00 |
HOLDER, SUB TANK Price: $46.99 |
| 52 |
24X-22261-00-00 |
DAMPER, SUB TANK Price: $10.99 |
| 53 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 54 |
90201-064J1-00 |
WASHER, PLATE This part replaces 90201-06025-00. Price: $5.49 |
| 55 |
92012-08012-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 56 |
23P-25371-00-00 |
BAR, TENSION Price: $58.99 |
| 57 |
90110-08007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
