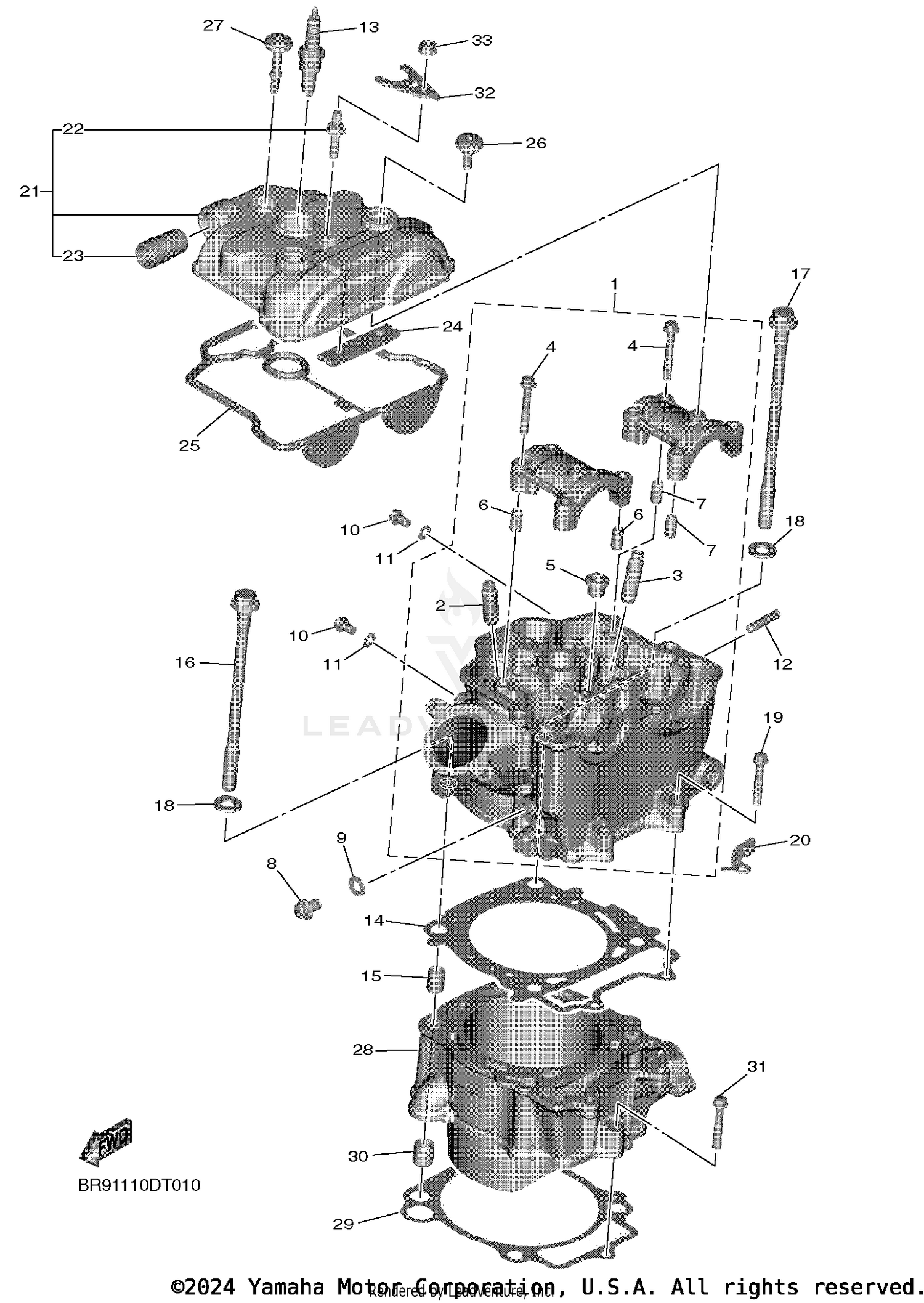

| Ref | Part Number | Description |
|---|
| 1 |
BR9-11102-00-00 |
CYLINDER HEAD ASSY Price: $1,185.99 |
| 2 |
5PS-11133-10-00 |
GUIDE, VALVE 1 Price: $84.99 |
| 3 |
5PS-11134-10-00 |
GUIDE, VALVE 2 Price: $84.99 |
| 4 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
90340-12007-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 6 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 7 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 8 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 10 |
95022-06010-00 |
BOLT, FLANGE Price: $6.49 |
| 12 |
90116-06037-00 |
BOLT, STUD Price: $4.25 |
| 15 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 16 |
90105-10367-00 |
BOLT, FLANGE Price: $13.49 |
| 17 |
90105-10163-00 |
BOLT, FLANGE Price: $10.49 |
| 18 |
90201-10025-00 |
WASHER, PLATE Price: $8.49 |
| 19 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 20 |
BR9-81128-00-00 |
CLAMP Price: $8.49 |
| 22 |
90116-06049-00 |
BOLT, STUD This part replaces 90116-06048-00. Price: $5.49 |
| 23 |
341-11167-00-00 |
PIPE, BREATHER 2 Price: $3.70 |
| 24 |
5BE-12241-01-00 |
GUIDE, STOPPER 2 This part replaces 5BE-12241-00-00. Price: $32.99 |
| 28 |
BR9-11311-00-00 |
CYLINDER 1 Price: $762.99 |
| 30 |
99530-14016-00 |
PIN, DOWEL A Price: $3.80 |
| 31 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 32 |
BR9-11395-00-00 |
HOLDER Price: $6.49 |
