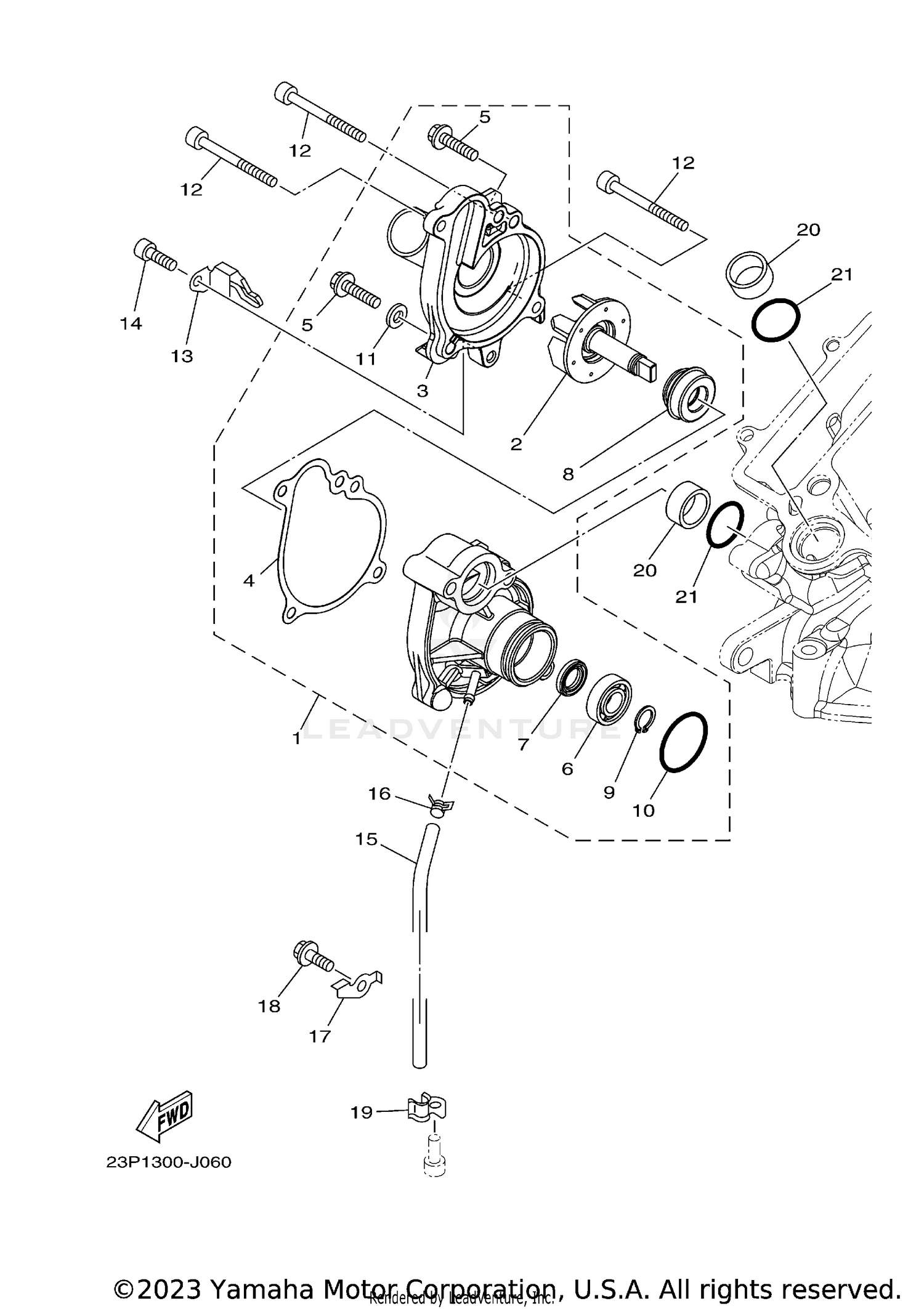

WATER PUMP
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23P-12420-01-00 | WATER PUMP ASSY Price: $344.99 |
| 2 | 23P-12450-00-00 | IMPELLER SHAFT ASSY Price: $62.99 |
| 3 | 23P-12422-01-00 | COVER, HOUSING Price: $86.99 |
| 4 | 23P-12428-00-00 | GASKET, HOUSING COVER 2 Price: $19.99 |
| 5 | 95024-06025-00 | BOLT, FLANGE (SMALL HEAD) Price: $2.45 |
| 6 | 93306-00105-00 | BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 7 | 93101-12173-00 | OIL SEAL Price: $14.49 |
| 8 | 5VK-12438-00-00 | SEAL, MECHANICAL Price: $66.99 |
| 9 | 99009-12400-00 | CIRCLIP Price: $3.59 |
| 10 | 93210-33133-00 | O-RING Price: $3.80 |
| 11 | 90430-06014-00 | GASKET Price: $8.60 |
| 12 | 91314-06055-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06351-00. Price: $9.49 |
| 13 | 90462-08095-00 | CLAMP Price: $6.49 |
| 14 | 91314-06012-00 | BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 15 | 90445-07030-00 | HOSE Price: $2.90 |
| 16 | 90467-070A0-00 | CLIP Price: $8.49 |
| 17 | 90462-08084-00 | CLAMP Price: $4.15 |
| 18 | 95814-06016-00 | BOLT, FLANGE This part replaces 95824-06016-00. Price: $1.99 |
| 19 | 90462-10059-00 | CLAMP Price: $8.49 |
| 20 | 23P-12564-00-00 | PIPE, WATER Price: $6.49 |
