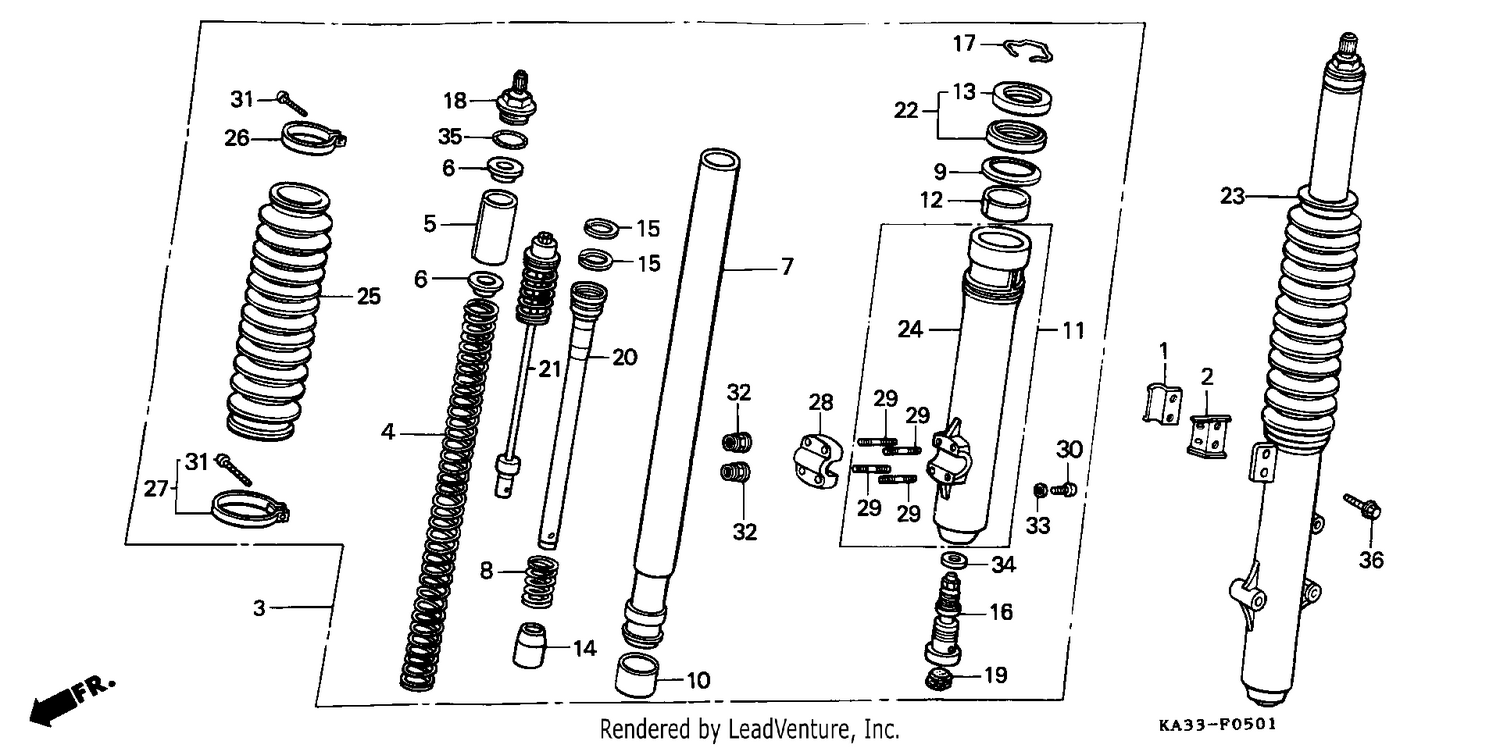

| Ref | Part Number | Description |
|---|
| 1 |
45461KA3710 |
CLAMP A, FR. BRAKE CABLE Price: Call Us |
| 2 |
45462KA3710 |
CLAMP B, FR. BRAKE CABLE Price: Call Us |
| 3 |
51400KS6004 |
FORK ASSY., R. FR. (KAYABA) Price: Call Us |
| 4 |
51401KS6004 |
SPRING, FR. CUSHION (KAYABA) (3.43N/MM,0.350KGF/MM) Price: Call Us |
| 4 |
51401KS6651 |
SPRING, FR. CUSHION (KAYABA) (3.24N/MM,0.330KGF/MM ) Price: Call Us |
| 4 |
51403KS6305 |
SPRING, FR. CUSHION (KAYABA) (3.63N/MM,0.370KG/MM) Price: Call Us |
| 5 |
51404KS6004 |
SPACER, SPRING (KAYABA) Price: Call Us |
| 6 |
51405KA3731 |
GUIDE, SPRING Price: Call Us |
| 7 |
51410KS6004 |
PIPE COMP., FR. FORK (KAYABA) Price: Call Us |
| 8 |
51411KS6004 |
SPRING, FR. REBOUND (KAYABA) (1.62KG/MM) Price: Call Us |
| 9 |
51412KA4701 |
WASHER Price: Call Us |
| 10 |
51415KA3731 |
SLEEVE, FORK PIPE Price: Call Us |
| 11 |
51421KS6004 |
CASE COMP., R. BOTTOM (KAYABA) Price: Call Us |
| 12 |
51424KA4701 |
BUSH, FORK PIPE Price: Call Us |
| 13 |
51425KA3731 |
DUST SEAL, FR. FORK Price: Call Us |
| 14 |
51432KS6004 |
PIECE, OIL LOCK (KAYABA) Price: Call Us |
| 15 |
51437KA3731 |
RING, PISTON Price: Call Us |
| 16 |
51441KS6004 |
BOLT COMP., CENTER (KAYABA) Price: Call Us |
| 17 |
51447KA4701 |
RING, SNAP Price: Call Us |
| 18 |
51455KA3731 |
BOLT, FR. FORK Price: Call Us |
| 19 |
51461KA3831 |
CAP, ADJUSTING BOLT Price: Call Us |
| 20 |
51470KS6004 |
PIPE, SEAT (KAYABA) Price: Call Us |
| 21 |
51480KS6004 |
ROD COMP., TENSION CONTROL VALVE (KAYABA) Price: Call Us |
| 22 |
51490KA3731 |
SEAL SET, FR. FORK Price: Call Us |
| 23 |
51500KS6004 |
FORK ASSY., L. FR. (KAYABA) Price: Call Us |
| 24 |
51521KS6004 |
CASE, L. BOTTOM Price: Call Us |
| 25 |
51611KA3831 |
BOOT, FR. FORK (KAYABA) Price: Call Us |
| 26 |
51612KA3831 |
BAND, BOOT UPPER (KAYABA) Price: Call Us |
| 27 |
51613KS6004 |
BAND, BOOT LOWER Price: Call Us |
| 28 |
51634KA3831 |
HOLDER, AXLE (KAYABA) Price: Call Us |
| 29 |
90136KA3831 |
BOLT, STUD, 6X34 Price: Call Us |
| 30 |
90201KA4004 |
SCREW, PAN, 4X8 Price: Call Us |
| 30 |
93500040080A |
SCREW, PAN, 4X8 Price: Call Us |
| 31 |
90202KA4004 |
SCREW, PAN, 4X16 (KAYABA) Price: Call Us |
| 31 |
93500040160A |
SCREW, PAN, 4X16 Price: Call Us |
| 32 |
90301473003 |
NUT, U, 6MM Price: Call Us |
| 33 |
90543KA4004 |
WASHER, DRAIN, 4MM Price: Call Us |
| 34 |
90544KS6004 |
WASHER (KAYABA) Price: Call Us |
| 35 |
91356KA4701 |
O-RING, 33.7X3.5 Price: Call Us |
