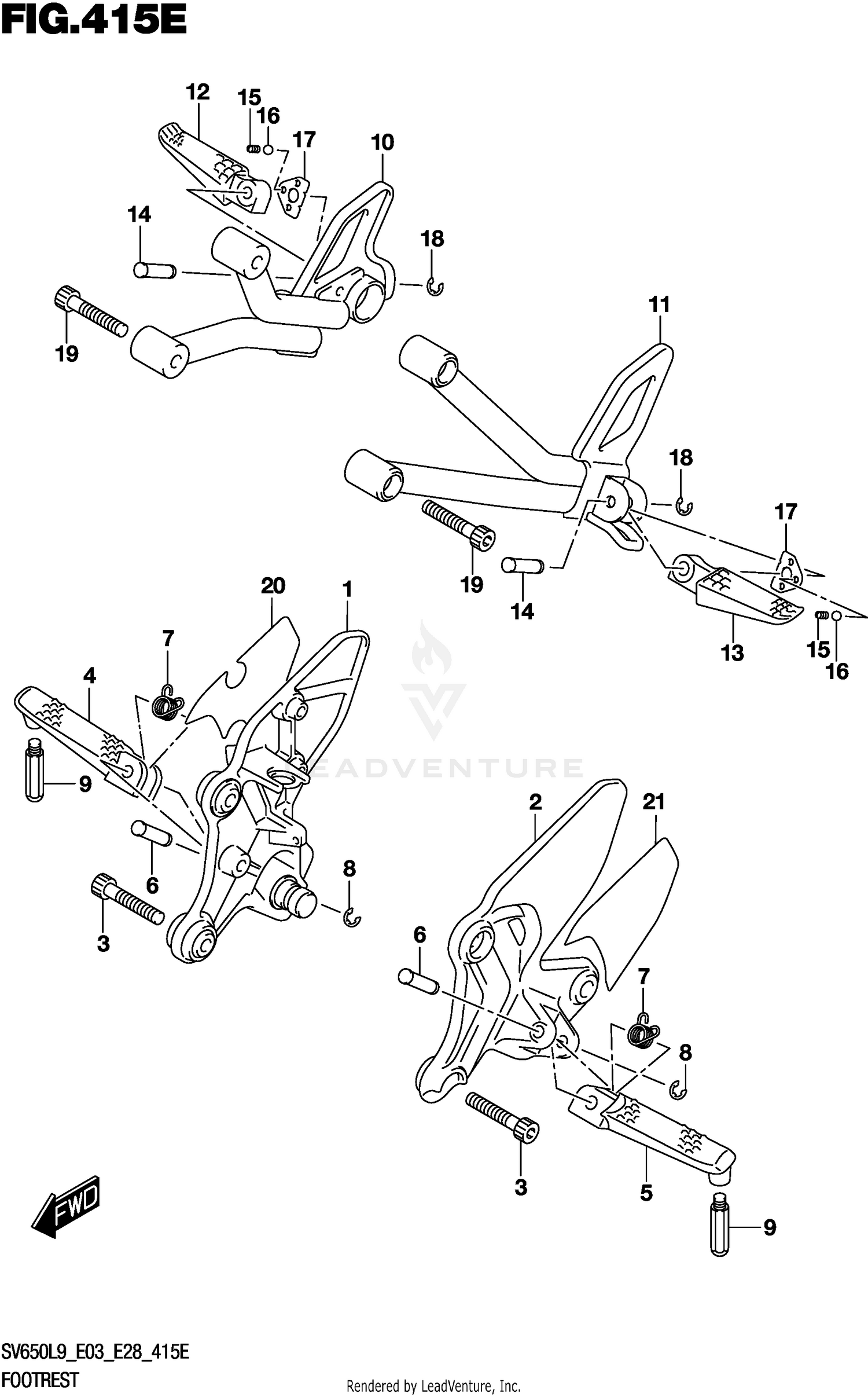

FOOTREST (SV650XAL9 E28)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 43510-18K10 | BRACKET,FOOTREST RH Price: $181.85 |
| 2 | 43521-18K10 | BRACKET,FOOTREST LH Price: $160.33 |
| 3 | 09106-08186 | BOLT (8X23) Price: $4.16 |
| 4 | 43516-18K10 | BAR,FRONT FOOTREST,R Price: $59.67 |
| 5 | 43526-18K30 | BAR,FRONT FOOTR This part replaces 43526-18K10. Price: $47.09 |
| 6 | 09208-08019 | PIN Price: $3.36 |
| 7 | 09448-14046 | SPRING Price: $5.09 |
| 8 | 08332-1106A | E RING Price: $1.73 |
| 9 | 43576-48B70 | BOLT,BANK SENSOR Price: $12.23 |
| 10 | 43810-18K00 | BRACKET,PILLION FTRST RH Price: $178.37 |
| 11 | 43820-18K00 | BRACKET,PILLION FTRST LH Price: $160.56 |
| 15 | 09440-05005 | SPRING Price: $1.65 |
| 16 | 06111-07004 | BALL Price: $1.48 |
| 18 | 08332-1106A | E RING Price: $1.73 |
| 19 | 09106-08074 | BOLT (8X40) Price: $4.76 |
| 20 | 43571-18K00 | TAPE,FR FOOTREST NO.1 RH Price: $20.78 |
