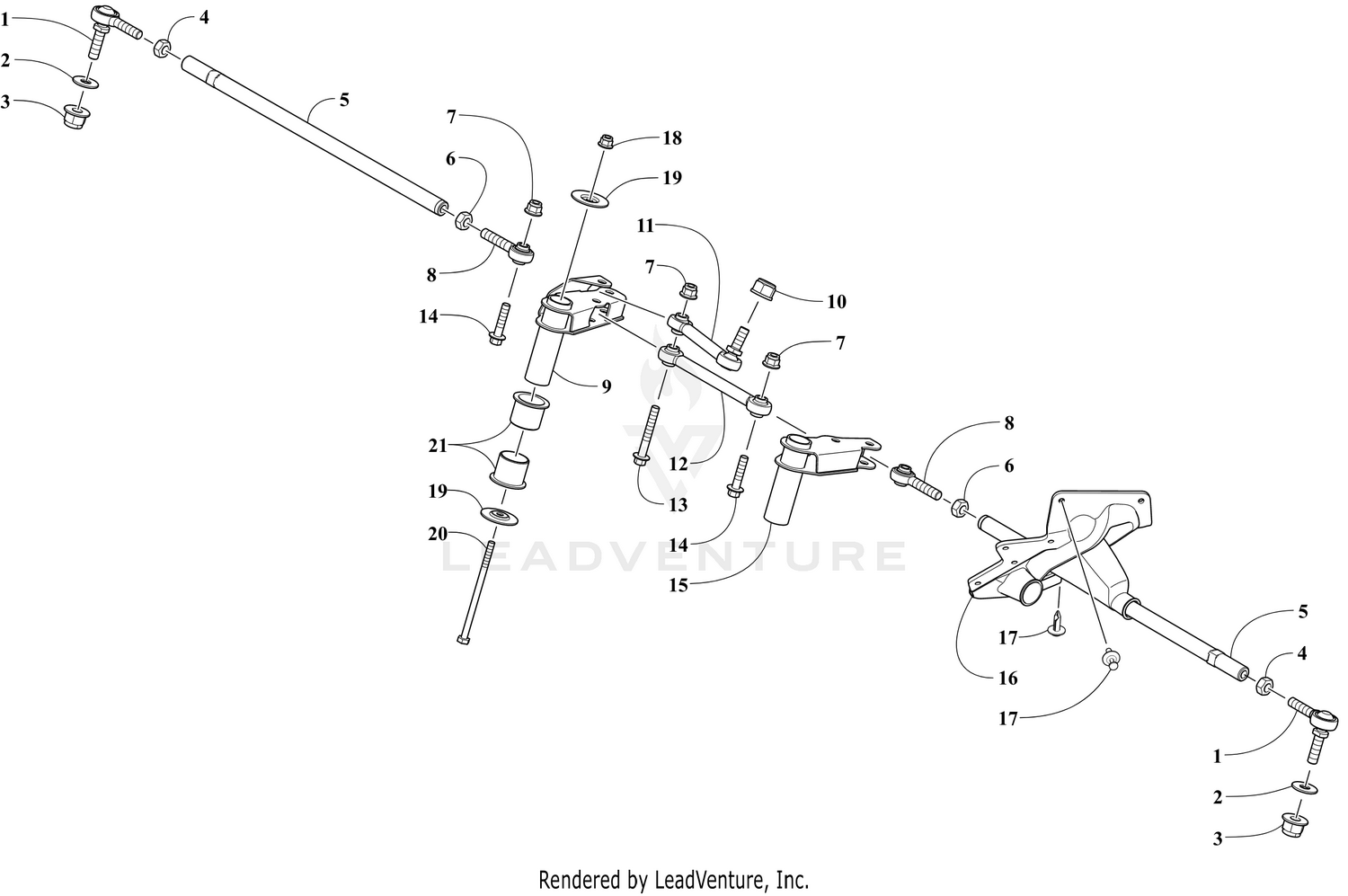

TIE ROD ASSEMBLY [106147]

Parts (21)

Ref	Part Number	Description
1	1605-019	Ball Joint, Steering - Left-Hand Thread Price: $57.95
2	1623-803	Washer Price: $1.08
3	8427-002	Nut, Lock Price: $1.08
4	0423-013	Nut, Hex - Left-Hand Thread Price: $0.49
5	1605-133	Tube, Tie Rod - Spindle Price: $6.95
6	8420-002	Nut, Hex - Right-Hand Thread Price: $0.70
7	8427-802	Nut, Lock Price: $0.58
8	1605-032	Ball Joint, Tie Rod - Right-Hand Thread Price: $46.95
9	1705-464	Arm, Steering Price: $86.95
10	2623-202	Nut, Lock w/Washer Price: $1.32
11	1605-129	Tie Rod, Steering Price: $188.95
12	1605-134	Tie Rod, Steering Price: $184.95
13	8408-855	Screw, Cap Price: $2.05
14	8408-835	Screw, Cap Price: $2.30
15	1705-466	Arm, Steering Price: $52.95
16	1605-028	Boot, Steering - Right Price: $36.95
16	1605-029	Boot, Steering - Left Price: $36.95
17	0623-243	Clip, Retaining Price: $1.70
18	8427-602	Nut, Hex Price: $0.23
19	1623-807	Washer Price: $1.70
20	8402-600	Screw, Cap Price: $1.70
