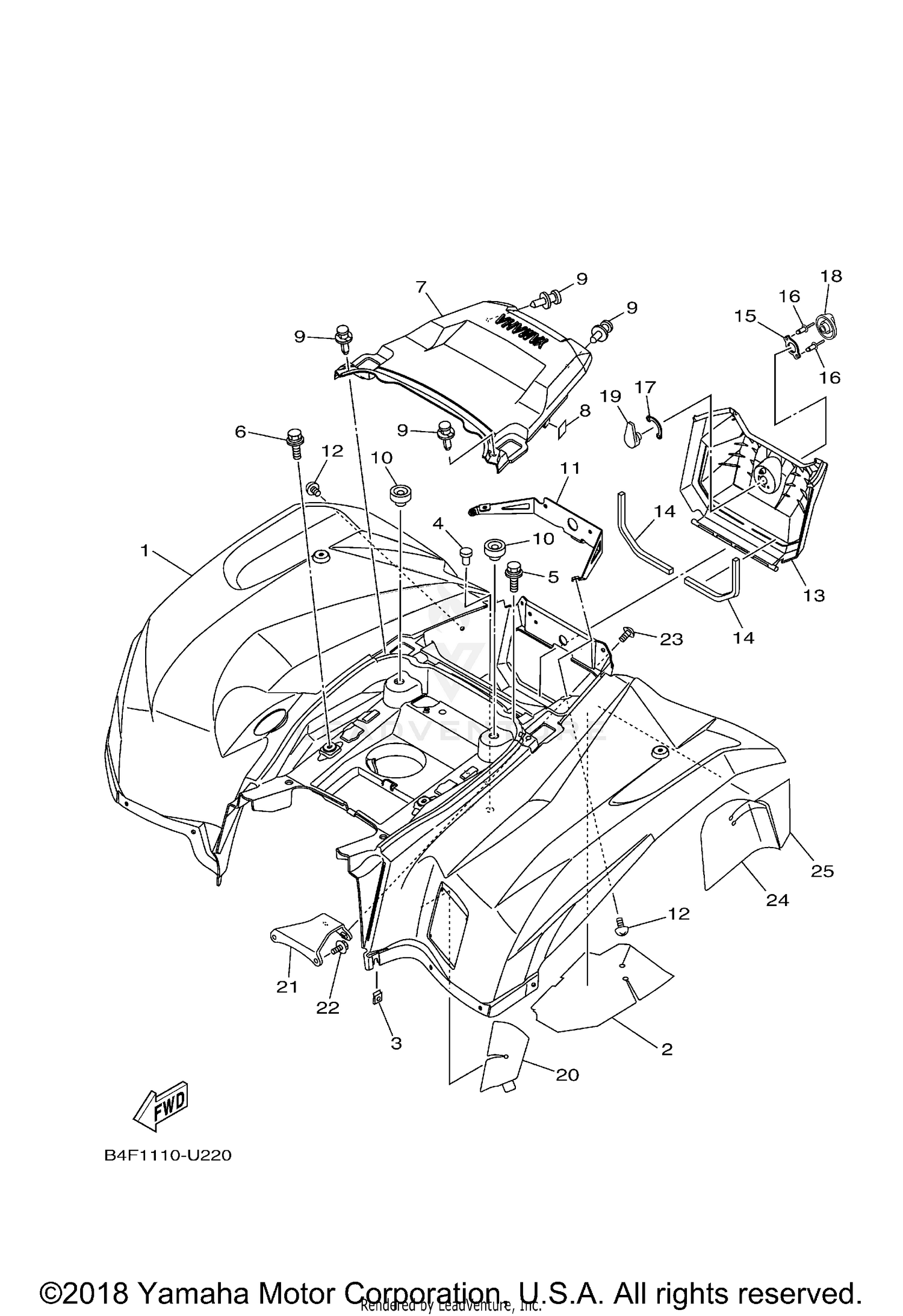

| Ref | Part Number | Description |
|---|
| 1 |
B4F-F1600-51-00 |
REAR FENDER ASSY Price: $277.99 |
| 2 |
2UD-21652-00-00 |
PROTECTOR Price: $31.99 |
| 3 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 4 |
90605-502U1-00 |
PLUG, BLIND Price: $6.99 |
| 5 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 6 |
90119-06152-00 |
BOLT, WITH WASHER Price: $3.55 |
| 7 |
2UD-F1651-00-00 |
COVER, REAR FENDER Price: $16.49 |
| 8 |
B4F-F1669-01-00 |
SEAL This part replaces B4F-F1669-00-00. Price: $1.25 |
| 9 |
90269-07010-00 |
RIVET Price: $4.70 |
| 10 |
90480-16807-00 |
GROMMET Price: $1.40 |
| 11 |
2UD-F139T-00-00 |
BRACKET, COVER Price: $29.99 |
| 12 |
90154-05021-00 |
SCREW, BINDING Price: $9.49 |
| 13 |
2UD-F160F-00-00 |
LID Price: $10.49 |
| 14 |
2UD-F16A2-01-00 |
SEAL, 2 This part replaces 2UD-F16A2-00-00. Price: $2.40 |
| 15 |
1XD-F1515-00-00 |
WASHER, SPECIAL Price: $1.15 |
| 16 |
90267-24143-00 |
RIVET, BLIND Price: $9.49 |
| 17 |
1XD-F1516-00-00 |
WASHER, SPECIAL 2 Price: $2.05 |
| 18 |
1XD-2837G-00-00 |
LOCK 1 Price: $4.40 |
| 19 |
1XD-2837H-00-00 |
LOCK 2 Price: $2.90 |
| 20 |
B16-F1669-02-00 |
SEAL This part replaces B16-F1669-01-00. Price: $3.80 |
| 21 |
2UD-F1613-00-00 |
STAY, FENDER 1 Price: $5.99 |
| 22 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 23 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
| 24 |
2UD-216A3-00-00 |
SEAL, 3 Price: $38.99 |
