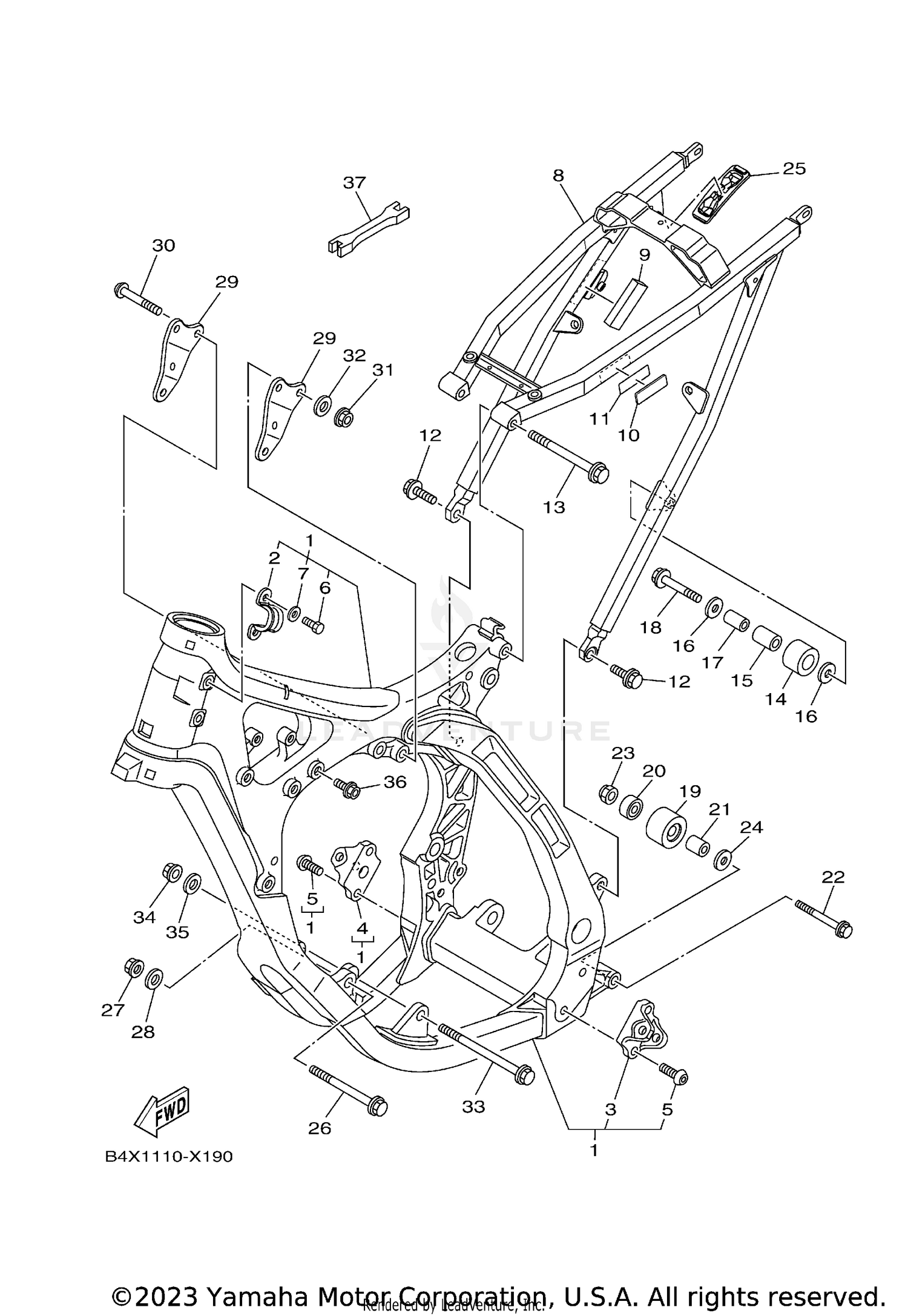

| Ref | Part Number | Description |
|---|
| 1 |
1SR-21101-00-00 |
FRONT FRAME COMP. Price: $1,996.99 |
| 2 |
1C3-21336-00-00 |
CLAMP, WIRE HARNESS 2 Price: $11.99 |
| 3 |
1C3-21447-10-00 |
BRACKET, FOOTREST Price: $41.99 |
| 4 |
1C3-21448-10-00 |
BRACKET, FOOTREST Price: $41.99 |
| 5 |
90149-10033-00 |
SCREW This part replaces 90149-10031-00. Price: $6.49 |
| 6 |
97017-05012-00 |
BOLT, HEXAGON This part replaces 97004-05012-00. Price: $9.49 |
| 7 |
92990-05600-00 |
WASHER, PLATE This part replaces 92904-05600-00. Price: $0.80 |
| 8 |
B4X-21190-00-00 |
REAR FRAME COMP. Price: $554.99 |
| 9 |
1KT-21268-00-00 |
SEAL Price: $2.70 |
| 10 |
BCR-23472-00-00 |
PROTECTOR Price: $2.35 |
| 11 |
BCR-21566-00-00 |
TAPE, 1 Price: $8.49 |
| 12 |
90105-08085-00 |
BOLT, FLANGE Price: $8.49 |
| 13 |
90105-08132-00 |
BOLT, FLANGE Price: $6.49 |
| 14 |
30X-22178-00-00 |
TENSIONER Price: $38.99 |
| 15 |
4V4-22184-00-00 |
BUSH Price: $4.80 |
| 16 |
90201-08045-00 |
WASHER, PLATE Price: $6.49 |
| 17 |
90387-08041-00 |
COLLAR Price: $9.49 |
| 18 |
95E32-08040-00 |
BOLT, FLANGE DEEP RECESS Price: $0.95 |
| 19 |
3JD-22178-20-00 |
TENSIONER Price: $47.99 |
| 20 |
93300-60804-00 |
BEARING This part replaces 93300-60839-00. Price: $13.49 |
| 21 |
90387-086N4-00 |
COLLAR Price: $10.49 |
| 22 |
95E32-08060-00 |
BOLT, FLANGE DEEP Price: $2.45 |
| 23 |
95617-08100-00 |
NUT, U This part replaces 90185-08009-00. Price: $10.49 |
| 24 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 25 |
B4X-2117F-00-00 |
COVER Price: $12.49 |
| 26 |
90105-10175-00 |
BOLT, FLANGE Price: $11.49 |
| 27 |
90179-10658-00 |
NUT Price: $10.49 |
| 28 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 29 |
B4X-21425-00-00 |
BRACKET, REAR UPPE Price: $53.99 |
| 30 |
90111-08028-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 31 |
90179-08674-00 |
NUT Price: $8.49 |
| 32 |
90201-08055-00 |
WASHER, PLATE Price: $9.49 |
| 33 |
90105-10176-00 |
BOLT, FLANGE Price: $13.49 |
| 34 |
90179-10658-00 |
NUT Price: $10.49 |
| 35 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 36 |
1C3-21244-20-00 |
NUT This part replaces 1C3-21244-10-00. Price: $17.99 |
