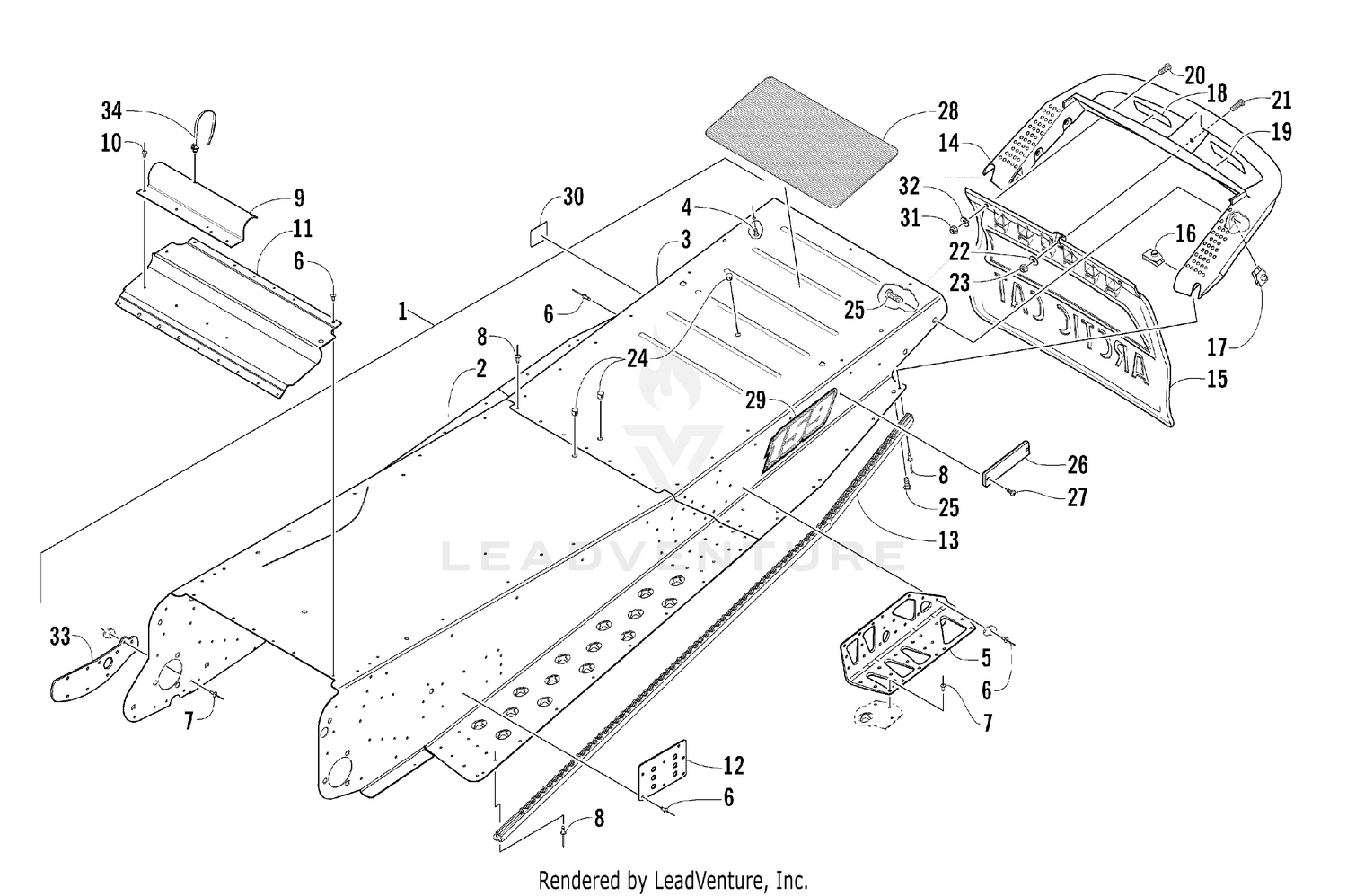

TUNNEL AND REAR BUMPER [58952]

Parts (34)

Ref	Part Number	Description
2	3606-307	BODY,FRONT-L/C-FORMED Price: $216.95
3	3606-504	BODY,REAR-159" W/STUDS-ASSY Price: $519.95
4	1623-078	Stud, Self-Clinching Price: $0.79
5	1706-917	Bracket, Suspension Mounting - Left - Rear Price: $90.67
5	1706-918	Bracket, Suspension Mounting - Right - Rear Price: $90.67
6	0123-418	Rivet, Solid Price: $0.84
6	0623-072	Rivet, Solid Price: $0.09
6	0623-806	Rivet Price: $0.35
7	8060-448	Rivet Price: $0.48
8	8060-484	Rivet Price: $0.46
9	0607-751	BRKT,PROTECTOR-MAIN HARNESS Price: $12.95
10	0623-166	Rivet Price: $1.20
11	2606-849	Cover, Driven Shaft Price: $85.95
12	2706-116	PLATE, BODY-REINFORCEMENT-PTD BLK Price: $8.43
13	2606-966	Roll, Tunnel - Right Price: $168.95
13	2606-967	Roll, Tunnel - Left Price: $168.95
14	1606-200	Bumper, Rear Price: $126.95
15	2606-460	Snowflap Price: $103.95
16	0623-427	U-Nut Price: $8.43
17	0623-771	U-Nut Price: $1.80
20	8017-579	Screw, Machine Price: $8.43
21	8017-580	Screw, Machine Price: $2.30
22	8050-217	Washer, Flat Price: $0.24
23	8040-366	Nut, Lock Price: $0.35
24	0623-562	Plug Price: $1.66
25	8017-581	SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y Price: $7.23
26	0606-029	Reflector - Red Price: $14.49
27	0623-269	Clip, Retaining Price: $1.32
28	2606-134	Pad, Rubber Price: $24.95
29	5611-172	Decal, "159" - Tunnel Price: $46.95
30	0411-053	Decal, CE Price: $102.58
31	8041-366	Nut, Lock Price: $0.35
32	0623-184	Washer Price: $1.20
33	2606-905	Plate, Backing - Dropcase Guard Price: $33.95
