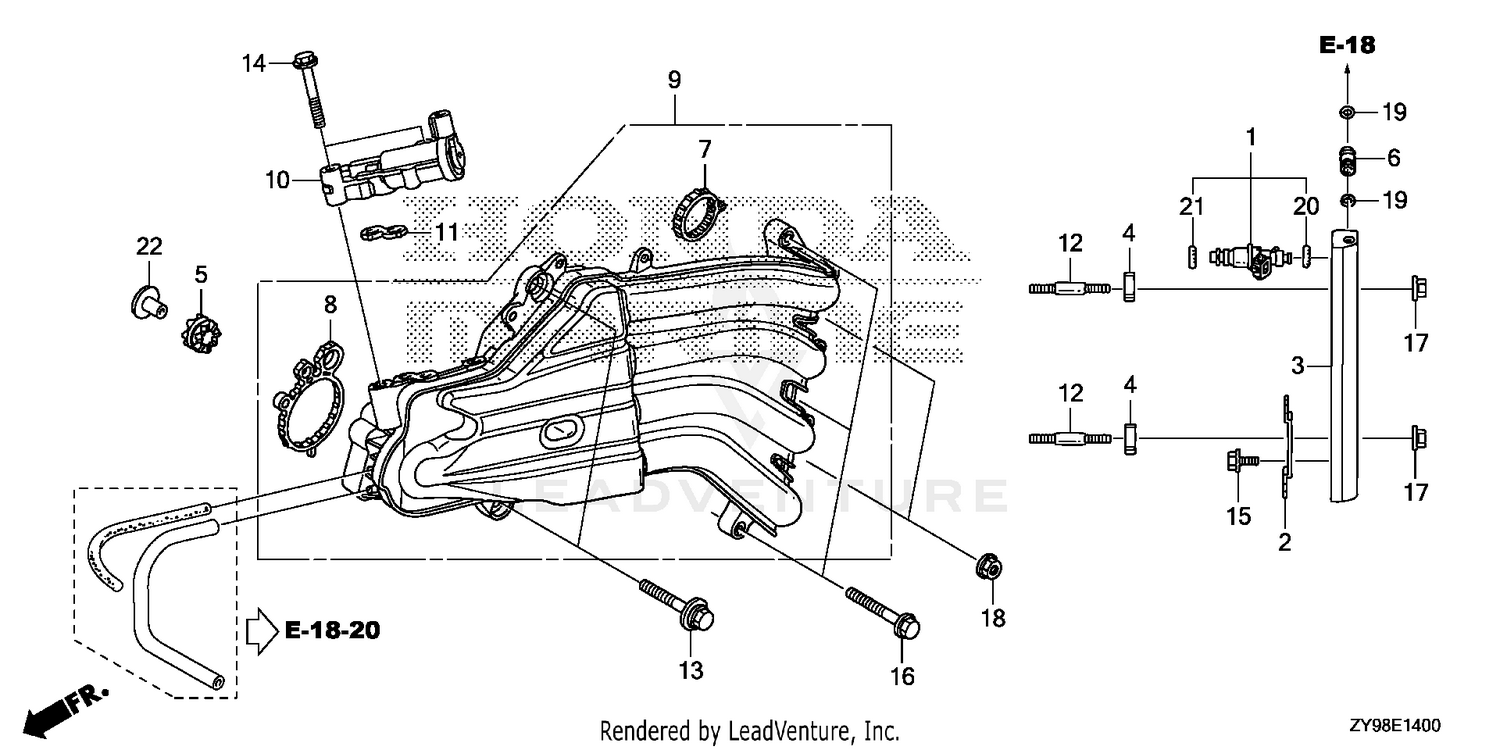

| Ref | Part Number | Description |
|---|
| 1 |
16450-ZY9-003 |
INJECTOR ASSY., FUEL Price: $100.35 |
| 2 |
16451-ZY9-000 |
CLIP, INJECTOR Price: $8.50 |
| 3 |
16620-ZY9-010 |
LINE, FUEL Price: $188.54 |
| 4 |
16638-PH3-S00 |
INSULATOR, FUEL PIPE Price: $6.98 |
| 5 |
16733-ZY9-000 |
GROMMET, VAPOR SEPARATOR Price: $9.80 |
| 6 |
16752-ZY3-A00 |
JOINT, FUEL PIPE Price: $10.06 |
| 7 |
17105-PWA-007 |
GASKET, IN. MANIFOLD Price: $19.84 |
| 8 |
17109-ZY6-000 |
GASKET, THROTTLE BODY Price: $33.40 |
| 9 |
17110-ZY9-003 |
MANIFOLD, INLET Price: $1,096.30 |
| 10 |
36550-ZY9-003 |
VALVE ASSY., ELECTRONIC AIR CONTROL Price: $305.22 |
| 11 |
36551-ZY6-003 |
GASKET, ELECTRONIC AIR CONTROL VALVE Price: $14.88 |
| 13 |
90014-ZY9-M01 |
BOLT-WASHER (8X35) Price: $3.74 |
| 17 |
90201-ZZ5-M01 |
NUT, FLANGE (6MM) Price: $1.42 |
| 19 |
91301-MJ0-003 |
O-RING (7.8X1.9) (ARAI) Price: $2.86 |
| 20 |
91301-PLC-000 |
O-RING (7.47X3.6) Price: $4.68 |
| 21 |
91302-PNA-003 |
O-RING (7.45X3.61) (NOK) Price: $3.66 |
