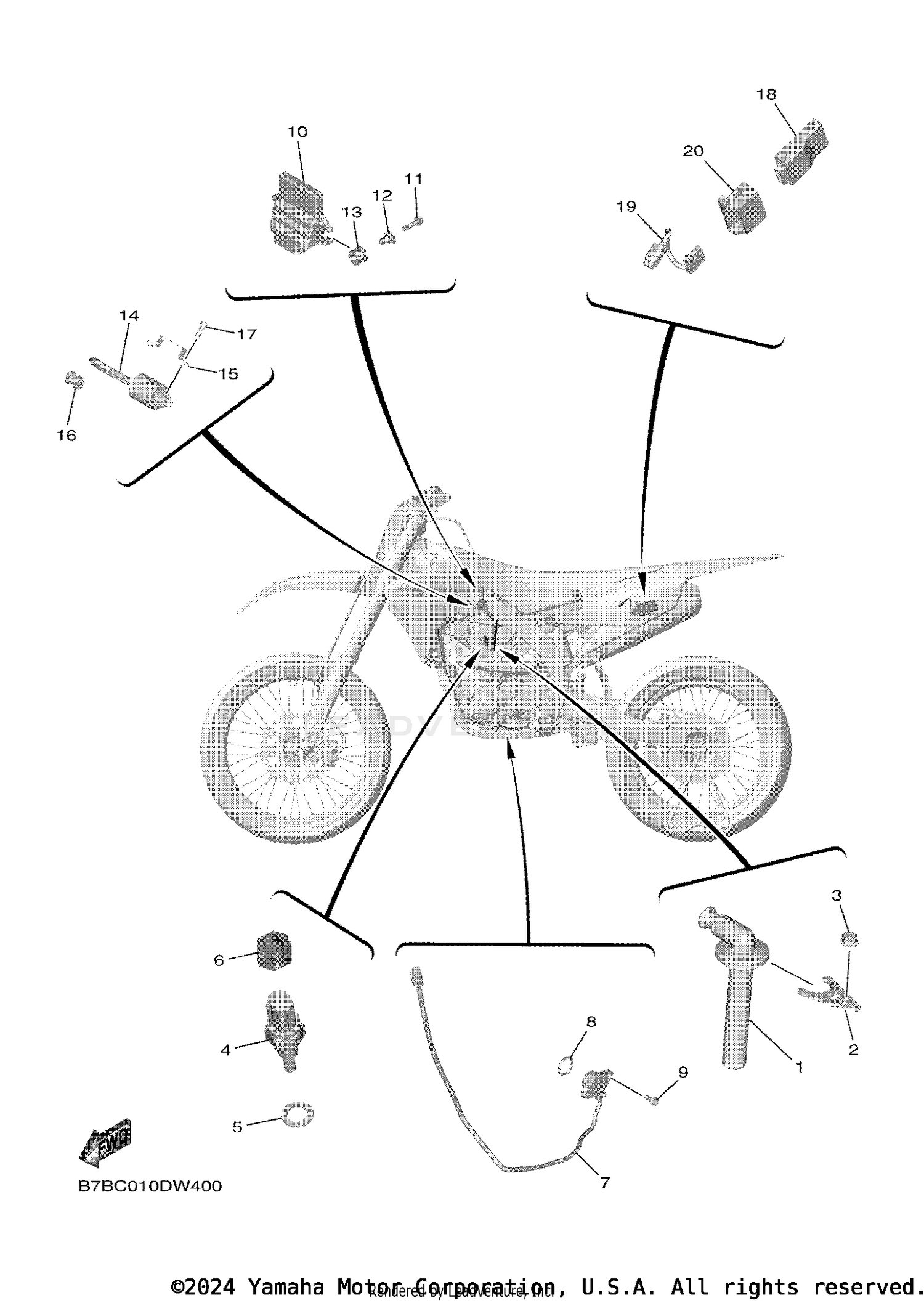

ELECTRICAL 1
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1SM-82370-01-00 | PLUG CAP ASSY This part replaces 1SM-82370-00-00. Price: $103.99 |
| 2 | BR9-11395-00-00 | HOLDER Price: $6.49 |
| 3 | 95702-06500-00 | NUT, WITH WASHER Price: $2.60 |
| 4 | 52B-H3591-00-00 | THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 5 | 90430-10004-00 | GASKET Price: $7.49 |
| 6 | B2W-82915-00-00 | HOLDER, LEVER UNDER Price: $8.49 |
| 7 | B11-82540-01-00 | NEUTRAL SWITCH ASSY This part replaces B11-82540-00-00. Price: $65.99 |
| 8 | 93210-21001-00 | O-RING Price: $6.49 |
| 9 | 90110-05028-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05062-00. Price: $9.49 |
| 10 | B7B-8591A-60-00 | ENGINE CONTROL UNIT ASSY Price: $588.99 |
| 11 | 90105-05005-00 | BOLT, FLANGE Price: $1.20 |
| 12 | 90387-05048-00 | COLLAR Price: $6.49 |
| 13 | 90480-13029-00 | GROMMET Price: $6.49 |
| 14 | B7B-82310-03-00 | IGNITION COIL ASSY This part replaces B7B-82310-02-00. Price: $60.99 |
| 15 | BR9-8231U-00-00 | CORE, SIDE Price: $23.99 |
| 16 | 90480-11015-00 | GROMMET Price: $3.95 |
| 17 | 95E32-06016-00 | BOLT, FLANGE DEEP RECESS Price: $0.65 |
| 18 | BR9-85810-04-00 | COMMUNICATION CONT. UNIT ASSY This part replaces BR9-85810-00-00. Price: $501.99 |
| 19 | BR9-85721-00-00 | WIRE, LEAD Price: $46.99 |
