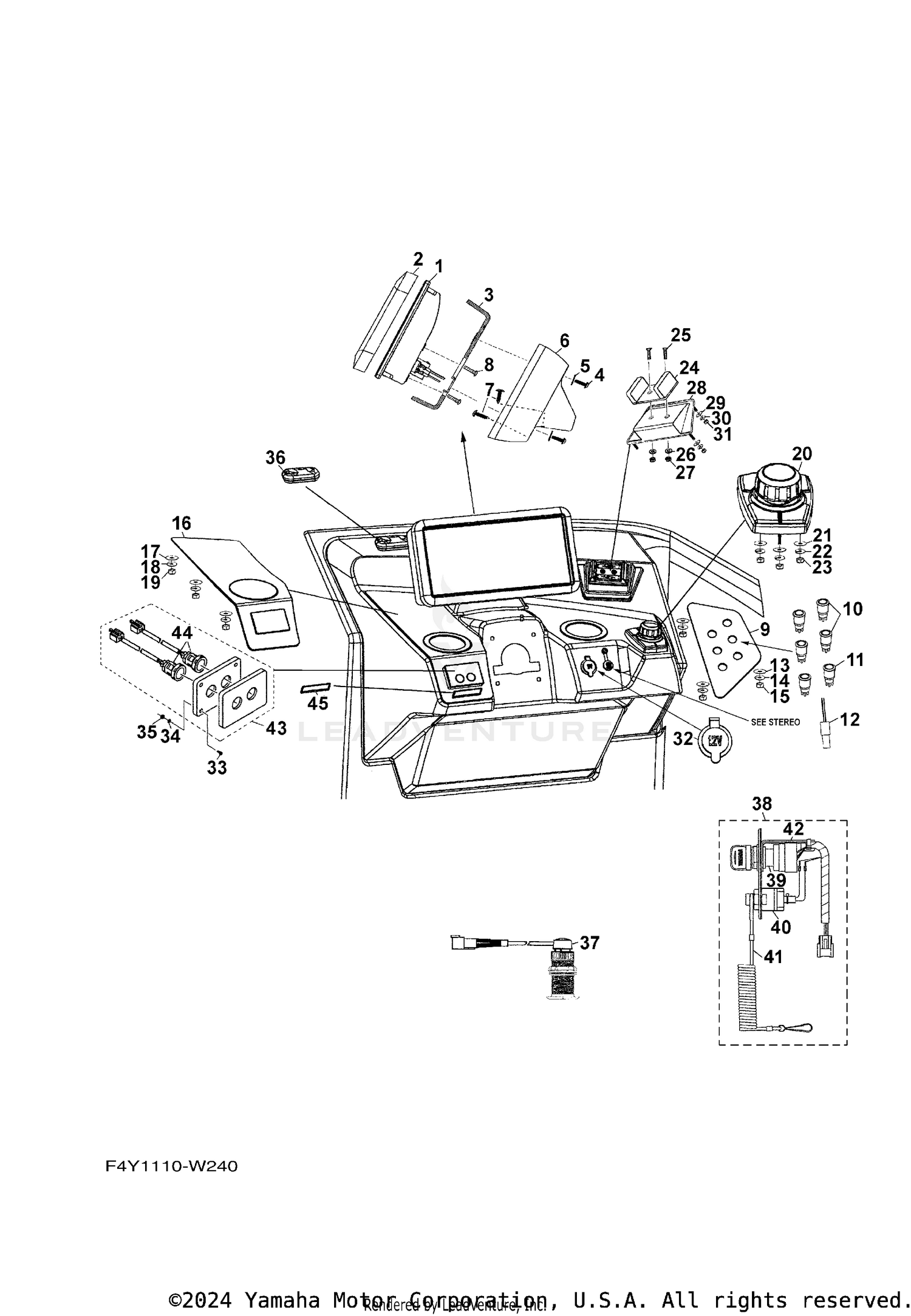

| Ref | Part Number | Description |
|---|
| 1 |
F4Y-U8K12-01-00 |
DISPLAY UNIT Price: $3,830.99 |
| 2 |
F4Y-U15A1-10-00 |
BEZEL ASSY. This part replaces F4Y-U15A1-00-00. Price: $293.99 |
| 3 |
F4Y-U591F-00-00 |
BRACKET, CASE Price: $156.99 |
| 4 |
90111-04S20-00 |
BOLT,HEX. SOCKET BUTTON Price: $5.99 |
| 5 |
90209-14SA5-00 |
WASHER Price: $0.45 |
| 6 |
F4Y-U8K1R-00-00 |
BRACKET, DISPLAY U Price: $881.99 |
| 7 |
90160-12S16-00 |
SCREW, ROUND TAPPING Price: $5.99 |
| 8 |
90149-08S20-00 |
SCREW Price: $4.99 |
| 9 |
F4Y-U82B5-00-00 |
PANEL, SWITCH 1 Price: $573.99 |
| 10 |
F4X-U2336-01-00 |
SWITCH,FLAP Price: $110.99 |
| 11 |
F4Y-U2336-00-00 |
SWITCH,FLAP Price: $149.99 |
| 12 |
F4Y-U827F-00-00 |
WIRE HARNESS 4 Price: $471.99 |
| 13 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 14 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 15 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 16 |
F4Y-U885D-00-00 |
PANEL, SIDE LH Price: $522.99 |
| 17 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 18 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 19 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 20 |
F4Y-U8313-00-00 |
START BUTTON COMP. Price: $512.99 |
| 21 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 22 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 23 |
95680-06100-00 |
NUT, U Price: $8.70 |
| 24 |
F4C-U827C-00-00 |
HOLDER Price: $176.99 |
| 25 |
90151-14S12-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 26 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 27 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 28 |
F4X-U2757-00-00 |
HOLDER Price: $186.99 |
| 29 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 30 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 31 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 32 |
F5V-U8284-00-00 |
RECEPTACLE, ACCESSOR Price: $66.99 |
| 33 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 34 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 35 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 36 |
F4Y-U8K1L-00-00 |
ANTENA, GPS Price: $575.99 |
| 37 |
F2D-U8K1W-01-00 |
TRANSDUCER Price: $544.99 |
| 38 |
F3F-82570-00-00 |
PANEL SWITCH ASSY Price: $358.99 |
| 39 |
F3F-82510-00-00 |
MAIN SWITCH ASSY Price: $127.99 |
| 40 |
688-82575-02-00 |
ENGINE STOP SWITCH ASSY Price: $37.55 |
| 41 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 42 |
64D-82581-00-00 |
STAY, CORD CLAMP Price: $25.00 |
| 43 |
F3F-82570-10-00 |
PANEL SWITCH ASSY Price: $376.49 |
| 44 |
F3F-8259E-00-00 |
SWITCH ASSY Price: $62.99 |
