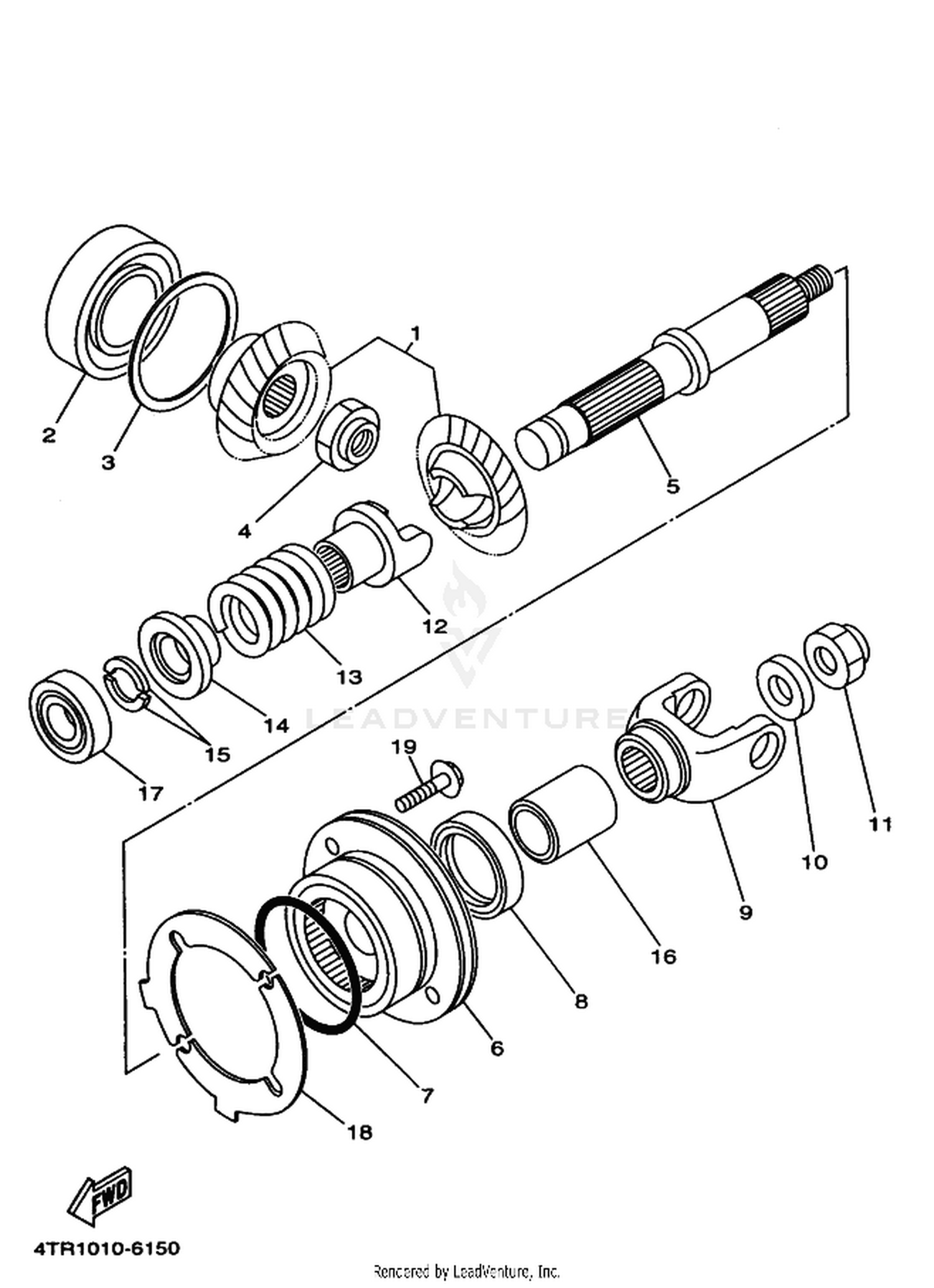

15 MIDDLE DRIVE GEAR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22U-Y1754-00 | MIDDLE GEAR COMP. Price: Call Us |
| 2 | 93306-20711 | BEARING Price: Call Us |
| 4 | 90179-18396 | NUT Price: Call Us |
| 5 | 4VR-17553-00 | SHAFT, MIDDLE DRIVEN Price: Call Us |
| 6 | 4VR-W1752-00 | HOUSHING COMP. Price: Call Us |
| 7 | 93210-71360 | O-RING Price: Call Us |
| 8 | 93101-35097 | OIL SEAL Price: Call Us |
| 9 | 22U-17556-00 | YOKE, JOINT Price: Call Us |
| 10 | 90201-14633 | WASHER, PLATE Price: Call Us |
| 11 | 90185-14070 | NUT, SELF-LOCKING Price: Call Us |
| 12 | 4VR-17527-00 | CAM, DRIVEN Price: Call Us |
| 13 | 90501-60716 | SPRING, COMPRESSION Price: Call Us |
| 14 | 22U-17524-00 | HOLDER Price: Call Us |
| 15 | 3H5-17529-00 | WASHER, THRUST Price: Call Us |
| 16 | 90387-2511R | COLLAR Price: Call Us |
| 17 | 93306-00401 | BEARING Price: Call Us |
