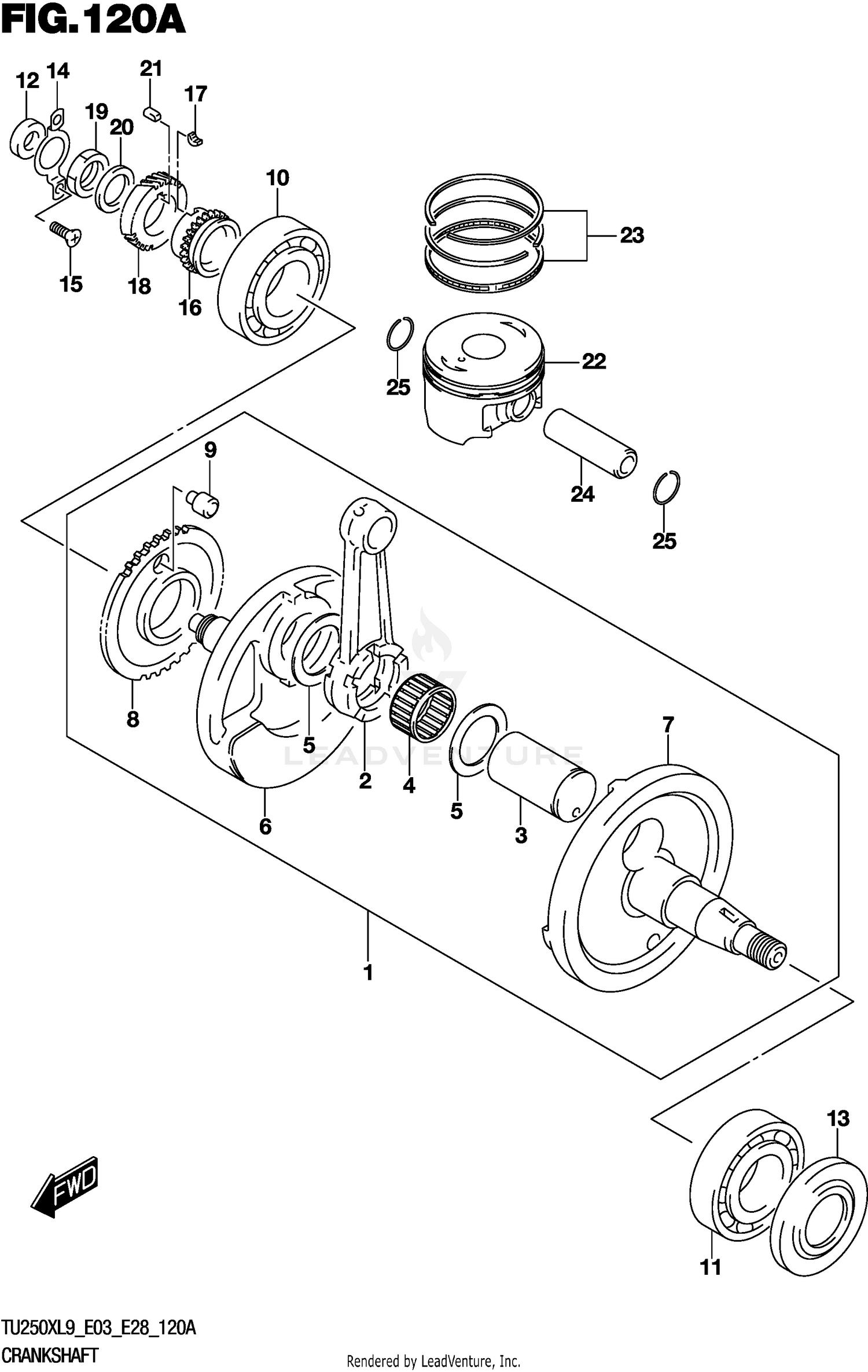

CRANKSHAFT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12200-26G11 | CRANKSHAFT ASSY Price: $814.95 |
| 13 | 12521-38300 | WASHER Price: $6.95 |
| 14 | 12548-38200 | RETAINER Price: $5.20 |
| 15 | 02122-0510A | SCREW Price: $1.48 |
| 16 | 12731-26G00 | SPROCKET Price: $48.76 |
| 17 | 12749-32400 | KEY Price: $15.83 |
| 18 | 21111-38200 | GEAR Price: $72.30 |
| 19 | 09140-20013 | NUT Price: $5.26 |
| 20 | 09164-20003 | WASHER Price: $4.04 |
| 21 | 09421-07002 | KEY Price: $3.18 |
| 22 | 12111-26G00-0F0 | PISTON (YELLOW) Price: $126.88 |
| 23 | 12140-49280 | RING SET Price: $57.39 |
| 24 | 12151-15501 | PIN Price: $18.76 |
