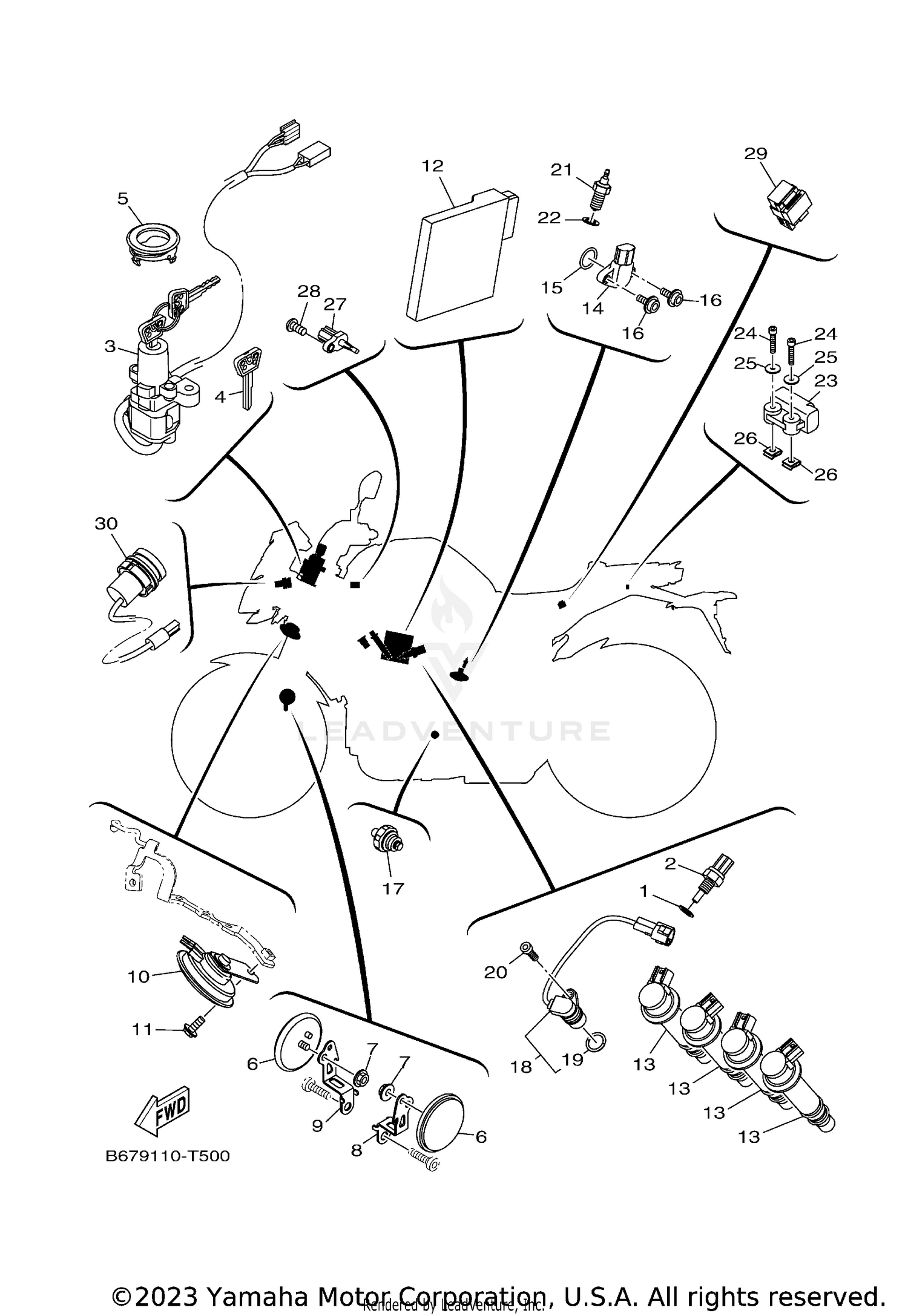

| Ref | Part Number | Description |
|---|
| 1 |
90430-10004-00 |
GASKET Price: $7.49 |
| 2 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 3 |
B67-82501-11-00 |
MAIN SWITCH STEERING LOCK This part replaces B67-82501-10-00. Price: $174.99 |
| 5 |
36P-82552-00-00 |
CAP, SWITCH Price: $16.49 |
| 6 |
4AG-85111-00-00 |
REFLECTOR, FRONT 1 Price: $16.49 |
| 7 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 8 |
2CR-85112-00-00 |
BRACKET, REFLECTOR 1 Price: $24.99 |
| 9 |
2CR-85122-00-00 |
BRACKET, REFLECTOR 2 Price: $28.99 |
| 10 |
B67-83371-00-00 |
HORN Price: $76.99 |
| 11 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 12 |
B67-8591A-51-00 |
ENGINE CONTROL UNIT This part replaces B67-8591A-50-00. Price: $2,013.99 |
| 13 |
B67-82310-00-00 |
IGNITION COIL ASSY Price: $146.99 |
| 14 |
2CR-85899-10-00 |
SENSOR, GEAR POSITION Price: $123.99 |
| 15 |
93210-17008-00 |
O-RING Price: $2.65 |
| 16 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 17 |
1WS-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 1WS-82504-00-00. Price: $76.99 |
| 18 |
5VY-85896-02-00 |
SENSOR, CAM POSITION This part replaces 5VY-85896-01-00. Price: $155.99 |
| 19 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 20 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 21 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 22 |
90430-10148-00 |
GASKET Price: $5.99 |
| 23 |
5PS-82576-02-00 |
SENSOR, LEAN ANGLE This part replaces 5PS-82576-01-00. Price: $96.99 |
| 24 |
91312-04025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.95 |
| 25 |
90201-04030-00 |
WASHER, PLATE Price: $2.40 |
| 26 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 27 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 28 |
97780-50116-00 |
SCREW, TAPPING This part replaces 97702-50516-00. Price: $1.49 |
| 29 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
