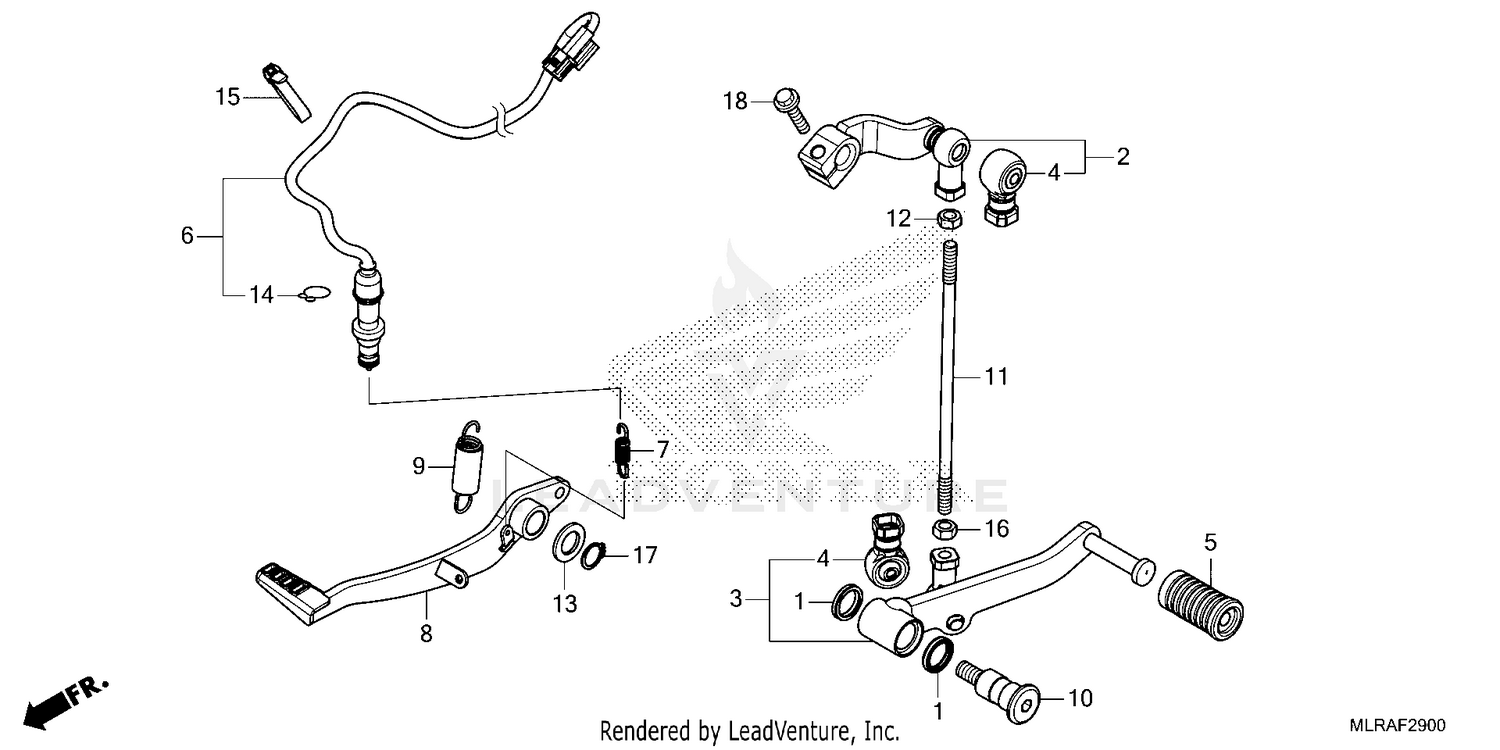

| Ref | Part Number | Description |
|---|
| 1 |
24706-MK3-770 |
RUBBER, DUST SEAL Price: $5.62 |
| 2 |
24710-MGZ-305 |
ARM, GEARSHIFT (COO) This part replaces 24710-MGZ-J00. Price: $20.51 |
| 3 |
24720-MGZ-305 |
PEDAL, GEARSHIFT (COO) This part replaces 24720-MGZ-J00. Price: $21.49 |
| 4 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 5 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 6 |
35350-MLR-D01 |
SWITCH, RR. STOP Price: $18.51 |
| 7 |
35357-HP0-A00 |
SPRING, STOP SWITCH Price: $2.93 |
| 8 |
46500-KYJ-305 |
PEDAL, RR. BRAKE (COO) Price: $23.05 |
| 9 |
46513-KYJ-900 |
SPRING ASSY., BRAKE PEDAL Price: $3.69 |
| 10 |
90113-MGZ-J00 |
BOLT, CHANGE PIVOT Price: $11.18 |
| 11 |
90165-MGZ-J00 |
BOLT, TIE ROD Price: $4.85 |
| 12 |
90301-MGZ-J00 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 13 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 14 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 15 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 16 |
94001-06070-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 17 |
94511-15000 |
CIRCLIP (OUTER) (15MM) Price: $0.78 |
