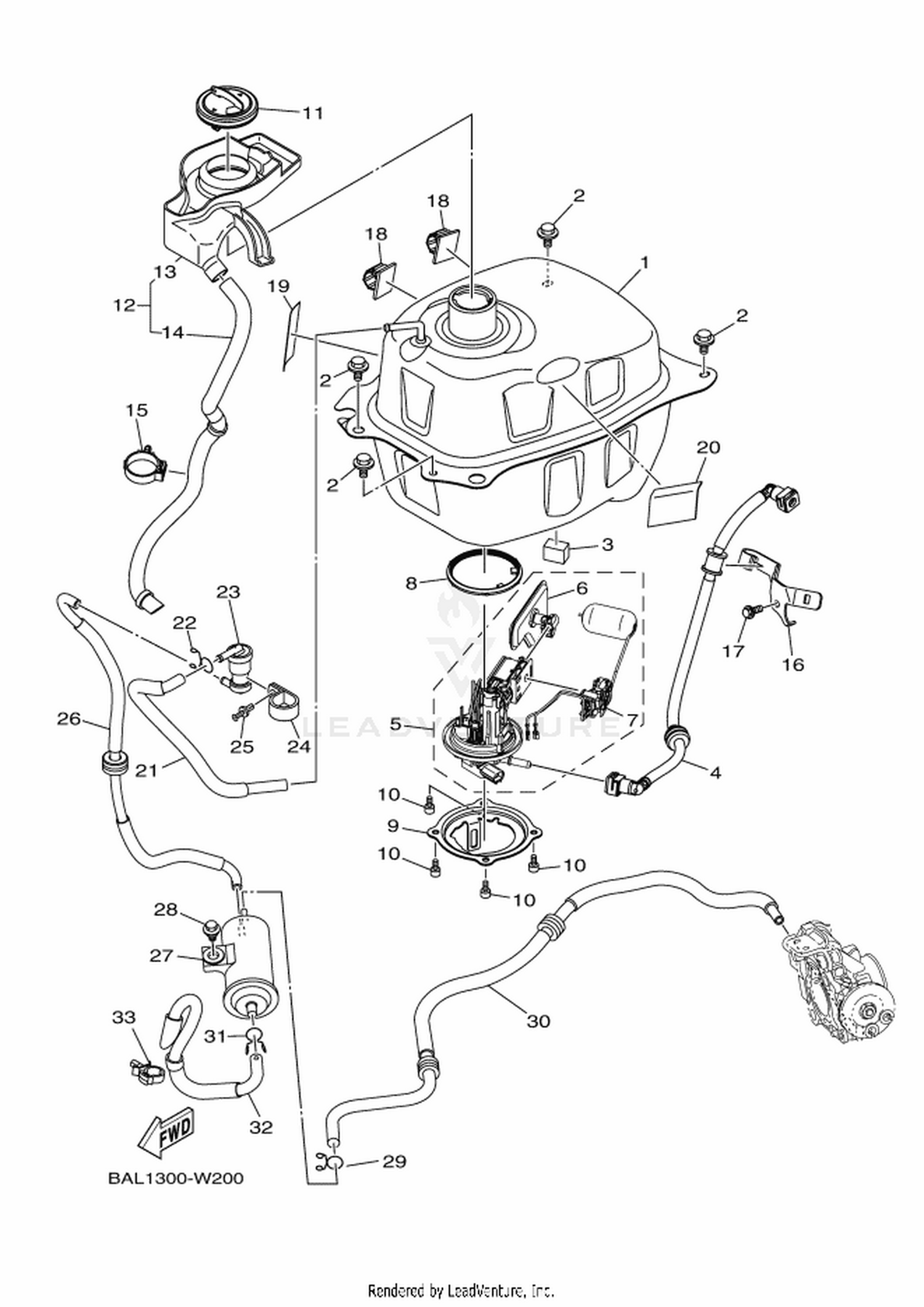

20 FUEL TANK
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B2T-F4110-01 | FUEL TANK COMP. Price: Call Us |
| 2 | 90119-068B7 | BOLT, WITH WASHER Price: Call Us |
| 3 | 90520-15803 | DAMPER, PLATE Price: Call Us |
| 4 | B6H-E3971-00 | PIPE, FUEL 1 Price: Call Us |
| 5 | B6H-E3907-01 | FUEL PUMP COMP. Price: Call Us |
| 8 | 1DB-F414G-01 | SEAL Price: Call Us |
| 9 | B6H-F4491-00 | BRACKET, FUEL PUMP Price: Call Us |
| 10 | 91312-05010 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 11 | B2T-F4610-01 | CAP ASSY Price: Call Us |
| 12 | B6H-F414A-01 | COVER, FILLER Price: Call Us |
| 15 | 90464-30001 | CLAMP Price: Call Us |
| 16 | B6H-F419A-10 | HOLDER Price: Call Us |
| 17 | 95E37-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 18 | 90464-14002 | CLAMP Price: Call Us |
| 19 | 5D9-F414G-00 | SEAL Price: Call Us |
| 20 | 5TP-F139X-00 | DAMPER Price: Call Us |
| 21 | B2T-F4313-00 | PIPE 3 Price: Call Us |
| 22 | 90467-09006 | CLIP Price: Call Us |
| 23 | 2C0-24180-00 | ROLL OVER VALVE ASSY Price: Call Us |
| 24 | 90464-15014 | CLAMP Price: Call Us |
| 25 | 90269-05001 | RIVET Price: Call Us |
| 26 | B2T-F4314-00 | PIPE 4 Price: Call Us |
| 27 | B2T-F4170-00 | CANISTER ASSY Price: Call Us |
| 28 | 90109-068B2 | BOLT Price: Call Us |
| 29 | 90467-08075 | CLIP Price: Call Us |
| 30 | B2T-F4315-00 | PIPE 5 Price: Call Us |
| 31 | 90467-11106 | CLIP Price: Call Us |
| 32 | B2T-F4316-00 | PIPE 6 Price: Call Us |
