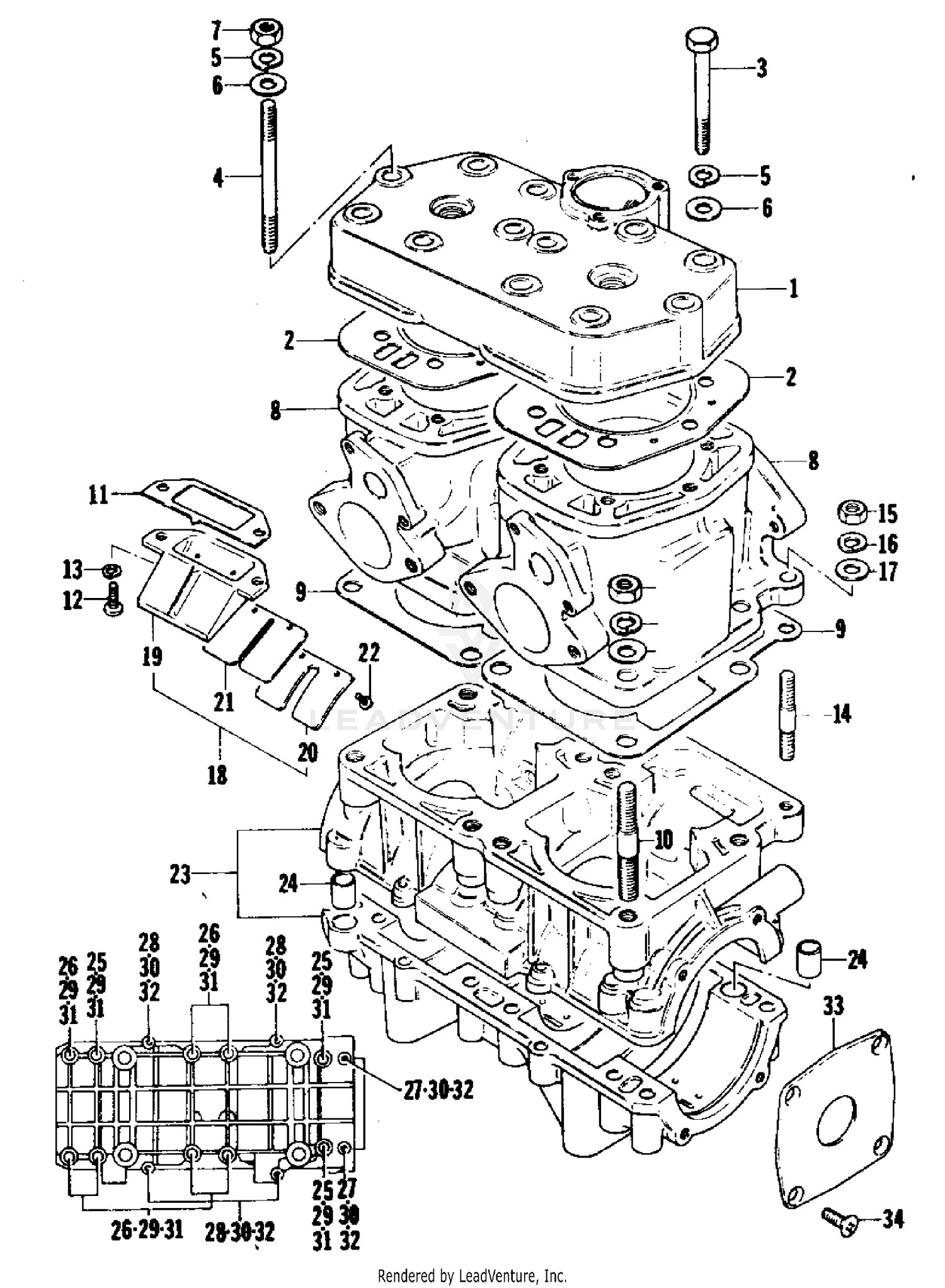

CRANKCASE AND CYLINDER [52588]

Parts (32)

Ref	Part Number	Description
1	3002-869	HEAD, CYLINDER Price: $314.95
2	3002-870	Gasket, Head Price: $16.02
3	3003-051	BOLT, HEX M6-1-45 Price: $2.39
4	3007-558	BOLT,STUD Price: $4.26
5	3007-424	Lock Washer Price: $4.26
6	3007-410	Washer Price: $3.02
7	3008-209	Nut Price: $3.47
8	3003-724	CYLINDER,500 L/C Price: $728.95
9	3003-731	GASKET,CYL BASE Price: $16.95
10	3005-383	STUD BOLT, CYLINDER,10MM Price: $3.79
11	3002-602	Gasket Price: $3.79
12	3002-349	Screw Price: $1.29
13	3004-447	WASHER, LOCK 6MM Price: $3.47
14	3007-520	BOLT,STUD Price: $1.19
15	3007-416	Nut Price: $2.69
16	3004-280	Washer, Lock, 8MM Price: $1.67
17	3423-204	Washer Price: $1.29
18	3003-531	Valve, Reed - Assembly Price: $87.95
19	3002-600	Seat Price: $159.88
21	3002-548	Reed Valve Price: $22.95
22	3002-550	SCREW,PN HD M3-.5X6 W/LW Price: $3.47
23	3002-948	CRANKCASE ASSY 6000 Price: $350.00
24	3002-027	Knock Pin Price: $4.09
25	3006-543	BOLT,M8X1.25X75 Price: $1.99
26	3003-062	BLT HEX M8 1.25X65 Price: $1.69
27	3004-574	BOLT, 6X65 Price: $3.02
28	3003-064	BLT HEX M6-1 X 50 Price: $1.99
29	3004-280	Washer, Lock, 8MM Price: $1.67
30	3004-447	WASHER, LOCK 6MM Price: $3.47
31	3423-204	Washer Price: $1.29
32	3003-023	WASHER, FLAT,5MM Price: $1.34
33	3002-874	Plate Price: $20.95
