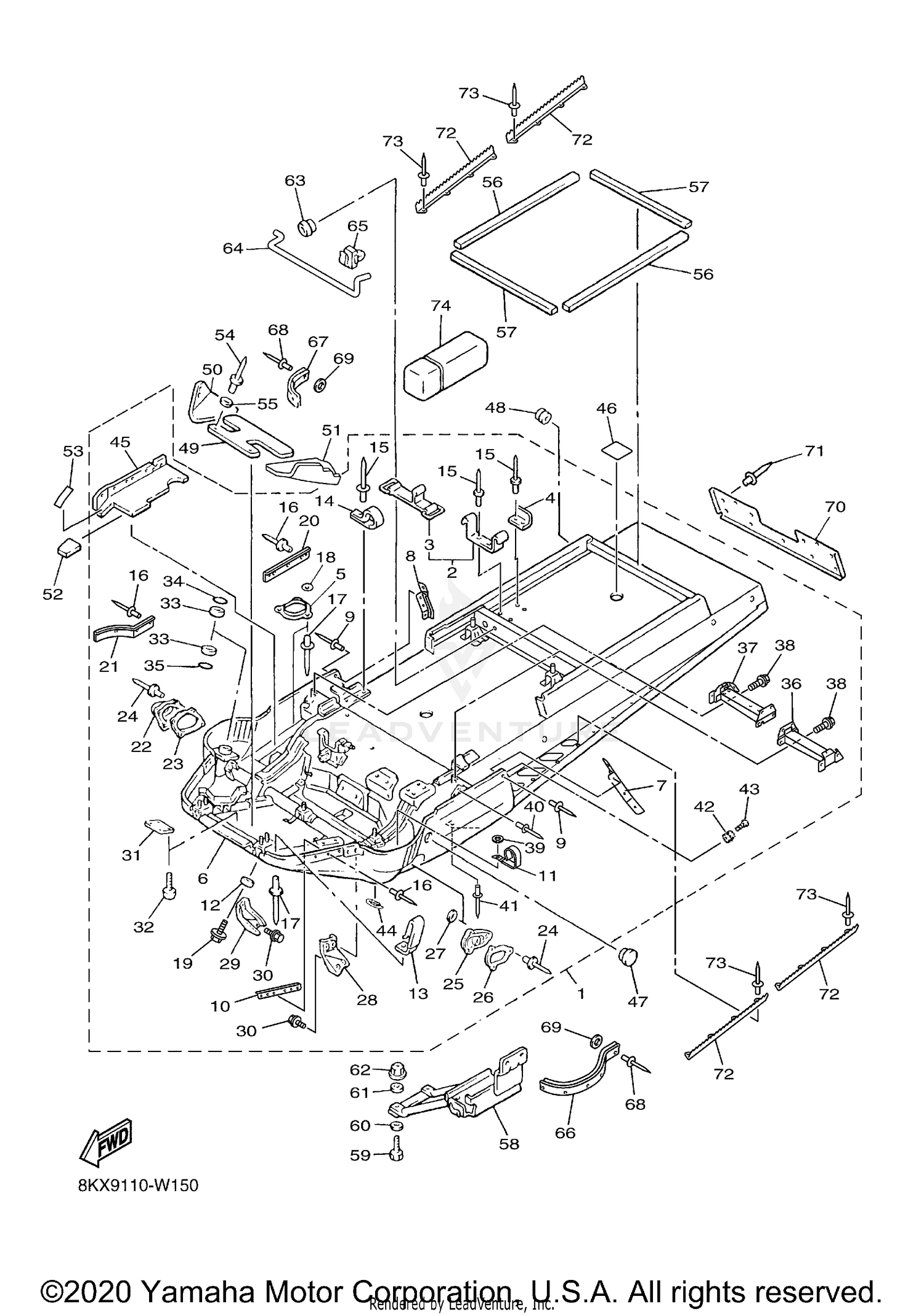

| Ref | Part Number | Description |
|---|
| 1 |
8KX-W2190-03-00 |
FRAME COMP. Price: Call Us |
| 2 |
81E-21945-00-00 |
BRACKET, TOOL BOX FITTING Price: $21.99 |
| 3 |
4J2-82131-01-00 |
BAND, BATTERY Price: $32.99 |
| 4 |
83R-21955-00-00 |
BRACKET, TOOL BOX FITTING Price: $10.49 |
| 5 |
83R-2198F-00-00 |
COVER 1 Price: $14.49 |
| 6 |
8JD-21912-02-00 |
PANEL, SUB FRAME 1 Price: $681.99 |
| 7 |
83R-21986-00-00 |
REINFORCEMENT, FRAME 1 Price: $30.99 |
| 8 |
83R-21987-00-00 |
REINFORCEMENT, FRAME 2 Price: $30.99 |
| 9 |
90267-49152-00 |
RIVET, BLIND (4.9X16.1) Price: $4.05 |
| 10 |
8AC-21965-00-00 |
PATCH 5 Price: $5.49 |
| 11 |
90462-08021-00 |
CLAMP Price: $3.12 |
| 12 |
90387-062M9-00 |
COLLAR This part replaces 90387-081R2-00. Price: $10.49 |
| 13 |
90465-08277-00 |
CLAMP This part replaces 90465-08368-00. Price: $12.49 |
| 14 |
90462-10236-00 |
CLAMP This part replaces 90462-05059-00. Price: $11.49 |
| 15 |
90267-48060-00 |
RIVET, BLIND (4.8X12.9 BLACK) Price: $2.70 |
| 16 |
90267-48051-00 |
RIVET, BLIND (4.8X18.7 BLACK) Price: $2.30 |
| 17 |
90267-48018-00 |
RIVET, BLIND (4.8X18.6 BLACK) Price: $10.49 |
| 18 |
90201-04027-00 |
WASHER, PLATE Price: $2.45 |
| 19 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95827-06016-00. Price: $1.95 |
| 20 |
8AT-77527-02-00 |
PLATE, BACK UP Price: $33.99 |
| 21 |
8JD-77577-00-00 |
PLATE, 1 Price: $17.49 |
| 22 |
8AT-23818-00-00 |
COVER, STEERING Price: $119.99 |
| 23 |
8AT-77526-00-00 |
WASHER 2 Price: $20.99 |
| 24 |
90267-40020-00 |
RIVET, BLIND Price: $0.70 |
| 25 |
8M6-2198F-00-00 |
COVER 1 Price: $26.99 |
| 26 |
8M6-21998-00-00 |
SPACER Price: $3.55 |
| 27 |
90201-04027-00 |
WASHER, PLATE This part replaces 90201-043H5-00. Price: $2.45 |
| 28 |
8AT-2194Y-00-00 |
BRACKET, FRONT GUARD 3 Price: $74.99 |
| 29 |
8AT-2195Y-00-00 |
BRACKET, FRONT GUARD 4 Price: $74.99 |
| 30 |
90105-08066-00 |
BOLT, FLANGE This part replaces 90105-08408-00. Price: $10.49 |
| 31 |
89X-21917-01-00 |
PANEL, SUB FRAME 6 Price: $13.49 |
| 32 |
98907-05014-00 |
SCREW, BIND Price: $9.49 |
| 33 |
90384-36134-00 |
BUSH, BIMETAL FORMED Price: $12.49 |
| 34 |
93102-36232-00 |
OIL SEAL Price: $12.49 |
| 35 |
93103-36117-00 |
OIL SEAL Price: $25.99 |
| 36 |
8AT-23883-01-00 |
BRACKET 3 Price: $61.99 |
| 37 |
8AT-23884-01-00 |
BRACKET 4 Price: $60.99 |
| 38 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 39 |
92990-05200-00 |
WASHER, PLAIN This part replaces 92902-05200-00. Price: $5.00 |
| 40 |
90267-48177-00 |
RIVET, BLIND (4.8X14 YELLOW) Price: $2.60 |
| 41 |
90267-48193-00 |
RIVET,BLIND (4.7X19.5 SILVER) Price: $3.35 |
| 42 |
8M6-77175-00-00 |
HOLDER, LATCH Price: $14.99 |
| 43 |
98907-06035-00 |
SCREW, BIND Price: $10.49 |
| 44 |
93410-52061-00 |
CIRCLIP Price: $14.49 |
| 45 |
8KA-77272-00-00 |
DAMPER, NOISE 12 Price: $58.99 |
| 46 |
8CR-2198J-00-00 |
COVER 3 Price: $3.65 |
| 47 |
90338-44093-00 |
PLUG Price: $17.49 |
| 48 |
90480-15061-00 |
GROMMET Price: $9.49 |
| 49 |
8KA-77271-00-00 |
DAMPER, NOISE 11 Price: $36.99 |
| 50 |
8KA-77273-00-00 |
DAMPER, NOISE 13 Price: $33.99 |
| 51 |
8KX-77274-00-00 |
DAMPER, NOISE 14 Price: $34.99 |
| 52 |
8KA-77275-00-00 |
DAMPER, NOISE 15 Price: $4.50 |
| 53 |
8CR-77165-00-00 |
TRIM 1 Price: $2.85 |
| 54 |
90267-48018-00 |
RIVET, BLIND (4.8X18.6 BLACK) Price: $10.49 |
| 55 |
90201-04027-00 |
WASHER, PLATE Price: $2.45 |
| 56 |
83R-7717E-00-00 |
TAPE 1 Price: $5.49 |
| 57 |
83R-7717E-00-00 |
TAPE 1 This part replaces 83R-7717F-00-00. Price: $5.49 |
| 58 |
8AT-2199G-01-00 |
BRACKET, BATTERY Price: $143.99 |
| 59 |
97017-06025-00 |
BOLT This part replaces 97022-06025-00. Price: $4.55 |
| 60 |
90201-06778-00 |
WASHER, PLATE Price: $4.80 |
| 61 |
90201-063A5-00 |
WASHER, PLATE Price: $10.49 |
| 62 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 63 |
90480-10348-00 |
GROMMET Price: $1.75 |
| 64 |
8KX-2471A-00-00 |
STAY, SEAT Price: $12.49 |
| 65 |
85R-2639F-00-00 |
HOLDER, 2 Price: $2.30 |
| 66 |
8AT-2196T-00-00 |
TRIM 1 Price: $50.99 |
| 67 |
8JD-2196T-00-00 |
TRIM 1 Price: $34.99 |
| 68 |
90267-40172-00 |
RIVET, BLIND (4X19) Price: $1.80 |
| 69 |
90201-042E0-00 |
WASHER, PLATE Price: $8.49 |
| 70 |
8AC-21933-00-00 |
REINFORCEMENT, FRAME REAR 2 Price: $98.99 |
| 71 |
90267-47186-00 |
RIVET, BLIND (4.7X16.4 BLACK) Price: $3.20 |
| 72 |
8JD-21926-00-00 |
REINFORCEMENT, FOOTREST 1 Price: $17.49 |
| 73 |
90267-48023-00 |
RIVET, BLIND (4.8X12.1 YELLOW) Price: $11.49 |
