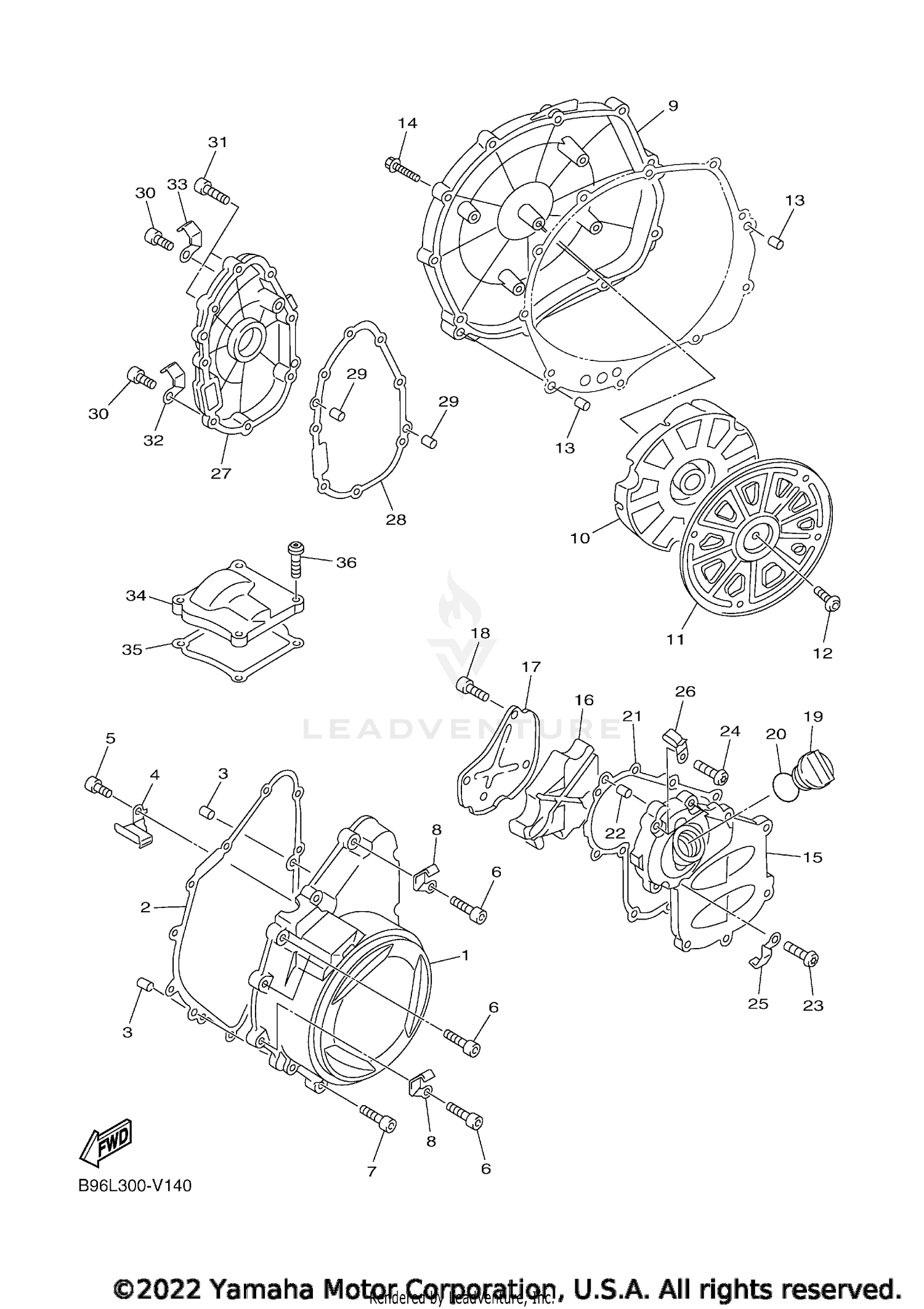

| Ref | Part Number | Description |
|---|
| 2 |
5JW-15451-11-00 |
GASKET, CRANKCASE COVER 1 Price: $33.99 |
| 3 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 4 |
5JW-15484-01-00 |
CLAMP 2 Price: $12.99 |
| 5 |
91317-06010-00 |
BOLT This part replaces 90110-06227-00. Price: $10.49 |
| 6 |
91314-06025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 7 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 8 |
90462-08045-00 |
CLAMP Price: $6.49 |
| 10 |
5JW-15326-01-00 |
DAMPER 2 This part replaces 5JW-15326-00-00. Price: $67.99 |
| 11 |
5JW-15492-00-00 |
COVER Price: $42.99 |
| 12 |
92012-06014-00 |
BOLT, BUTTON HEAD This part replaces 90111-06064-00. Price: $9.49 |
| 13 |
93608-21002-00 |
PIN, DOWEL Price: $3.50 |
| 14 |
90110-06388-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 15 |
B88-15431-00-00 |
COVER, CRANKCASE 3 Price: $90.99 |
| 16 |
5JW-15316-00-00 |
DAMPER 1 Price: $39.99 |
| 17 |
5JW-15414-00-00 |
COVER, AIR CLEANER Price: $14.49 |
| 18 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 19 |
BAT-15362-00-00 |
PLUG, OIL LEVEL This part replaces 3F9-15362-10-00. Price: $21.99 |
| 20 |
93210-27778-00 |
O-RING This part replaces 93210-27194-00. Price: $9.49 |
| 21 |
5JW-15462-11-00 |
GASKET, CRANKCASE COVER 3 Price: $12.99 |
| 22 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 23 |
90149-06149-00 |
SCREW Price: $5.49 |
| 24 |
90149-06149-00 |
SCREW This part replaces 90149-06147-00. Price: $5.49 |
| 25 |
90462-08045-00 |
CLAMP Price: $6.49 |
| 26 |
90465-08277-00 |
CLAMP This part replaces 90465-08122-00. Price: $12.49 |
| 28 |
5JW-15456-11-00 |
GASKET, OIL PUMP COVER 1 Price: $25.99 |
| 29 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 30 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 31 |
91314-06025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 32 |
90462-08045-00 |
CLAMP Price: $6.49 |
| 33 |
90465-08050-00 |
CLAMP Price: $4.85 |
| 34 |
1MC-15425-00-00 |
COVER, GENERATOR 2 Price: $12.49 |
| 35 |
5JW-15463-01-00 |
GASKET, COVER PINION 2 Price: $8.99 |
