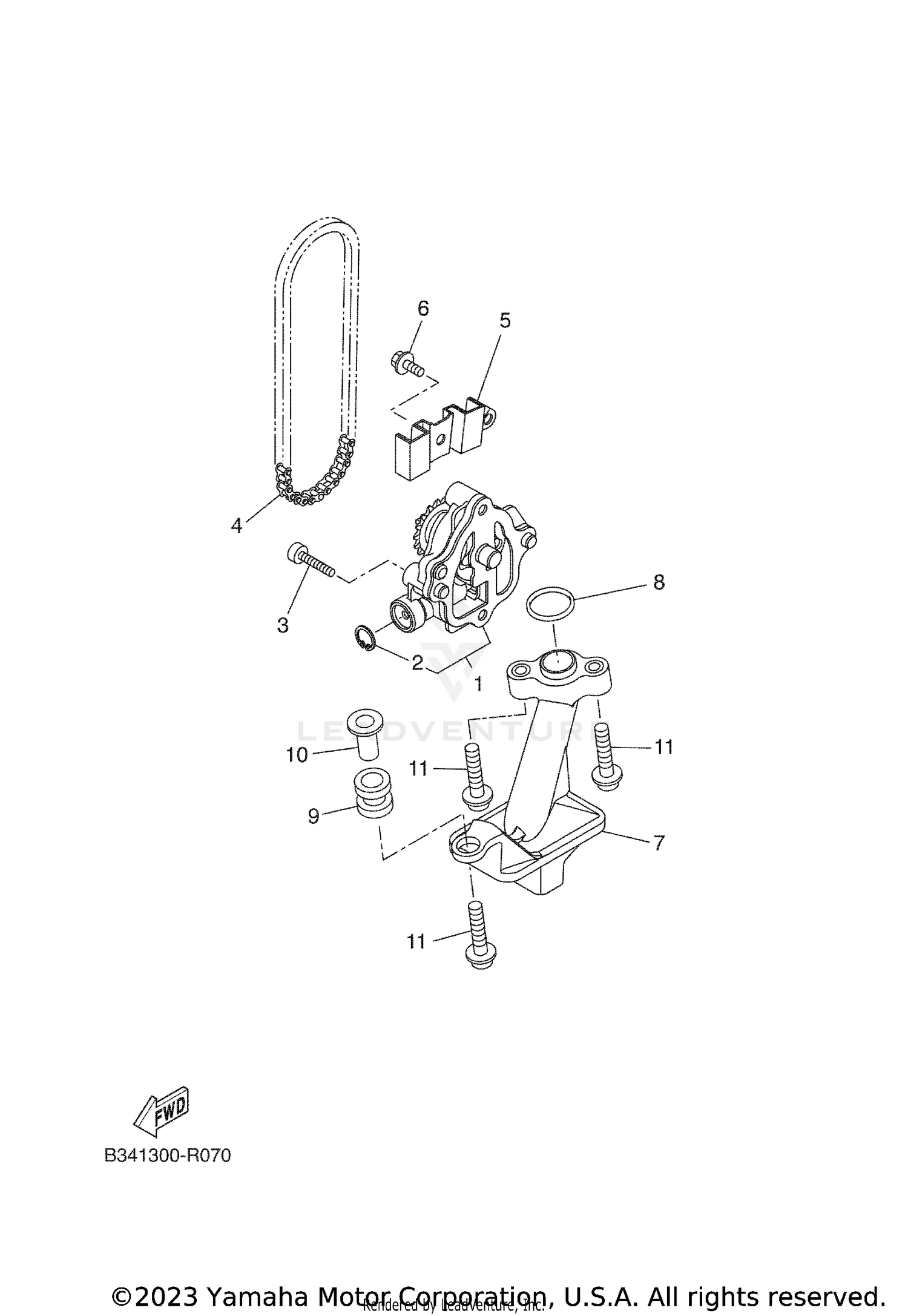

OIL PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WS-13300-00-00 | OIL PUMP ASSY Price: $143.99 |
| 2 | 99009-15500-00 | CIRCLIP Price: $11.49 |
| 3 | 95817-06040-00 | BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 4 | 94581-79060-00 | CHAIN (DID25H-66L) Price: $30.99 |
| 5 | 1WS-13898-00-00 | HOLDER Price: $53.99 |
| 6 | 91312-06014-00 | BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 7 | 1WS-13410-00-00 | STRAINER HOUSING ASSY Price: $51.99 |
| 8 | 93210-20802-00 | O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 9 | 90480-13010-00 | GROMMET Price: $8.49 |
| 10 | 5VY-13117-10-00 | COLLAR, DISTANCE Price: $9.49 |
