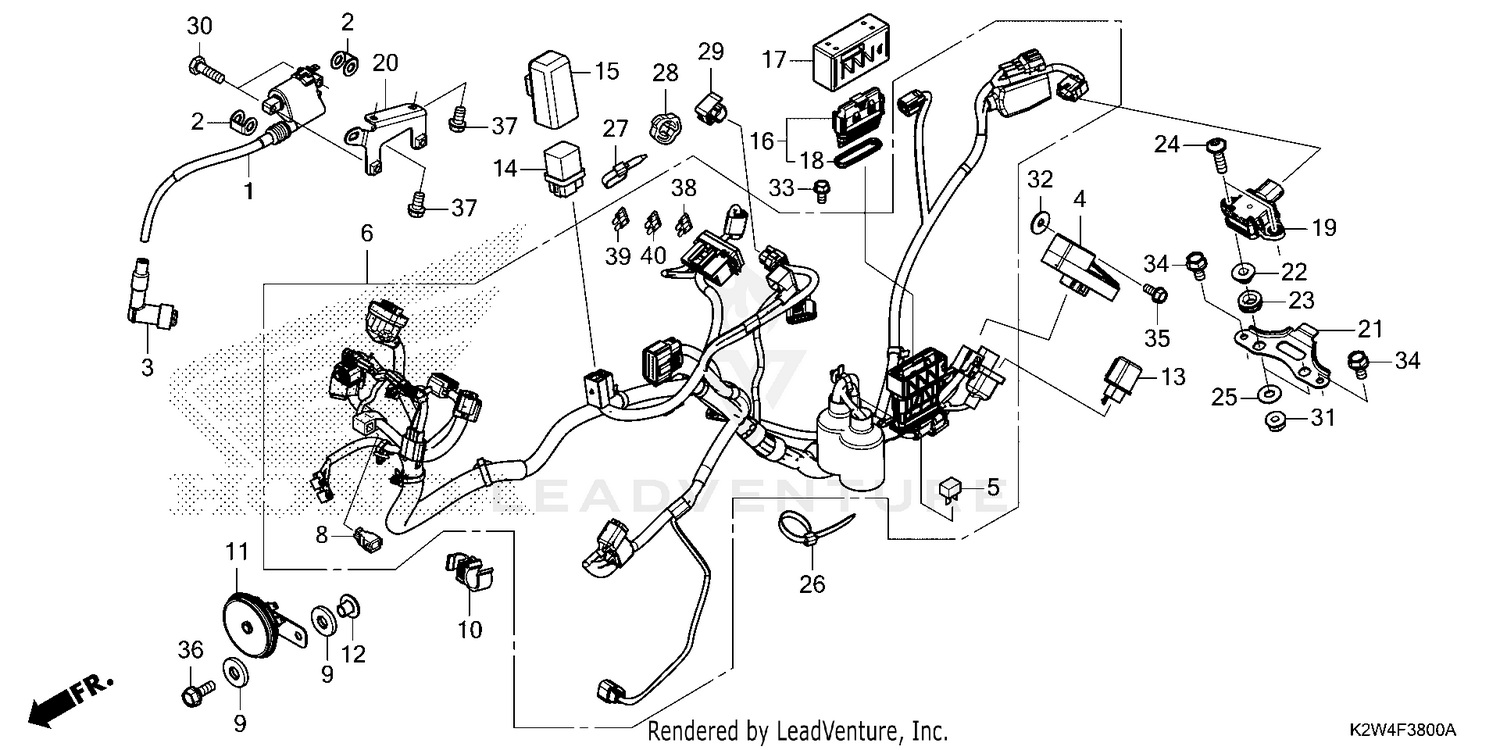

| Ref | Part Number | Description |
|---|
| 1 |
30510-K2W-T01 |
COIL, IGNITION Price: $21.29 |
| 2 |
30520-GFM-900 |
SPACER, IGNITION COIL Price: $2.98 |
| 3 |
30700-K2F-T01 |
CAP ASSY., NOISE SUPPRESSOR Price: $12.38 |
| 4 |
31600-K1M-K31 |
RECTIFIER, REGULATE Price: $78.16 |
| 5 |
31700-124-008 |
RECTIFIER ASSY., SILICON (SHINDENGEN) Price: $36.00 |
| 6 |
32100-K2W-A21 |
WIRE HARNESS Price: $426.55 |
| 8 |
32605-KCW-J91 |
CAP, DUMMY (2P) (BLUE) Price: $5.84 |
| 9 |
33714-KL3-620 |
RUBBER, TAILLIGHT BRACKET Price: $2.87 |
| 10 |
37814-K2W-T01 |
CLAMP, THERMO SENSOR Price: $0.96 |
| 11 |
38110-K0F-T61 |
HORN Price: $25.40 |
| 12 |
38117-KPH-880 |
COLLAR, HORN SETTING Price: $1.04 |
| 13 |
38301-KZZ-J01 |
RELAY, TURN SIGNAL Price: $64.98 |
| 14 |
38501-KVB-901 |
RELAY, STARTER (HONDALOCK) Price: $24.51 |
| 15 |
38506-KWW-711 |
SUSPENSION, STARTER RELAY (HONDALOCK) Price: $4.88 |
| 16 |
38770-K2W-A21 |
PGM-FI UNIT Price: $92.40 |
| 17 |
38771-K76-T60 |
SUSPENSION, ENGINE CONTROL UNIT Price: $3.40 |
| 18 |
38775-K76-T61 |
SEAL, RING Price: $182.95 |
| 19 |
39960-K26-G51 |
SENSOR ASSY., GYRO Price: $482.36 |
| 20 |
50140-K2W-J10 |
STAY, IGNITION COIL Price: $9.91 |
| 21 |
50246-K2W-J10 |
STAY Price: $17.18 |
| 22 |
50249-K26-C10 |
COLLAR (6.2X5) Price: $1.45 |
| 23 |
64535-K26-C11 |
RUBBER, SENSOR MOUNTING Price: $14.15 |
| 24 |
90103-K26-G80 |
BOLT, TORX (6X22) Price: $1.20 |
| 25 |
90439-MB0-000 |
WASHER, RR. COVER GROMMET (FOR FR.) Price: $1.96 |
| 26 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 27 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 28 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 29 |
91771-MKG-D81 |
CONNECTOR, DUMMY (6P 025M) Price: $9.73 |
| 30 |
92101-06020-4J |
BOLT, HEX. (6X20) Price: $1.58 |
| 31 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 32 |
94103-06800 |
WASHER, PLAIN (6MM) Price: $0.82 |
| 33 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 34 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 35 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 36 |
95701-06016-07 |
BOLT, FLANGE (6X16) Price: $1.70 |
| 37 |
96001-06010-07 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 38 |
98200-40500 |
FUSE, MINI (5A) (Honda Code 5026521) Price: $1.38 |
| 39 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
