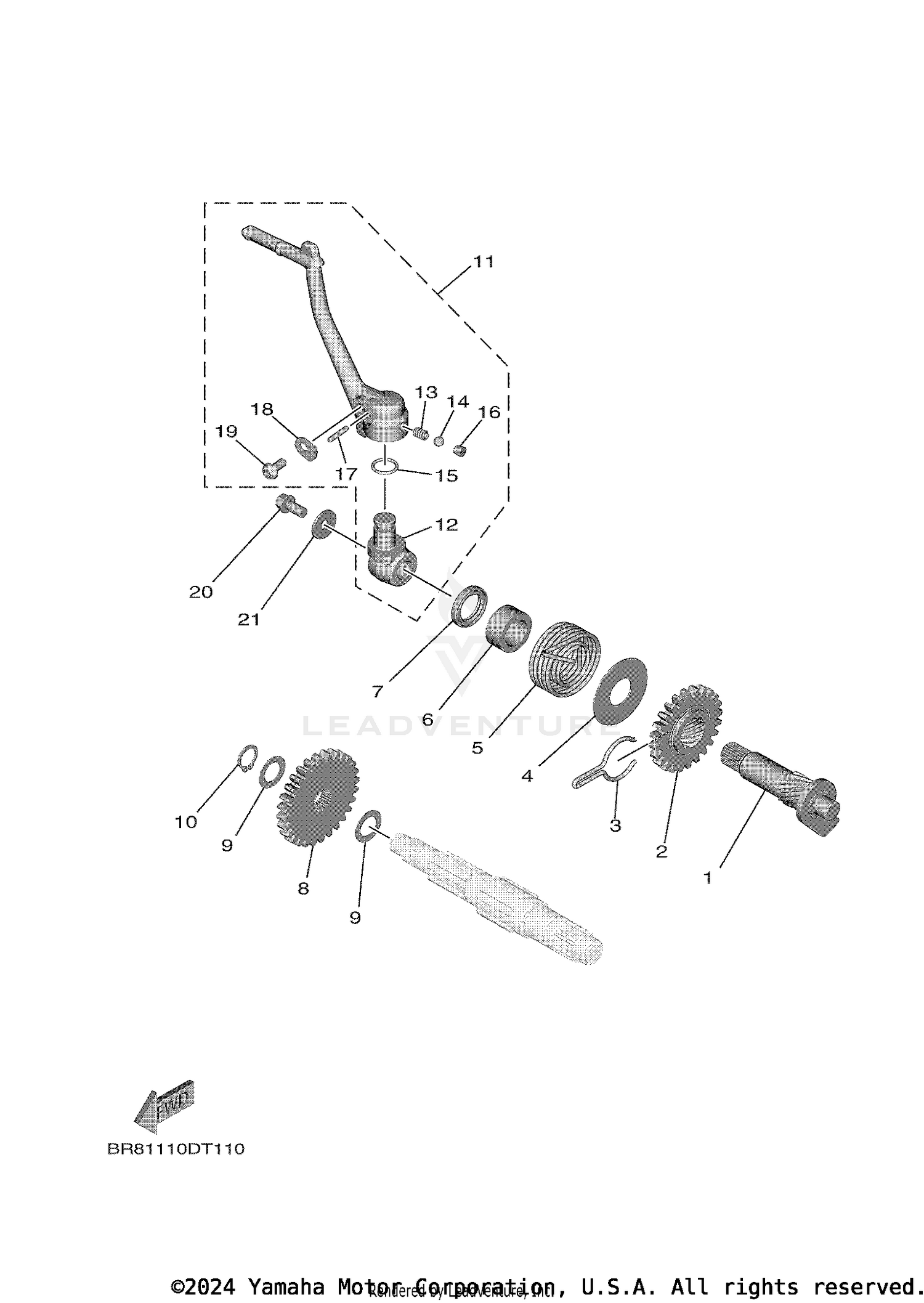

| Ref | Part Number | Description |
|---|
| 1 |
5PA-15660-00-00 |
KICK AXLE ASSY Price: $112.99 |
| 2 |
5PA-15641-00-00 |
GEAR, KICK Price: $84.99 |
| 3 |
90468-23194-00 |
CLIP Price: $10.49 |
| 4 |
90201-176L4-00 |
WASHER, PLATE Price: $10.49 |
| 5 |
90508-26750-00 |
SPRING, TORSION Price: $13.49 |
| 6 |
4ES-15664-00-00 |
GUIDE, SPRING Price: $33.99 |
| 7 |
93102-17263-00 |
OIL SEAL Price: $11.49 |
| 8 |
5PA-15651-00-00 |
GEAR, KICK IDLE Price: $79.99 |
| 9 |
90201-124F8-00 |
WASHER, PLATE Price: $10.49 |
| 10 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 11 |
BR8-15620-00-00 |
KICK CRANK ASSY Price: $142.99 |
| 12 |
BR8-15621-00-00 |
BOSS, KICK CRANK Price: $62.99 |
| 13 |
90501-12081-00 |
SPRING, BOSS STOPPER Price: $9.49 |
| 14 |
93507-32031-00 |
BALL This part replaces 93507-32009-00. Price: $5.49 |
| 15 |
93210-12152-00 |
O-RING Price: $8.49 |
| 16 |
90336-06031-00 |
PLUG, TAPER Price: $6.49 |
| 17 |
93603-16219-00 |
PIN, DOWEL Price: $9.49 |
| 18 |
4JY-11915-10-00 |
PLATE, THRUST 1 Price: $8.49 |
| 19 |
90111-05053-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-05052-00. Price: $1.45 |
| 20 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
