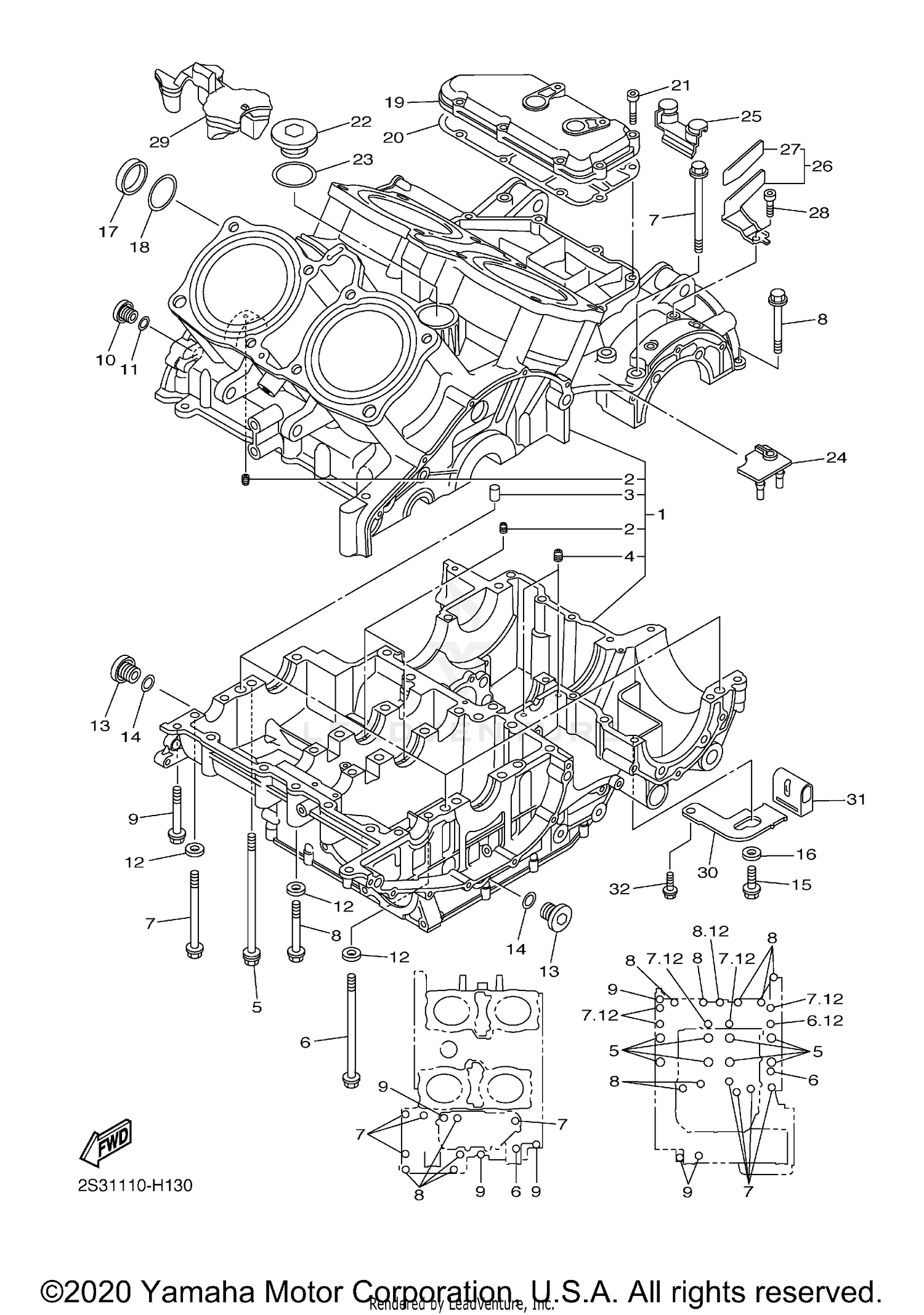

| Ref | Part Number | Description |
|---|
| 2 |
4KM-13572-01-00 |
NOZZLE This part replaces 4H7-15138-00-00. Price: $7.99 |
| 3 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 4 |
2S3-15148-00-00 |
NOZZLE 2 Price: $6.49 |
| 5 |
90119-10035-00 |
BOLT, WITH WASHER Price: $12.49 |
| 6 |
95814-08110-00 |
BOLT, FLANGE This part replaces 95812-08110-00. Price: $8.49 |
| 7 |
95812-08090-00 |
BOLT, FLANGE Price: $3.85 |
| 8 |
95814-08065-00 |
BOLT, FLANGE This part replaces 95812-08065-00. Price: $5.49 |
| 9 |
95812-06065-00 |
BOLT, FLANGE Price: $6.49 |
| 10 |
90340-14011-00 |
PLUG, STRAIGHT SCREW Price: $24.99 |
| 11 |
93210-14369-00 |
O-RING Price: $8.49 |
| 12 |
90201-08649-00 |
WASHER, PLATE This part replaces 90201-08093-00. Price: $10.49 |
| 13 |
4H7-15189-00-00 |
PLUG Price: $33.99 |
| 14 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 15 |
95022-08016-00 |
BOLT, FLANGE Price: $0.85 |
| 16 |
90430-08119-00 |
GASKET Price: $7.49 |
| 17 |
2S3-12564-00-00 |
PIPE, WATER Price: $14.49 |
| 18 |
93210-34633-00 |
O-RING (2HF) This part replaces 93210-34504-00. Price: $10.49 |
| 19 |
2S3-15413-00-00 |
COVER Price: $126.99 |
| 20 |
2S3-15463-00-00 |
GASKET, COVER PINION 2 Price: $8.49 |
| 21 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 22 |
90340-36003-00 |
PLUG, STRAIGHT SCREW Price: $28.99 |
| 23 |
93210-35001-00 |
O-RING Price: $3.80 |
| 24 |
2S3-15416-00-00 |
COVER, OIL PUMP Price: $8.99 |
| 25 |
2S3-15486-00-00 |
GROMMET Price: $10.49 |
| 26 |
2S3-81328-01-00 |
CLAMP Price: $17.49 |
| 27 |
2S3-1471P-00-00 |
SEAT, 6 Price: $1.60 |
| 28 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 29 |
2S3-15428-00-00 |
COVER, CHAIN CASE 2 Price: $46.99 |
| 30 |
2S3-21329-00-00 |
PLATE Price: $7.49 |
| 31 |
2S3-2139X-00-00 |
DAMPER Price: $38.99 |
