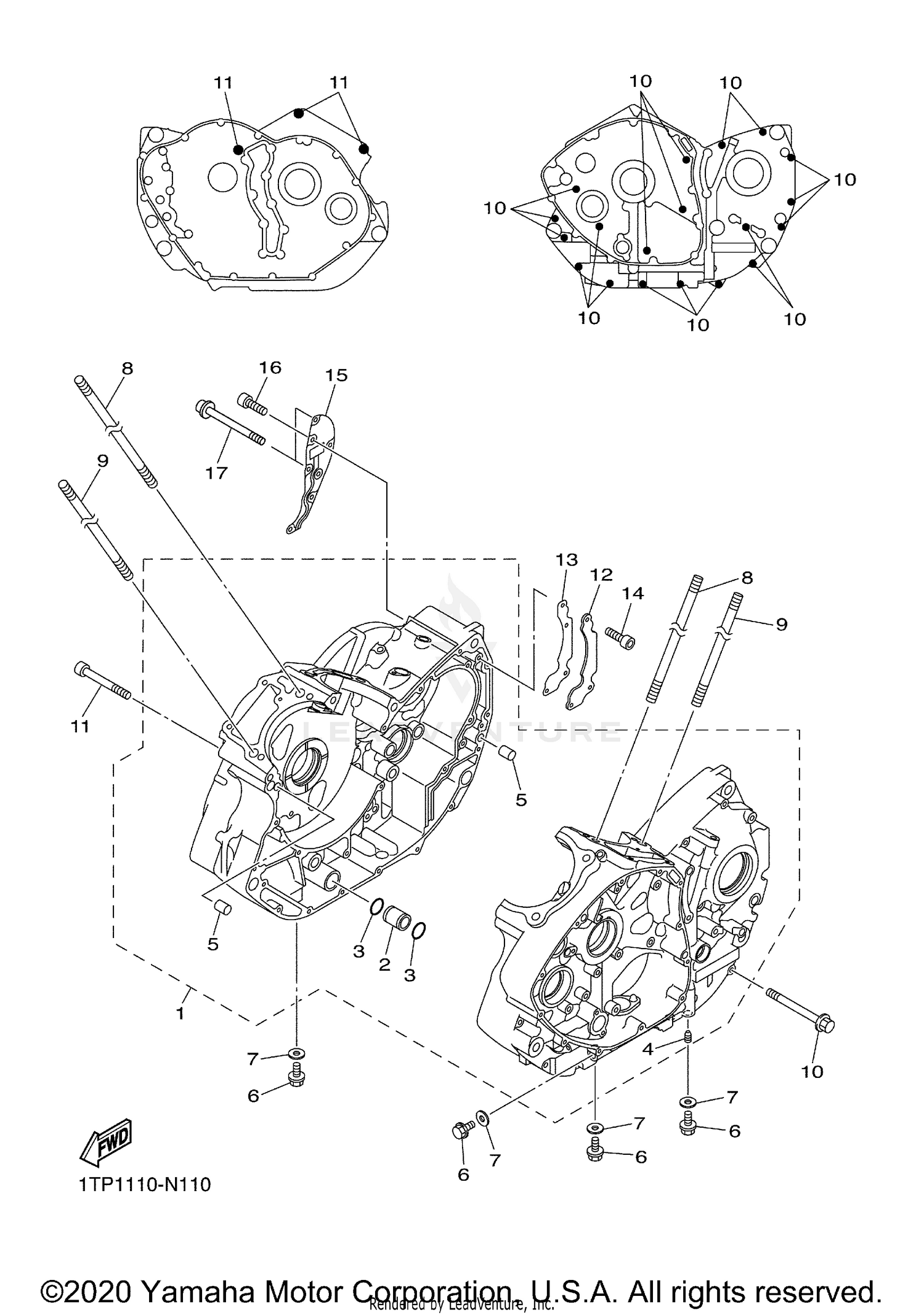

| Ref | Part Number | Description |
|---|
| 2 |
3D8-15154-00-00 |
NOZZLE ASSY., 2 Price: $21.99 |
| 3 |
93210-18319-00 |
O-RING Price: $10.49 |
| 4 |
2H7-15138-00-00 |
NOZZLE 1 Price: $4.85 |
| 5 |
99530-10116-00 |
PIN, DOWEL Price: $4.40 |
| 6 |
95022-10016-00 |
BOLT, FLANGE Price: $9.49 |
| 7 |
90430-10171-00 |
BOLT, UNION Price: $3.45 |
| 8 |
90116-12012-00 |
BOLT, STUD Price: $17.49 |
| 9 |
90116-12011-00 |
BOLT, STUD Price: $16.49 |
| 10 |
90105-06144-00 |
BOLT, FLANGE Price: $2.60 |
| 11 |
91314-10110-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-10030-00. Price: $8.99 |
| 12 |
3D8-15358-00-00 |
SEPARATOR, OIL Price: $4.60 |
| 13 |
3D8-15353-00-00 |
GASKET, DRAIN Price: $5.99 |
| 14 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 15 |
3D8-15368-00-00 |
SEPERATOR, OIL Price: $46.99 |
| 16 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
