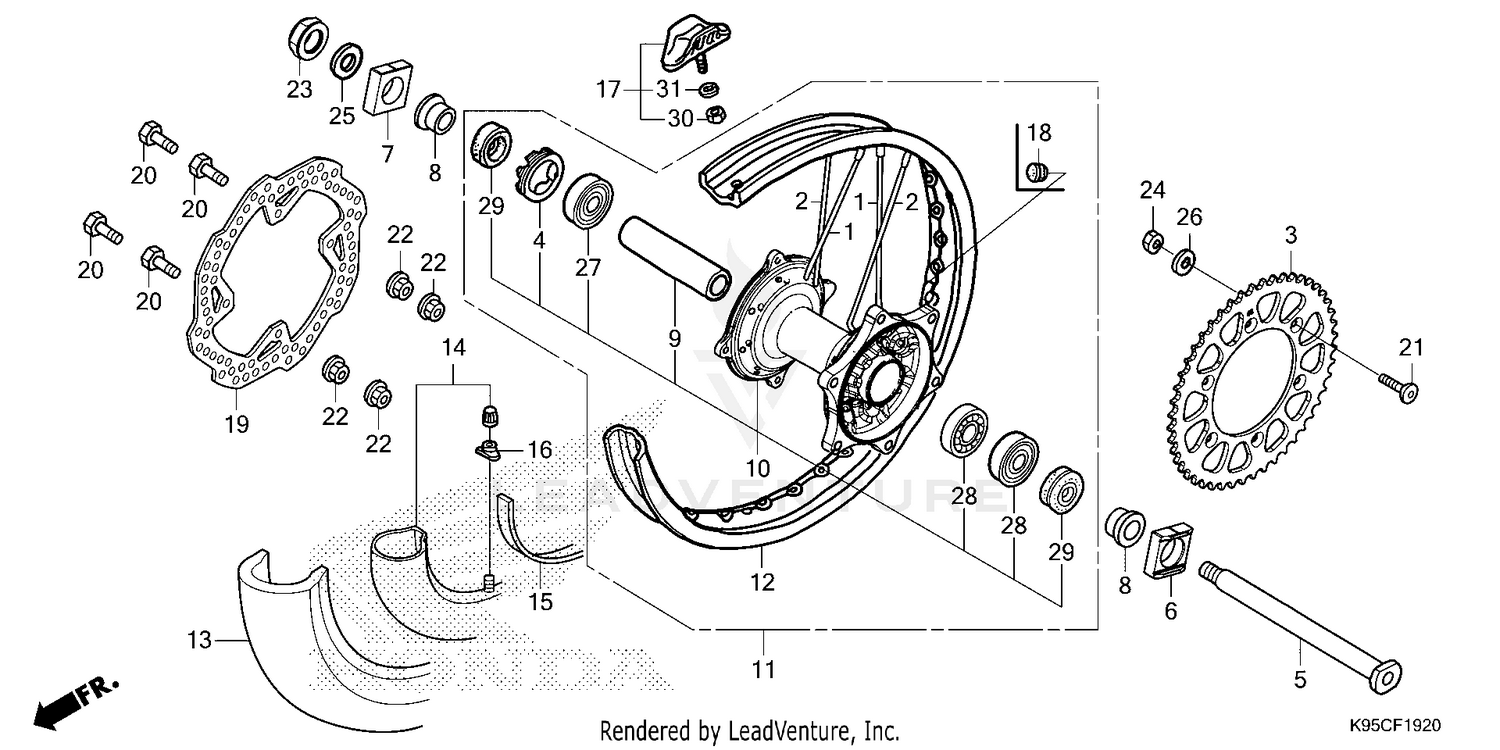

| Ref | Part Number | Description |
|---|
| 1 |
06420-MEY-000 |
SPOKE SET, RR. (INSIDE) Price: $6.11 |
| 2 |
06421-MEY-000 |
SPOKE SET, RR. (OUTSIDE) Price: $6.11 |
| 3 |
41203-MKE-A00 |
SPROCKET, FINAL DRIVEN (50T) Price: $155.87 |
| 4 |
41231-KZ4-J20 |
RETAINER, RR. WHEEL BEARING Price: $23.36 |
| 5 |
42301-KRN-A30 |
AXLE, RR. WHEEL Price: $56.96 |
| 6 |
42305-MKE-A50 |
COLLAR, L. RR. AXLE Price: $25.91 |
| 7 |
42306-KZ4-J20 |
COLLAR, R. RR. AXLE Price: $23.36 |
| 8 |
42311-MKE-A60 |
COLLAR, RR. WHEEL SIDE Price: $32.87 |
| 9 |
42620-MKE-A60 |
COLLAR, RR. WHEEL DISTANCE Price: $32.82 |
| 10 |
42635-MKE-AF0 |
HUB SUB-ASSY., RR. Price: $487.80 |
| 11 |
42650-MKE-AG0 |
WHEEL SUB-ASSY., RR. Price: $940.15 |
| 12 |
42701-MKE-AG1 |
RIM, RR. WHEEL (18X2.15) Price: $312.16 |
| 13 |
42711-K95-A52 |
TIRE (110/100-18 64M Price: $182.56 |
| 14 |
42712-KT1-673 |
TUBE, TIRE This part replaces 42712-KS7-641. Price: $44.24 |
| 15 |
42713-300-004 |
FLAP, TIRE (1.85/2.15-18) (DUNLOP) Price: $7.71 |
| 16 |
42714-KA3-710 |
CAP, VALVE Price: $12.67 |
| 17 |
42715-MA0-770 |
STOPPER, BEAD (2.15) Price: $45.91 |
| 18 |
42717-329-000 |
CAP, RIM HOLE Price: $5.27 |
| 19 |
43351-K95-AG1 |
DISK, RR. BRAKE Price: $183.22 |
| 20 |
90105-MAC-680 |
BOLT, DISK (6X19) Price: $6.27 |
| 21 |
90125-MKE-AF0 |
SCREW, FLAT SOCKET Price: $4.42 |
| 22 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 23 |
90305-KZ4-J20 |
NUT, U (22MM) Price: $10.85 |
| 24 |
90309-MKE-AF1 |
NUT, U (8MM) Price: $3.38 |
| 25 |
90401-KZ4-J20 |
WASHER (22X35X2) Price: $3.29 |
| 26 |
90465-MC4-000 |
WASHER (8MM) Price: $2.87 |
| 27 |
91051-KZ4-J21 |
BEARING, RADIAL BALL (69052RS) Price: $22.33 |
| 28 |
91052-KZ4-J21 |
BEARING, RADIAL BALL (6905RS) Price: $21.04 |
| 29 |
91251-KZ4-J21 |
DUST SEAL (32X43X7) Price: $6.20 |
| 30 |
94001-08000-0S |
NUT, HEX. (8MM) Price: $1.37 |
