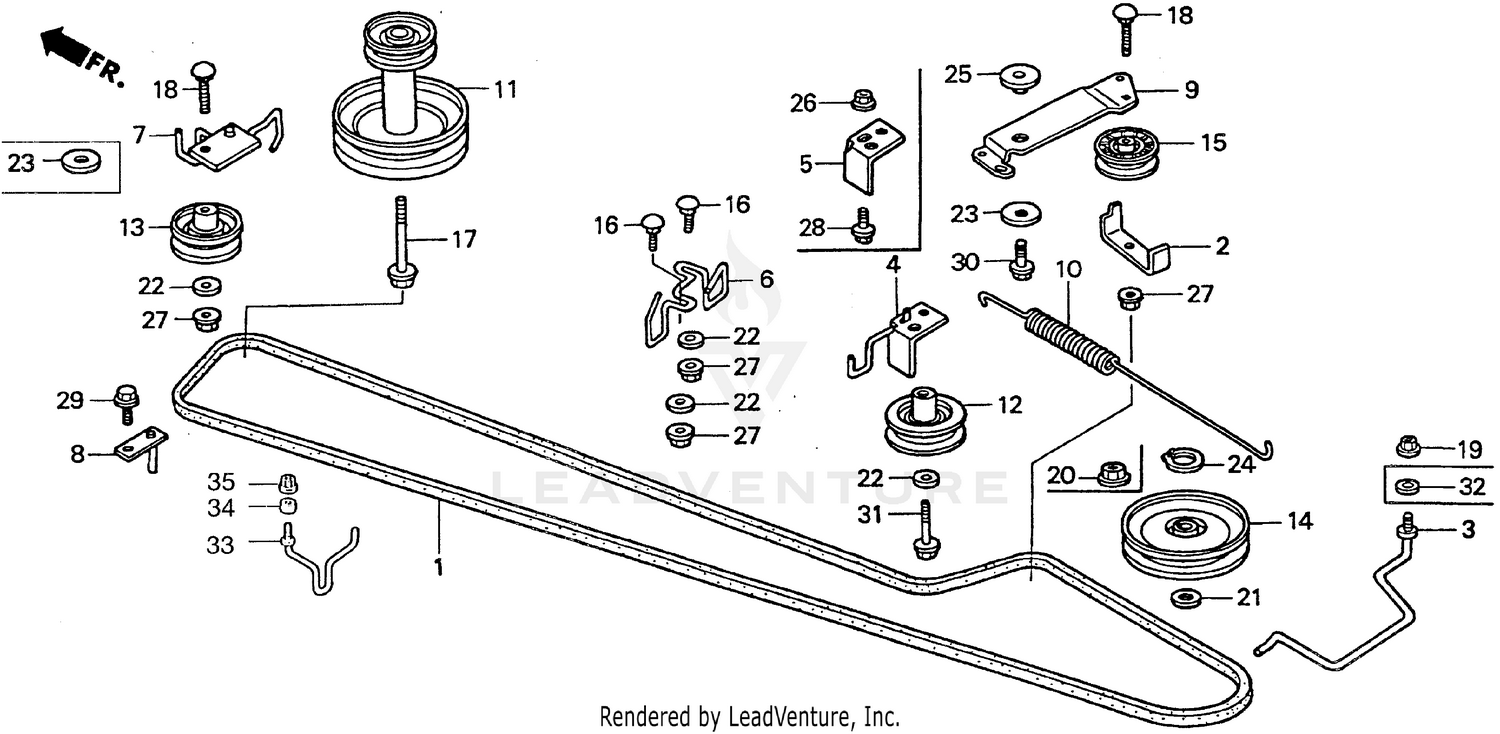

| Ref | Part Number | Description |
|---|
| 1 |
22431-771-003 |
V-BELT (A-102) Price: $73.72 |
| 2 |
22441-772-000 |
STOPPER A, BELT Price: $3.52 |
| 3 |
22442-771-010 |
STOPPER B, BELT Price: $63.82 |
| 4 |
22443-771-000 |
STOPPER C, BELT Price: $11.08 |
| 6 |
22444-771-000 |
STOPPER D, BELT Price: $204.60 |
| 7 |
22445-771-000 |
STOPPER E, BELT Price: $18.90 |
| 8 |
22446-771-000 |
STOPPER F, BELT Price: $119.32 |
| 9 |
22521-771-000 |
ARM, TENSIONER Price: Call Us |
| 10 |
22531-771-000 |
SPRING, BELT TENSIONER Price: $62.30 |
| 11 |
75170-771-000 |
PULLEY, ENGINE Price: $92.42 |
| 12 |
75560-771-000 |
ROLLER A, TENSIONER Price: $45.78 |
| 13 |
75565-771-000 |
ROLLER B, TENSIONER Price: $62.26 |
| 14 |
76215-771-010 |
SEE PART DETAILS - PRI; PULLEY ASSY., TRANSMISSION Price: $177.42 |
| 15 |
76245-772-000 |
ROLLER, TENSION Price: $24.48 |
| 16 |
90101-750-920 |
BOLT, SPECIAL (8X20) Price: $3.04 |
| 17 |
90103-772-000 |
BOLT, FLANGE (7/16") Price: Call Us |
| 18 |
90134-VE2-000 |
BOLT, PAN (8X50) Price: $0.54 |
| 19 |
90302-SH3-003 |
NUT, FLANGE (8MM) Price: $0.84 |
| 22 |
90430-657-000 |
WASHER (8MM) (Honda Code 0612077). Price: $8.82 |
| 23 |
90501-771-000 |
WASHER (8.5X42X3) Price: $1.54 |
| 24 |
90653-772-000 |
CIRCLIP, EX. (5/8") Price: $0.26 |
| 25 |
91552-771-000 |
COLLAR, TENSIONER ARM Price: $3.88 |
| 27 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 29 |
95701-08016-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767). Price: $2.20 |
| 30 |
95701-08025-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) Price: $0.92 |
| 31 |
95701-08060-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526). Price: $3.08 |
| 32 |
94101-08800 |
SEE PART DETAILS - SUP; WASHER, PLAIN (8MM) Price: $2.36 |
| 33 |
22451-771-000 |
GUIDE, BELT Price: $7.46 |
| 34 |
91551-VG3-000 |
COLLAR, FR. ADJUSTING Price: $9.32 |
