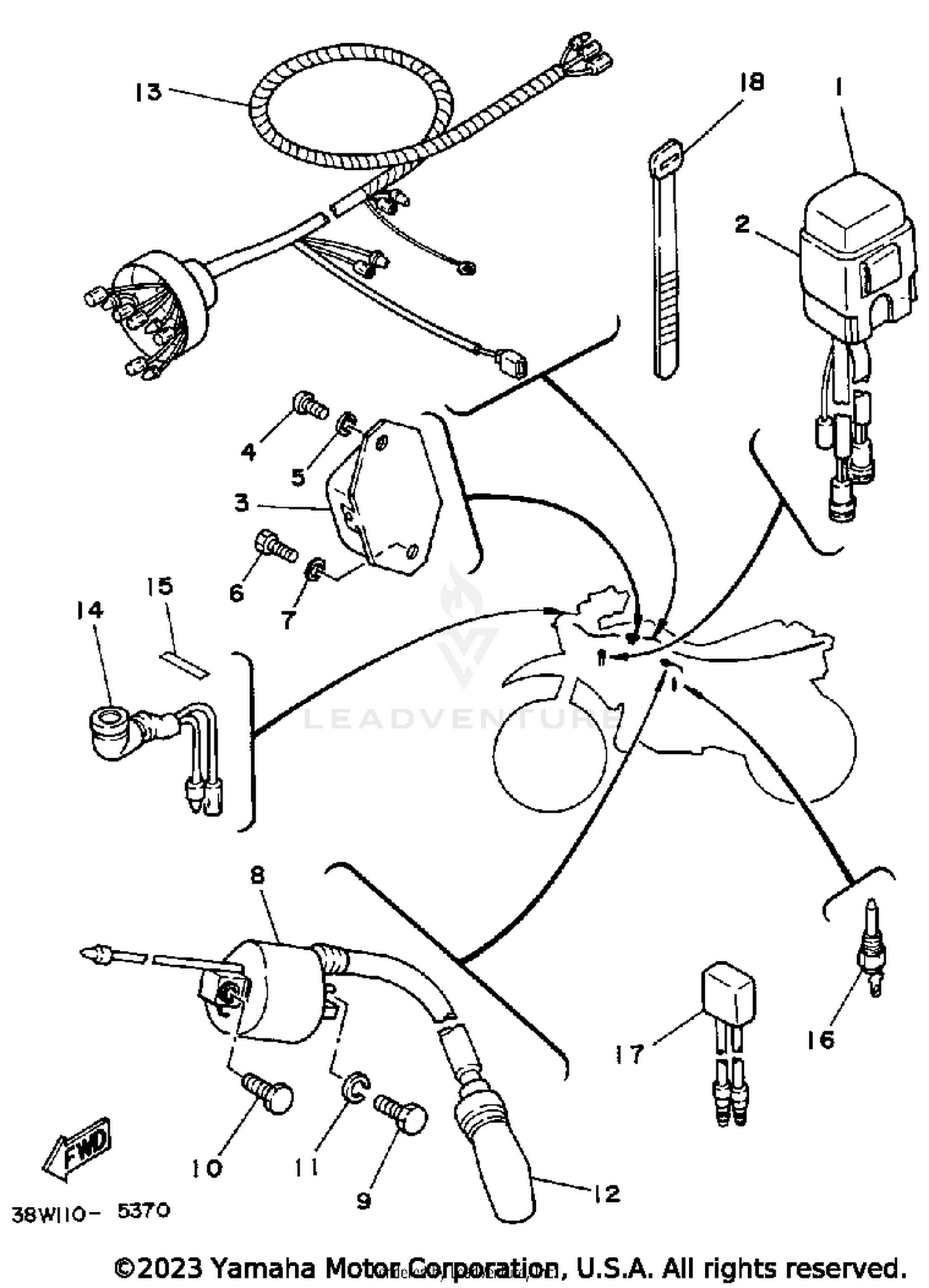

ELECTRICAL 1
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38W-85540-20-00 | CDI UNIT ASY Price: $342.99 |
| 2 | 2A7-85546-00-00 | BAND Price: $25.99 |
| 3 | Y06-03963-00-00 | VOLTAGEREGULATORASSY This part replaces 82F-81910-A0-00. Price: $59.99 |
| 4 | 90153-06034-00 | SCREW, HEXAGON Price: $8.49 |
| 5 | 90201-061A5-00 | WASHER, PLATE Price: $8.49 |
| 6 | 97013-06012-00 | BOLT (661) Price: $6.49 |
| 7 | 90201-061A5-00 | WASHER, PLATE Price: $8.49 |
| 8 | 3SR-82310-10-00 | IGNITION COIL ASSY This part replaces 38W-82310-40-00. Price: $149.99 |
| 9 | 90109-06723-00 | BOLT Price: $9.49 |
| 10 | 97024-06020-00 | BOLT This part replaces 97023-06020-00. Price: $9.49 |
| 11 | 92995-06100-00 | WASHER, PAN HEAD Price: $3.45 |
| 13 | 38W-82590-00-00 | WIRE HARNESS ASSEMBLY Price: $72.99 |
| 14 | 123-83516-21-XX | BULB (12V-3.4W) This part replaces 123-83516-21-00. Price: $4.75 |
| 14 | 52G-83530-10-00 | PILOT LIGHT ASSY This part replaces 52G-83530-00-00. Price: $36.99 |
| 15 | 38W-83585-00-00 | LABEL Price: $3.85 |
| 16 | 38W-82560-00-00 | OIL LVL SWITCH ASSEMBLYASSY Price: $86.82 |
| 17 | 38W-85774-00-00 | CHECKER, PILOT LAMP Price: $46.99 |
