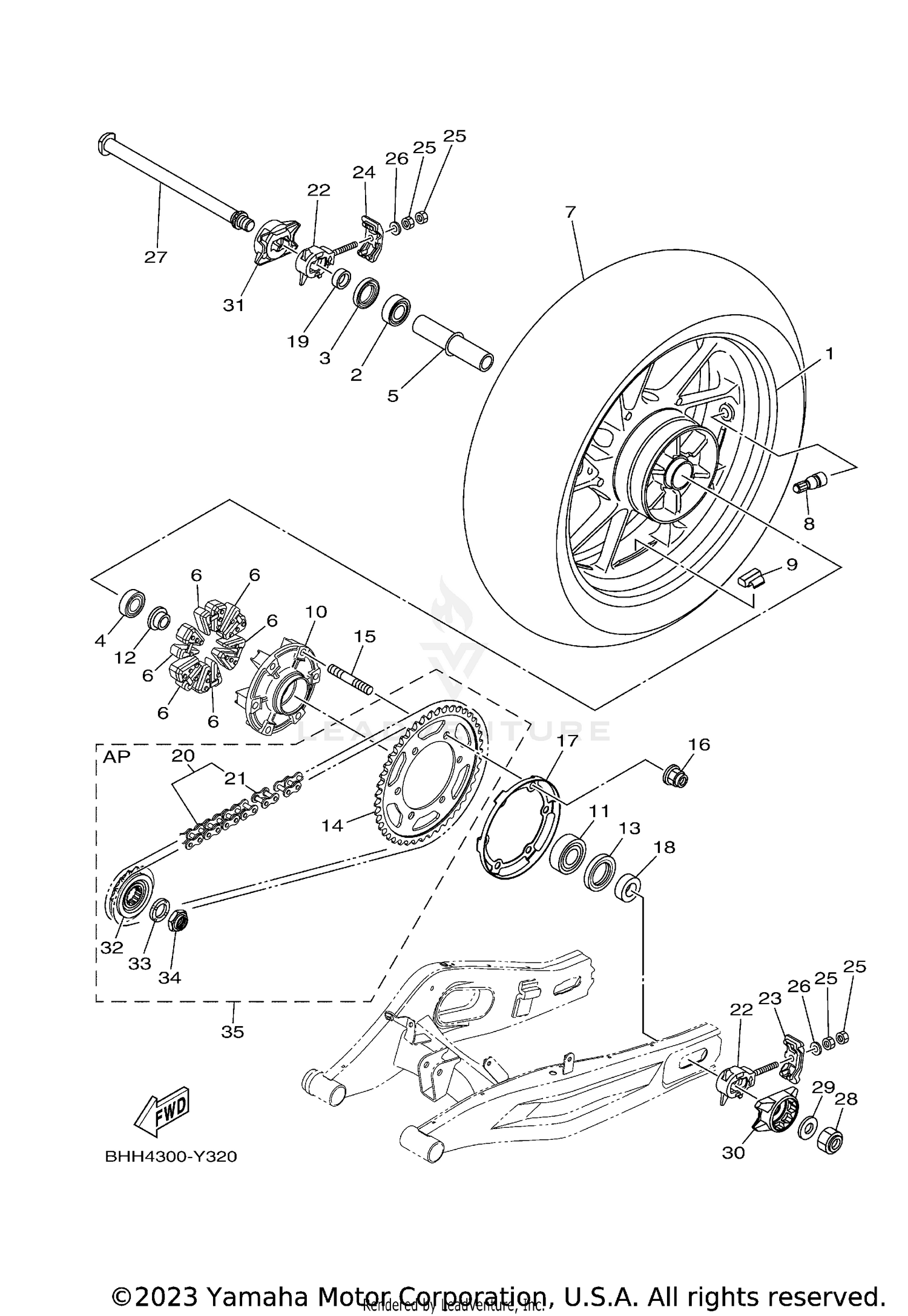

| Ref | Part Number | Description |
|---|
| 2 |
93306-20480-00 |
BEARING Price: $48.99 |
| 3 |
93102-28022-00 |
OIL SEAL Price: $16.49 |
| 4 |
93306-00444-00 |
BEARING This part replaces 93306-00416-00. Price: $45.99 |
| 5 |
2PP-25317-00-00 |
SPACER, BEARING Price: $24.99 |
| 6 |
5SL-25364-00-00 |
DAMPER Price: $45.99 |
| 10 |
5JJ-25366-00-00 |
CLUTCH, HUB Price: $503.99 |
| 11 |
93306-205B5-00 |
BEARING Price: $45.99 |
| 12 |
1RC-25383-00-00 |
COLLAR, WHEEL Price: $35.99 |
| 13 |
93106-40013-00 |
OIL SEAL Price: $16.49 |
| 14 |
1WS-25443-00-00 |
SPROCKET, DRIVEN (43T) Price: $101.99 |
| 15 |
90116-10048-00 |
BOLT, STUD Price: $29.99 |
| 16 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 17 |
1RC-2537W-01-00 |
BRACKET 1 Price: $18.99 |
| 18 |
90387-20036-00 |
COLLAR Price: $26.99 |
| 19 |
90387-20035-00 |
COLLAR Price: $17.49 |
| 20 |
94A40-21108-00 |
CHAIN Price: $204.99 |
| 21 |
94682-5502R-00 |
JOINT, CHAIN Price: $11.49 |
| 22 |
1WS-25388-00-00 |
PULLER, CHAIN 1 Price: $25.99 |
| 23 |
1WS-22174-00-00 |
END 1 Price: $35.99 |
| 24 |
1WS-22175-00-00 |
END 1 Price: $28.99 |
| 25 |
95302-08600-00 |
NUT, HEXAGON Price: $10.49 |
| 26 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 27 |
4FN-22141-00-00 |
SHAFT, PIVOT Price: $109.99 |
| 28 |
90185-18009-00 |
NUT, SELF-LOCKING Price: $20.99 |
| 29 |
90201-18021-00 |
WASHER, PLATE Price: $6.49 |
| 30 |
1WS-2538D-00-00 |
COVER, REAR AXLE 1 Price: $43.99 |
| 31 |
1WS-2538N-00-00 |
COVER, REAR AXLE 2 Price: $43.99 |
| 32 |
1WS-17460-00-00 |
SPROCKET, DRIVE (16T) Price: $54.99 |
| 33 |
90208-22002-00 |
WASHER, CONICAL SPRING Price: $22.99 |
| 34 |
90179-22018-00 |
NUT Price: $31.99 |
