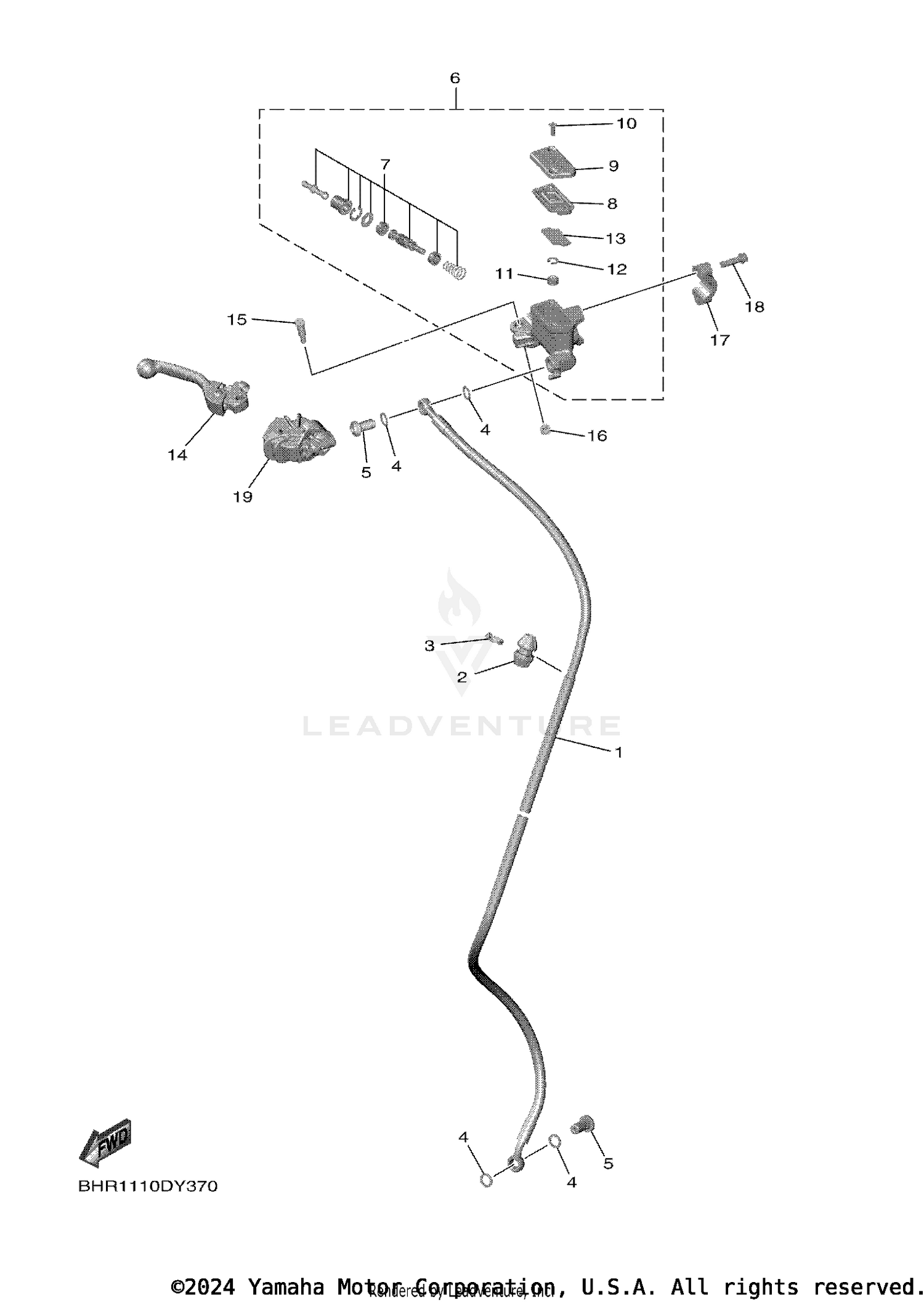

| Ref | Part Number | Description |
|---|
| 1 |
BHR-25872-00-00 |
HOSE, BRAKE 1 Price: $240.99 |
| 2 |
BHR-25881-00-00 |
PROTECTOR, BRAKE HOSE Price: $9.49 |
| 3 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 4 |
90430-10005-00 |
GASKET Price: $9.49 |
| 5 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 6 |
5XC-W2587-00-00 |
MASTER CYLINDER SUB ASSY Price: $320.99 |
| 7 |
5XC-W0041-00-00 |
CYLINDER KIT, MASTER Price: $66.99 |
| 8 |
5XC-25854-G0-00 |
DIAPHRAGM, RESERVOIR Price: $14.49 |
| 9 |
5XC-25852-G0-00 |
CAP, RESERVOIR Price: $25.99 |
| 10 |
98707-04012-00 |
SCREW, FLAT HEAD Price: $1.85 |
| 11 |
5CG-25715-00-00 |
SEPARATOR ASSY Price: $14.49 |
| 12 |
5CG-2585G-00-00 |
CIRCLIP Price: $5.99 |
| 13 |
5XC-25853-G0-00 |
FLOAT, RESERVOIR Price: $5.99 |
| 14 |
B2W-83922-00-00 |
LEVER 2 Price: $46.99 |
| 15 |
5MV-2589F-00-00 |
BOLT, LEVER Price: $7.49 |
| 16 |
95780-06500-00 |
NUT, FLANGE This part replaces 95701-06500-00. Price: $2.95 |
| 17 |
5MV-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $22.99 |
| 18 |
5MV-25833-00-00 |
BOLT, FITTING Price: $7.49 |
