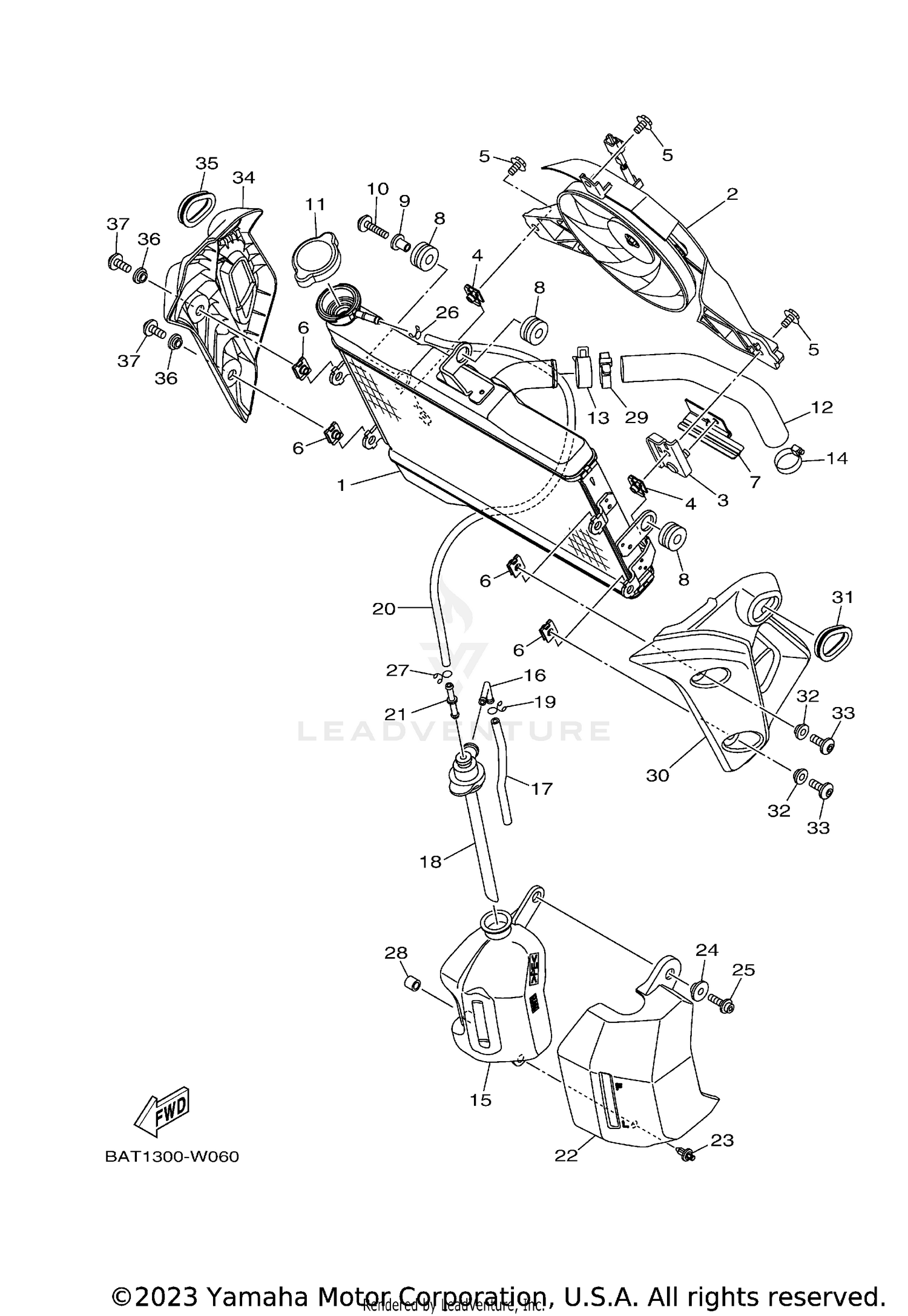

| Ref | Part Number | Description |
|---|
| 1 |
B4T-12461-00-00 |
RADIATOR COMP Price: $274.99 |
| 2 |
BW3-12405-00-00 |
BLOWER ASSY Price: $282.99 |
| 3 |
BW3-21343-00-00 |
BRACKET, HORN Price: $16.49 |
| 4 |
1WS-12671-00-00 |
NUT 1 Price: $3.75 |
| 5 |
2S3-12675-00-00 |
BOLT, BLOWER HOLDING Price: $7.49 |
| 6 |
1WS-12671-00-00 |
NUT 1 Price: $3.75 |
| 7 |
BAT-83378-00-00 |
STAY, HORN Price: $6.49 |
| 8 |
90480-15363-00 |
GROMMET Price: $9.49 |
| 9 |
90387-07391-00 |
COLLAR Price: $10.49 |
| 10 |
90111-06156-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.85 |
| 11 |
5SL-12462-01-00 |
CAP, RADIATOR This part replaces 5SL-12462-00-00. Price: $35.99 |
| 12 |
1WS-12578-00-00 |
HOSE 3 Price: $38.99 |
| 13 |
90467-290A0-00 |
CLIP Price: $18.49 |
| 14 |
90450-35001-00 |
HOSE CLAMP ASSY Price: $6.49 |
| 15 |
1WS-21871-01-00 |
TANK, RECOVERY Price: $33.99 |
| 16 |
26H-21828-00-00 |
ELBOW Price: $30.99 |
| 17 |
90445-08035-00 |
HOSE This part replaces 90445-08020-00. Price: $13.49 |
| 18 |
3P6-21875-00-00 |
CAP Price: $10.49 |
| 19 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 20 |
1WS-21816-00-00 |
PIPE 1 Price: $5.99 |
| 21 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 22 |
1WS-2172W-00-00 |
COVER Price: $12.99 |
| 23 |
90269-06008-00 |
RIVET Price: $9.49 |
| 24 |
90387-06024-00 |
COLLAR Price: $12.49 |
| 25 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 26 |
90467-08021-00 |
CLIP This part replaces 90467-08075-00. Price: $9.49 |
| 27 |
90467-08003-00 |
CLIP, SCISSOR Price: $11.49 |
| 28 |
90445-10064-00 |
HOSE Price: $1.10 |
| 29 |
90464-07M40-00 |
CLAMP Price: $18.49 |
| 30 |
BAT-21731-00-00 |
COVER, SIDE 3 Price: $13.49 |
| 31 |
B7N-83321-00-00 |
DAMPER, FLASHER 1 Price: $4.65 |
| 32 |
90387-06130-00 |
COLLAR Price: $10.49 |
| 33 |
90111-06151-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06161-00. Price: $3.45 |
| 34 |
BAT-21741-00-00 |
COVER, SIDE 4 Price: $13.49 |
| 35 |
B7N-83321-00-00 |
DAMPER, FLASHER 1 Price: $4.65 |
| 36 |
90387-06130-00 |
COLLAR Price: $10.49 |
